Before hooking-up to the mains supply, make sure that:
- the socket has a ground connection and complies with legal regulations;
- the socket is able to withstand the oven's maximum power capacity indicated on the features typeplate (see
below);
- The power supply voltage is within the values listed in the electrical characteristics label (see below);
- the socket is compatible with the appliance plug.
- If this is not the case, replace the socket or the plug. Do not use extension cords or multiple sockets.
- Once the appliance is installed, the electrical cable and the electrical power socket must be easy to reach.
- The cable must not be bent or compressed.
- The cable must be periodically checked and only replaced by authorized technicians.
- The Company declines all responsibility if these instructions are not adhered to.
Voltage and power supply frequency:
220-240 V~ 50/60 Hz
Replacement of the power cable:
If the power cable needs to be replaced, use cables of the following type only:
- H05 RR-F,
- H05 V2V2-F (T90),
- H05 VV-F,
suitable for the operating capacity and temperature. The green-yellow ground cable must be longer than the
other two conductors by approximately 2cm
INSTALLATION
Important:
any adjustments, maintenance, etc. must be executed with the oven disconnected from electricity.
To guarantee proper operation of the built-in appliance, the furniture unit must have suitable characteristics:
- the panels adjacent to the oven must be constructed in heat resistant materials;
- in the case of veneered wood furniture units, the glue must be heat resistant to temperatures up to 100°C;

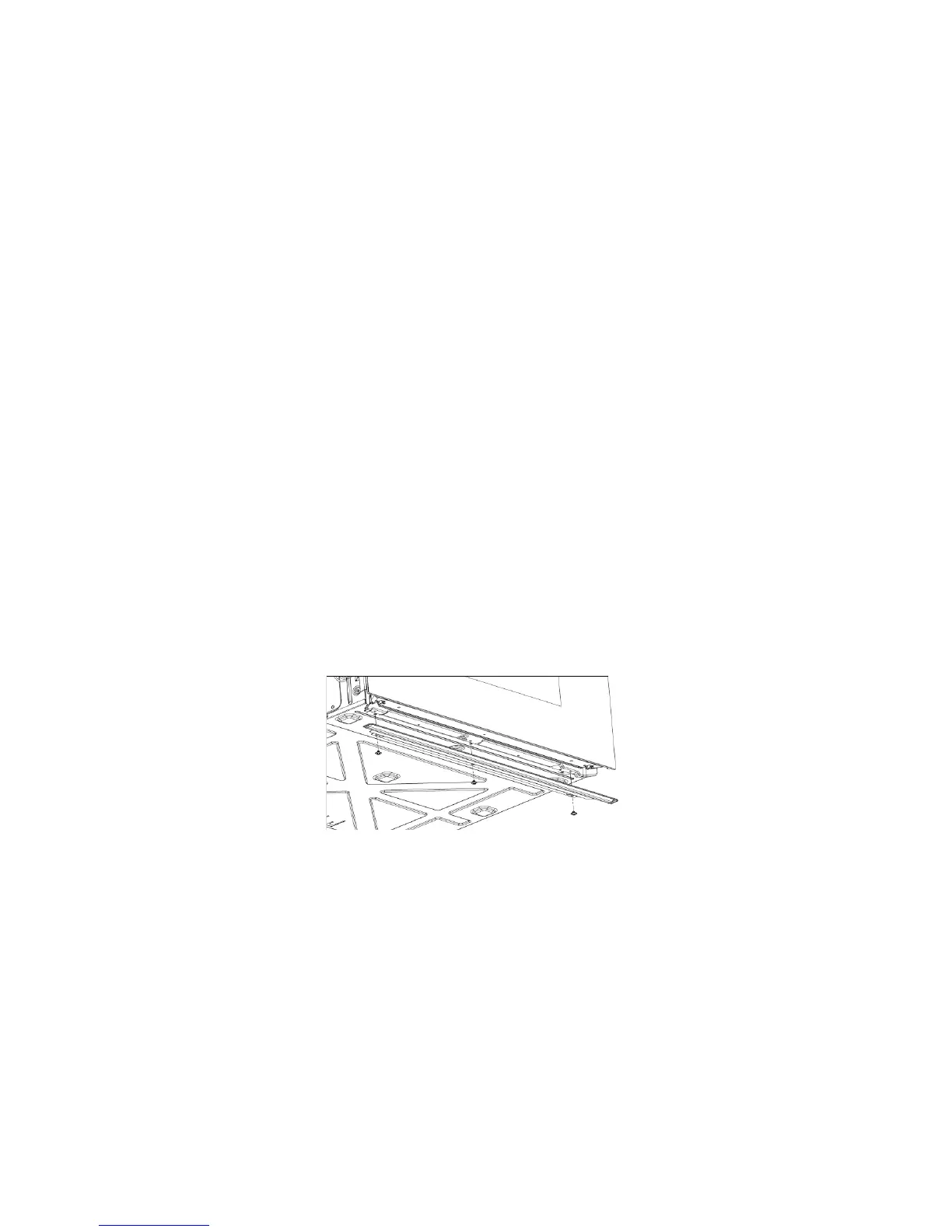

Before installing the oven into the furniture, it is necessary to assemble the lower profile “drip-catcher” (included
in the packaging). This “drip-catcher” must be attached to the lower part using the 3 screws supplied (please see
the next figure).
The oven must be located in a standard opening of 600mm, as illustrated in Fig. 1, whether under a counter or in
a column position.
When inserting the oven into a column it is indispensable to ensure adequate ventilation by installing openings
as illustrated in the figure.
The oven is secured to the furniture unit by four “A” screws located in the holes of the frame.
Make sure not to lift the oven by its door when inserting it; furthermore, do not place excessive pressure on the
door when it is open.
Note: if no opening has been anticipated in the upper part of the column furniture, make a
hole which is 560mm wide and 40-50mm high in the lower part of the column.
