damian LXS9 Series User Manual

Serie "LXS9"
Page 17
Rev. M - 01
- FUSES
The vending machine is equipped with fuses mounted as shown in the following table:
POSITION
INSCRIPTION
TYPE
PROTECTED
CIRCUITS
CHECK WHEN
A
F1
5x20 T6.3
( 6.3 A delayed 250
V )
Refrigeration
unit
The vending machine does not
refrigerate
B
F2
5x20 T6.3
( 6.3 A delayed 250
V )
General
24-28V
The vending machine does not
work
C
F3
5x20 T6.3
( ( 6.3 A delayed 250
V )
General 230V
The vending machine does not
work
D
F4
5x20 T6.3
( ( 6.3 A delayed 250
V )
General 230V
The vending machine does not
work
E
F5
5x20 F1
( 1A rapid 250 V )
CPU power
supply
The vending machine does not
work, the display does not turn
on.

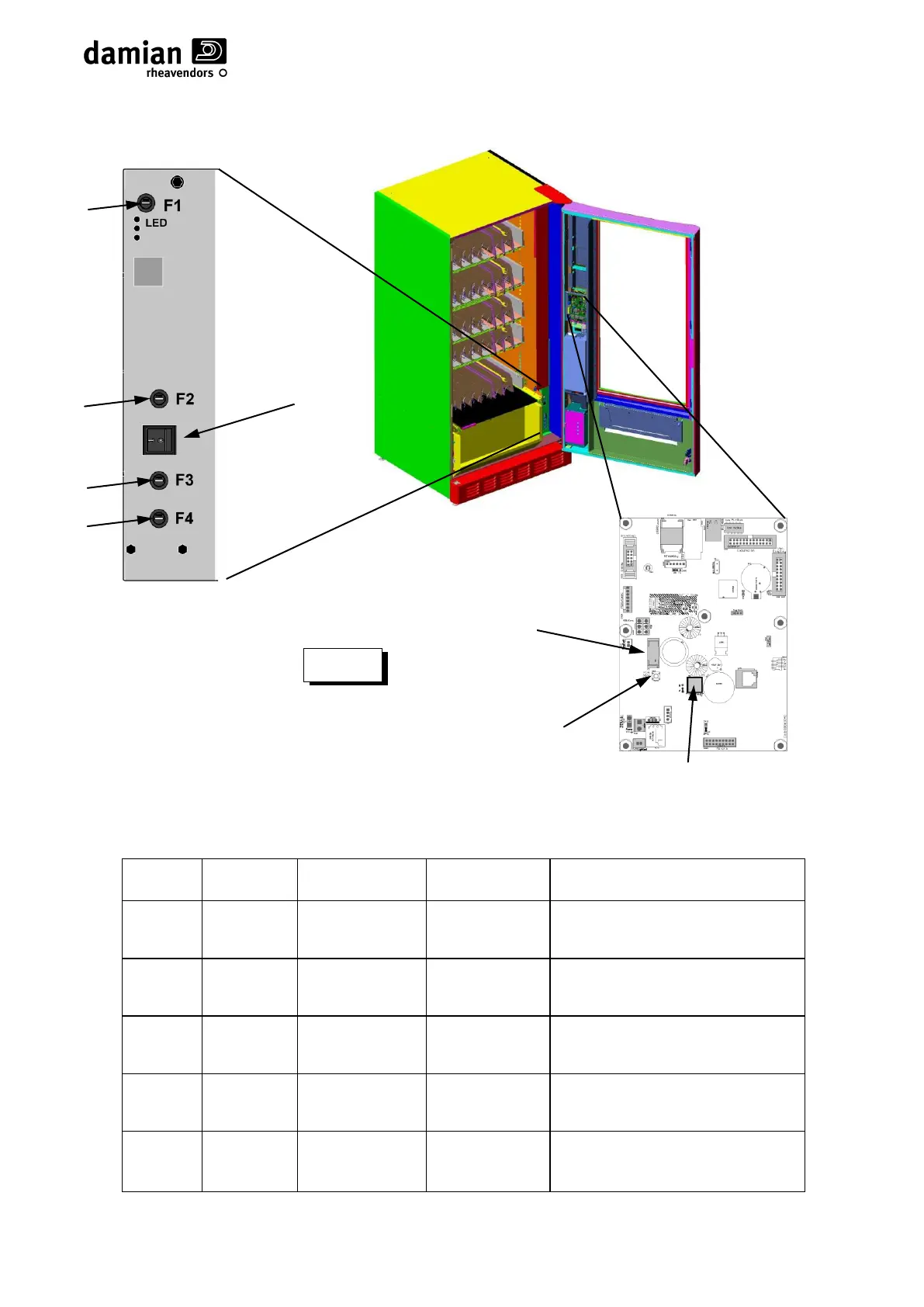

Figure 7
A
B
C
D
Press to enter into
programming
MAIN
SWITCH
PS2
Press to cancel motors
“OUT OF ORDER”
E
F5
