Serie "LXS9"
Page 8
Rev. M - 01

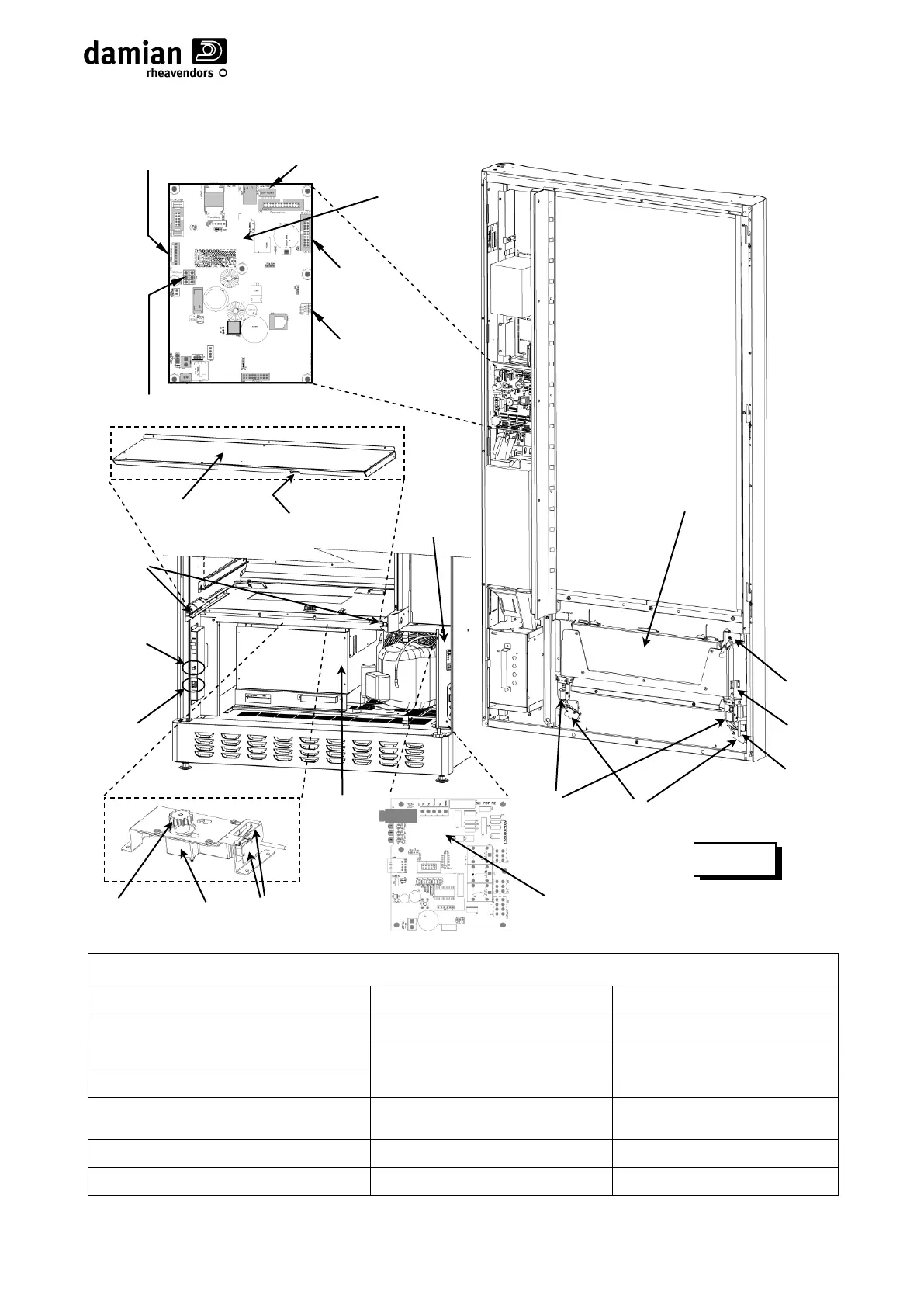

CIRCUIT BOARDS, SLIDING PANEL, PRODUCT DOOR.
Legend
( 2 ) CL1 CPU circuit board
( 9 ) Electrical box
( 16 ) CLP1 POT circuit board
( 3 ) FTCA sensor bars
( 10 ) Anti-theft sliding panel
( 17 ) Sliding panel rack
( 4 ) External ‟Push‟ product removal door
( 11 ) Sliding panel motor
( 18 ) Sliding panel motor pinion
( 5 ) Two magnets for locking the 'Push' door
( 12 ) Door open switch
( 6 ) Two microswitches of the „Push‟ locking
magnets
( 13 ) Two beginning/end stroke
microswitches
( 19 ) Refrigeration unit
( 7 ) Closing control microswitch
( 14 ) Safety switch bracket
( 8 ) Magnetic sensor
( 15 ) Safety switch
( 3)
( 12 )
( 15)
( 9 )
( 16 )
KEYBOARD connector
DISPLAY
connector
( 7 )
( 4 )
( 5)
( 6)
( 8 )
( 14 )
FTCA
connector
EXECUTIVE connector
MDB connector
( 2 )
( 11 )
( 13 )
( 18 )
( 10)
( 17 )
PS2
FIGURE 5
( 19)
