16
INSTALLATION INSTRUCTIONS
INSTALL THE AIR CONDITIONER

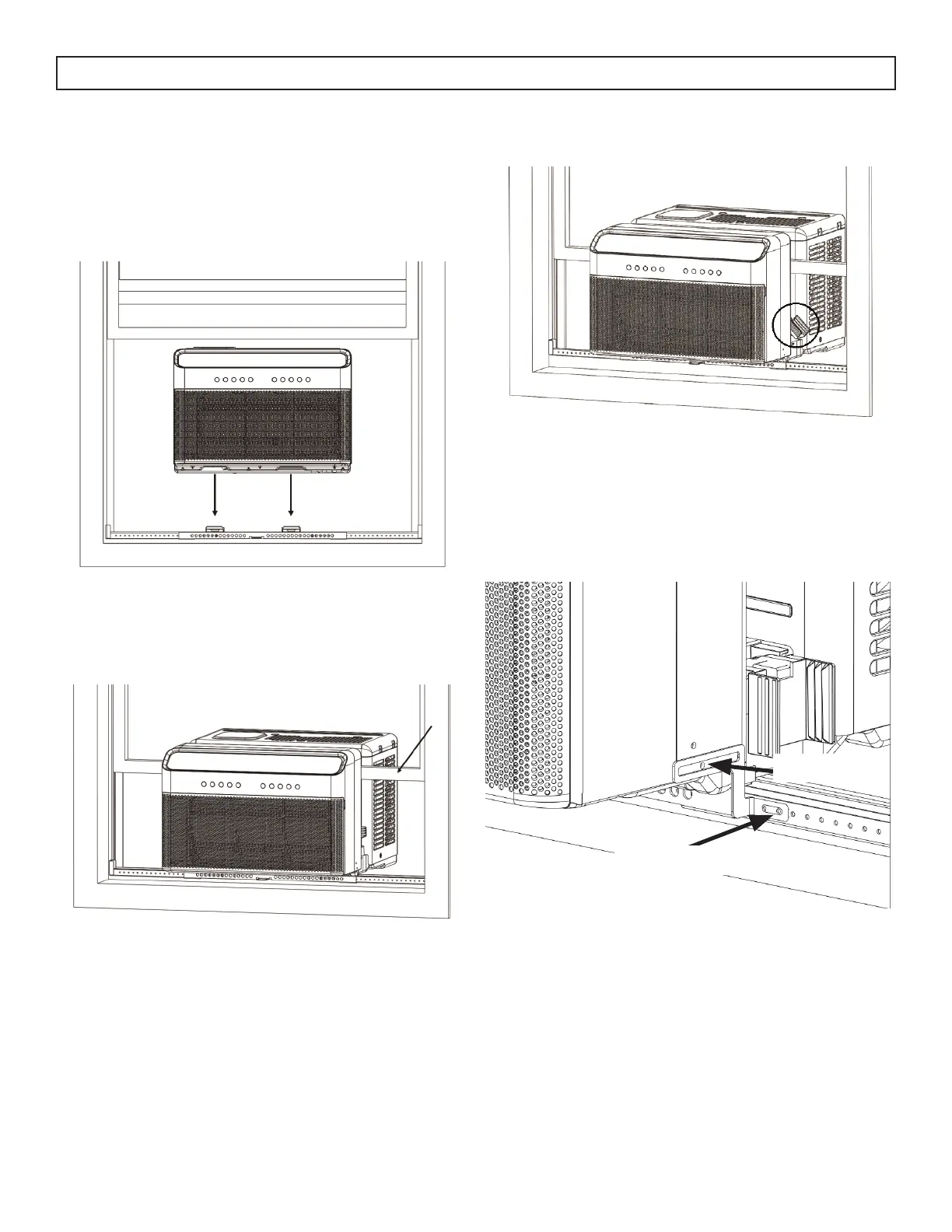

Set the air conditioner on top of the support
bracket. Ensure the grooves on the bottom of the air
conditioner align with the support bracket. Using a
level, check for the proper tilt toward the outside.
Pull the window down into the slot in the air
conditioner to hold it steady but do not close it all
the way yet.
Fold down both side arm hinges.
Install the open window brackets using the provided
screws as shown.
Warning: Failing to install the open window
brackets could cause injury or property damage.
1/2” type B
1/4” type B
To Next Page
