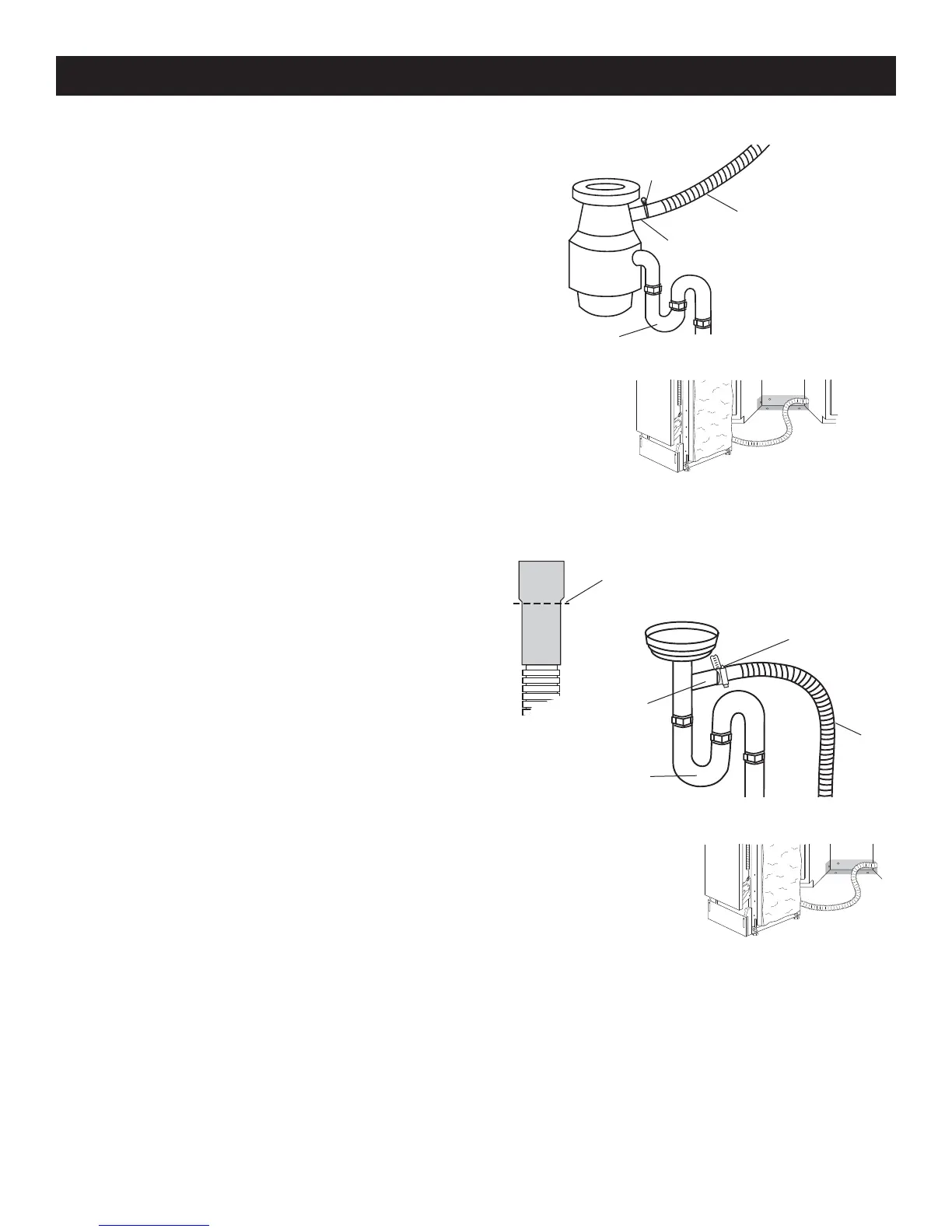

Option 3 - Waste disposer – no air gap:
1. Remove the disposer knockout plug. Do not cut end of drain
hose.
2. Attach drain hose to disposer inlet with large spring type
clamp. This connection must be before the drain trap and at
least 20” (50.8 cm) above the fl oor where dishwasher will be
installed. It is recommended that the drain hose be looped
up and securely fastened to the underside of the counter.
3. Insert drain hose through hole cut in cabinet to the front
center of opening where drain connection will be made.
INSTALLATION INSTRUCTIONS
Large spring-
type clamp
Drain hose
Drain Trap
Disposer inlet
Drain Hose
Option 4, No waste disposer – no air gap:
1. Cut end of drain hose if needed (do not cut ribbed section).
2. Attach drain hose to waste tee with 1-1/2” to 2” (3.8 to 5
cm) screw-type clamp*. This connection must be before
the drain trap and at least 20” (50.8 cm) above the fl oor
where dishwasher will be installed. It is recommended that
the drain hose be looped up and securely fastened to the
underside of the counter.
3. Insert drain hose through hole cut in cabinet to the front
center of opening where drain connection will be made.
* Parts should be available from a local plumbing supply store.
Drain Hose - Cut here
if needed
Screw-type
clamp
Drain Hose
Waste Tee
Drain Tap
Drain Hose
7
