V8/V12 loudspeaker
Nominal impedance 8 ohms
Power handling capacity (RMS/peak 10 ms) 500/2000 W
Nominal dispersion angle (horizontal) V8 80°
Nominal dispersion angle (horizontal) V12 120°
Splay angle setting 0° ...14 °
1° increment
Components 2 x 10“ driver
1 x 8“ driver
2 x 1.4” exit compression driver
Passive crossover network
Connections 2 x NL4 or NLT4 F/M
optional 2 x EP5
Pin assignment NL4 and NLT4 F/M: 1+/1–
EP5: 1: + / 2: –
Weight 34 kg (75 lb)

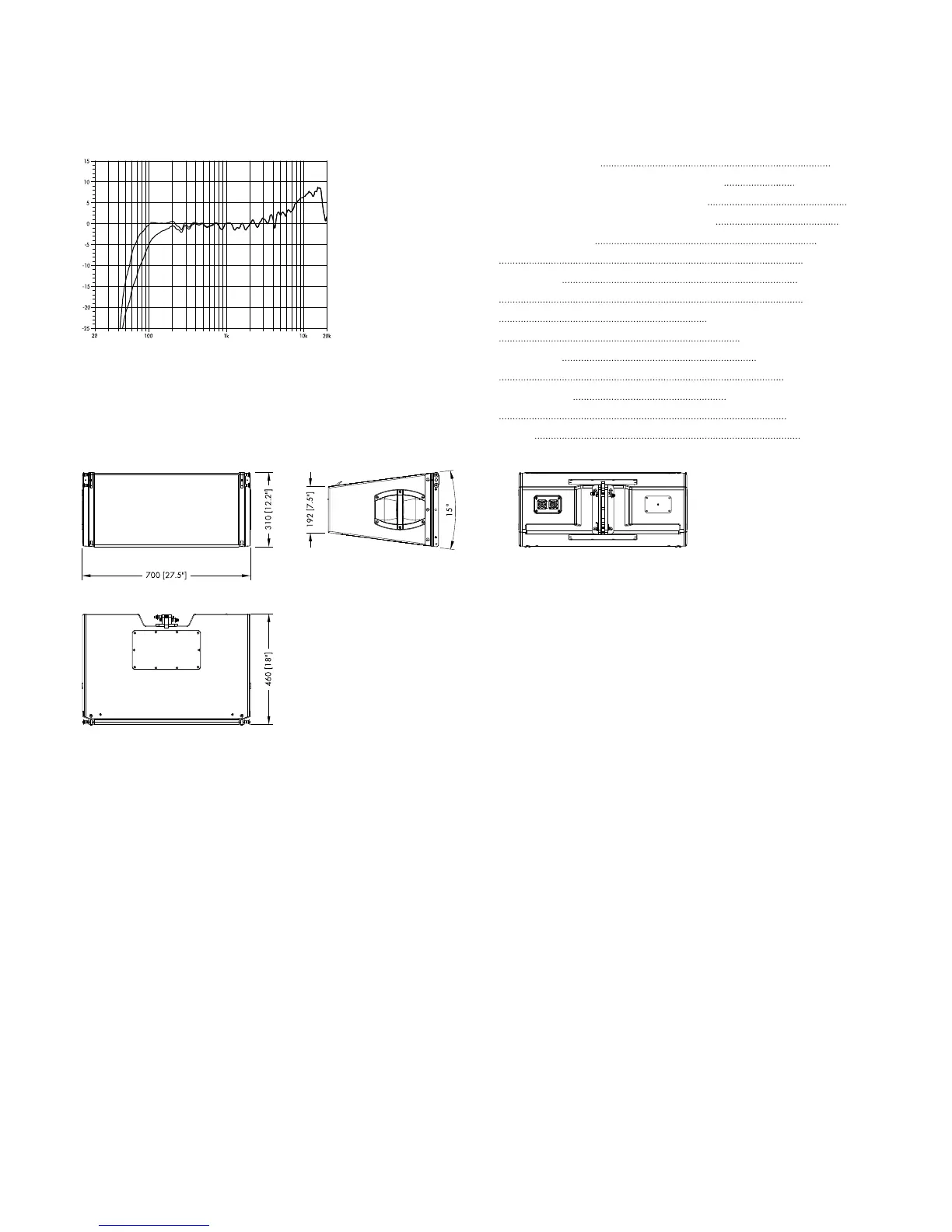

Fig. 9: V8/V12 cabinet dimensions in mm [inch]
Fig. 8: V12 frequency response, standard and CUT modes
