Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
8
Locomotive/Vehicle function decoder from firmware version 3.12
M1
M2
G1
G2
LV
LR
DH10C (1
st
generation)

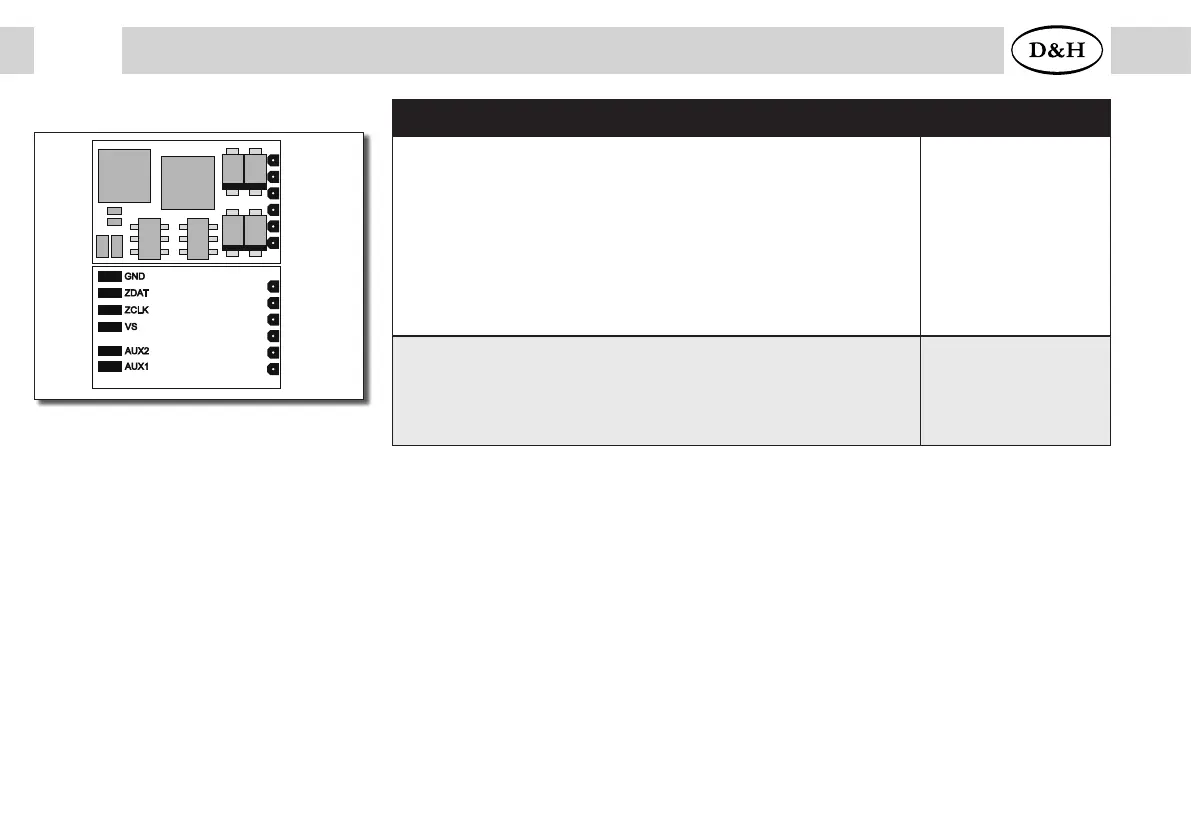

Specifications DH10C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
With SUSI interface (if AUX3/AUX4 deactivated)
14,2 x 9,3 x 1,5
1,0 A
1,0 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
DH10C-0
DH10C-1
DH10C-3
*) Unamplified function outputs: See supplement 3.
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
VS ......................Supply voltage (also for SUSI)
ZCLK ..................SUSI clock (or AUX3 unamplified) *)
ZDAT .................SUSI data (or AUX4 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
