Danfoss 084H4505 Instruction

© Danfoss A/S (AC-SMC/MWA), 01-2012 DKRCI.PI.SC0.D2.02 / 520H5637 3

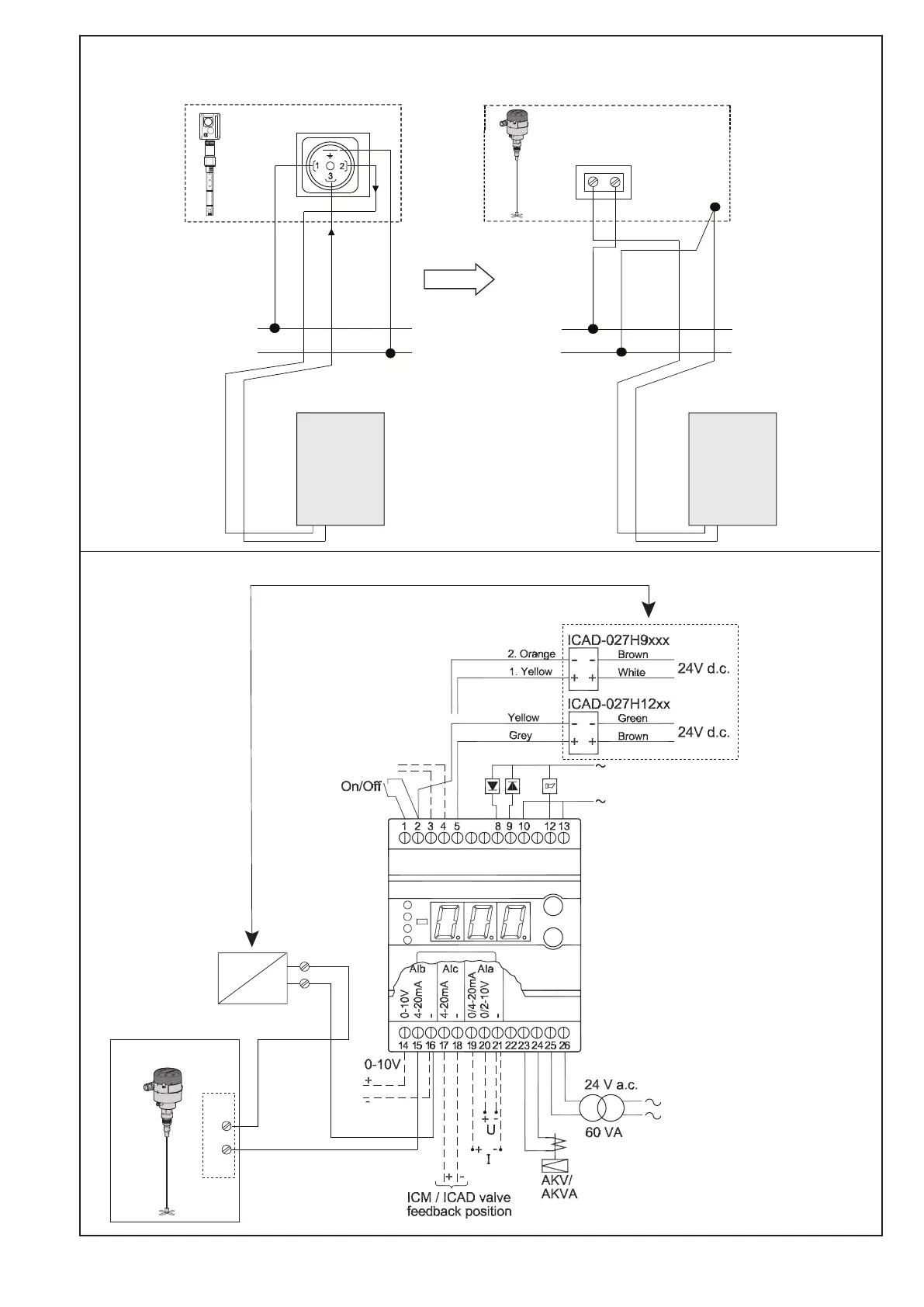

Fig. 10
AKS 4100/4100U connected to EKC 347
Fig. 9
AKS 41/41U to AKS 4100/4100U
AKS 41/41U with a.c supply to AKS 4100/4100U with d.c supply
①②③
④①
④
②
③
Danfoss EKC 347
or PLC
24 V a.c (L)
24 V a.c (N)
(+)
AKS 41/41U
(–)
4-20 mA
Danfoss EKC 347
or PLC
24 V d.c (+)
24 V d.c (–)
AKS 4100/4100U
–
+
Danfoss M84H0018_1
24 V d.c from ICAD
can also be used
Fx/ Eg/ z.B./ par exemple/ p.ej.
EKC 347 5 VA
AKVA coil 20W 55 VA
AKS 4100/4100U
14-30 V d.c.
+
–
(+)
(–)
Danfoss M84H0019_1

Danfoss 084H4505 Specifications

General

Brand	Danfoss
Model	084H4505
Category	Accessories
Language	English
