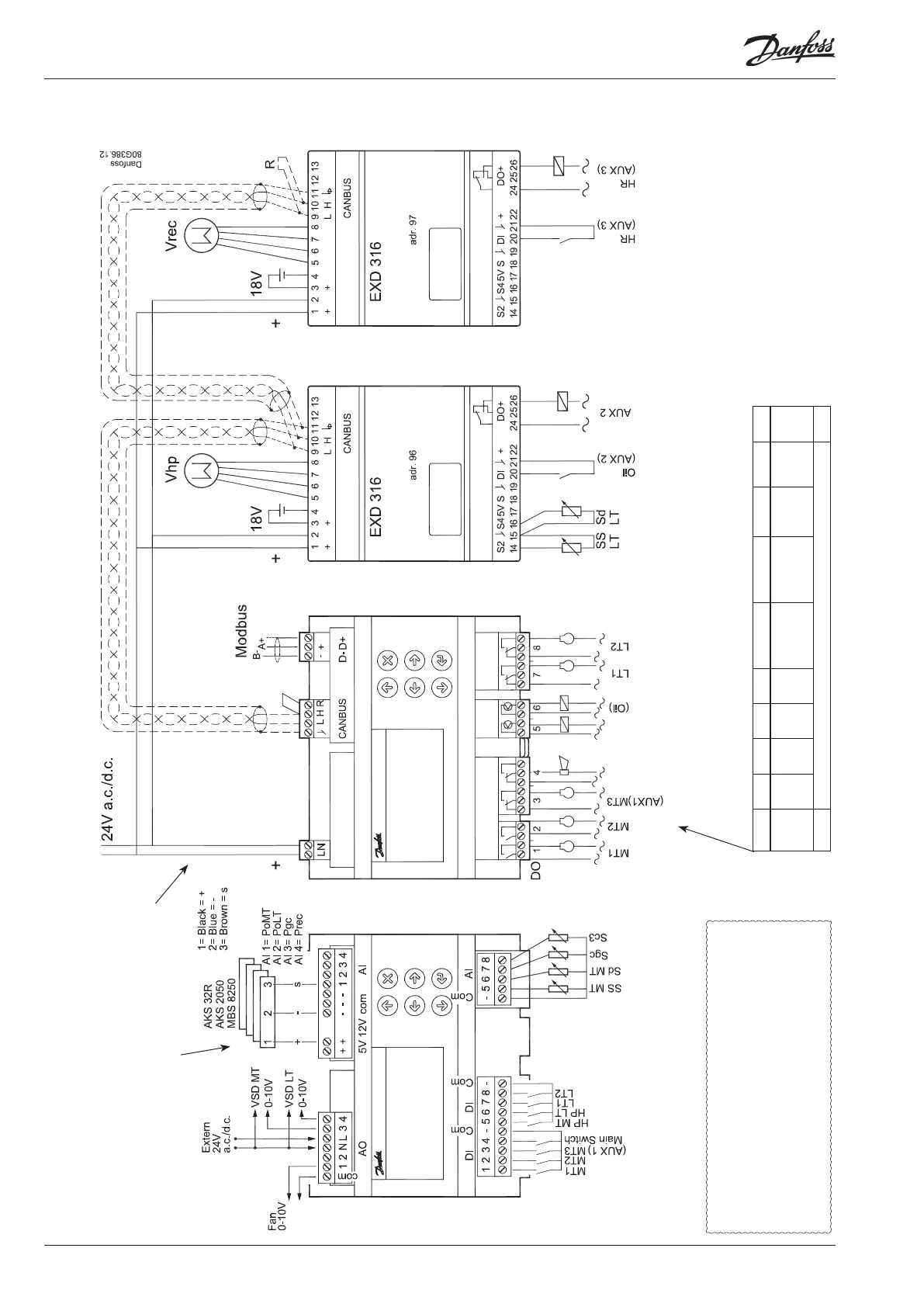

Connections
Separate
supply
Warning!
+ must be connected
to +
(L to1to 1)
Important!
Wait before connecting the power supply to the
modules!
In order to set the addresses 96 and 97, you must fol-
low the recommended procedure. See page 4.
Electric noise
Signal cables for sensors, DI inputs, data communication
and display must be kept separate from high voltage
(230 V) electric cables:
- Use separate cable trays
- Keep a distance between high voltage and signal cables
of at least 10 cm
- Cables longer than 3 m at the DI input should be avoided
DO DO1 DO2 DO3 DO4 DO5 DO6 DO7 DO8 Σ 1-8
I Max. 10 A
(3.5)
10 A
(3.5)
6 A
(4)
6 A
(4)
0.5 A
min. 50 mA
Ioff < 1,5 mA
0.5 A
min. 50 mA
Ioff < 1.5 mA
6 A
(4)
6 A
(4)
32 A
U All 24 V or all 230 V a.c.
Connection, lower level Connection, upper level
Warning
The supply voltage
of AI may not share
the signal with
other controllers.
