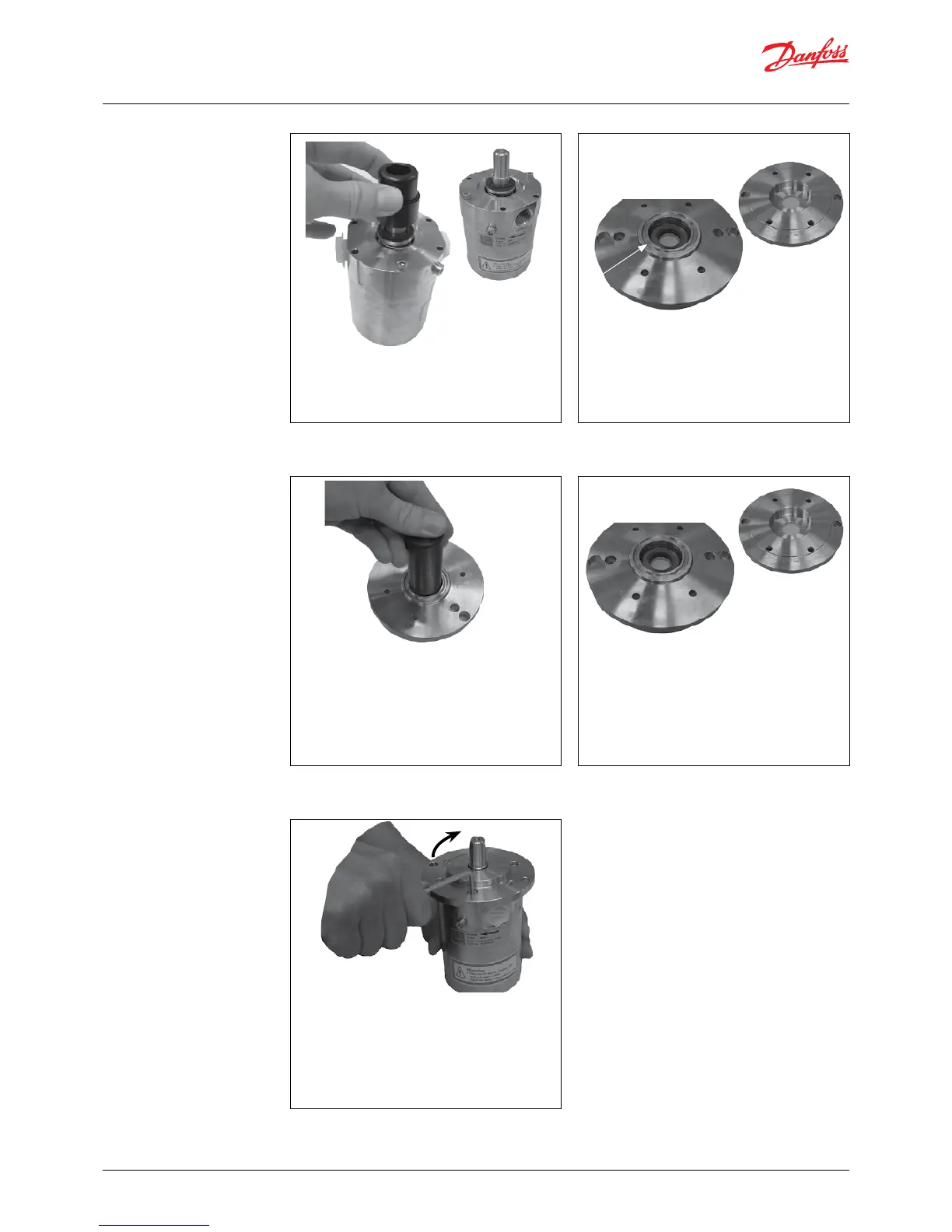

7. Push the new ceramic ring into the flange
using the plastic tool provided. Make sure
the face with the rubber seal is positioned
against the shoulder in the flange.
Wet the parts with clean (filtered) soap-
water before assembly.
9. To prevent cold welding, lubricate
threads on the 4 screws with grease and
screw them into the pump and tighten
by hand. Use Molykote® D paste from Dow
Corning or Klüber UH1 84-201 from Klüber
lubrication. Tighten the 4 flange screws
according to exploded view.
6. Remove ceramic ring from the flange.
8. Position the O-ring on the seal SAE flange.
5. Using the plastic tool provided, large
diameter first, press the seal home against
the shoulder, by hand.
