10
180R9267 / IOM APP 1.5-3.5 Appendices - v04 / 11.2013
Data sheet APP pumps - APP 1.5-3.5
8
521B0850 / DKCFN.PD.013.FA6.02 / 09.2012

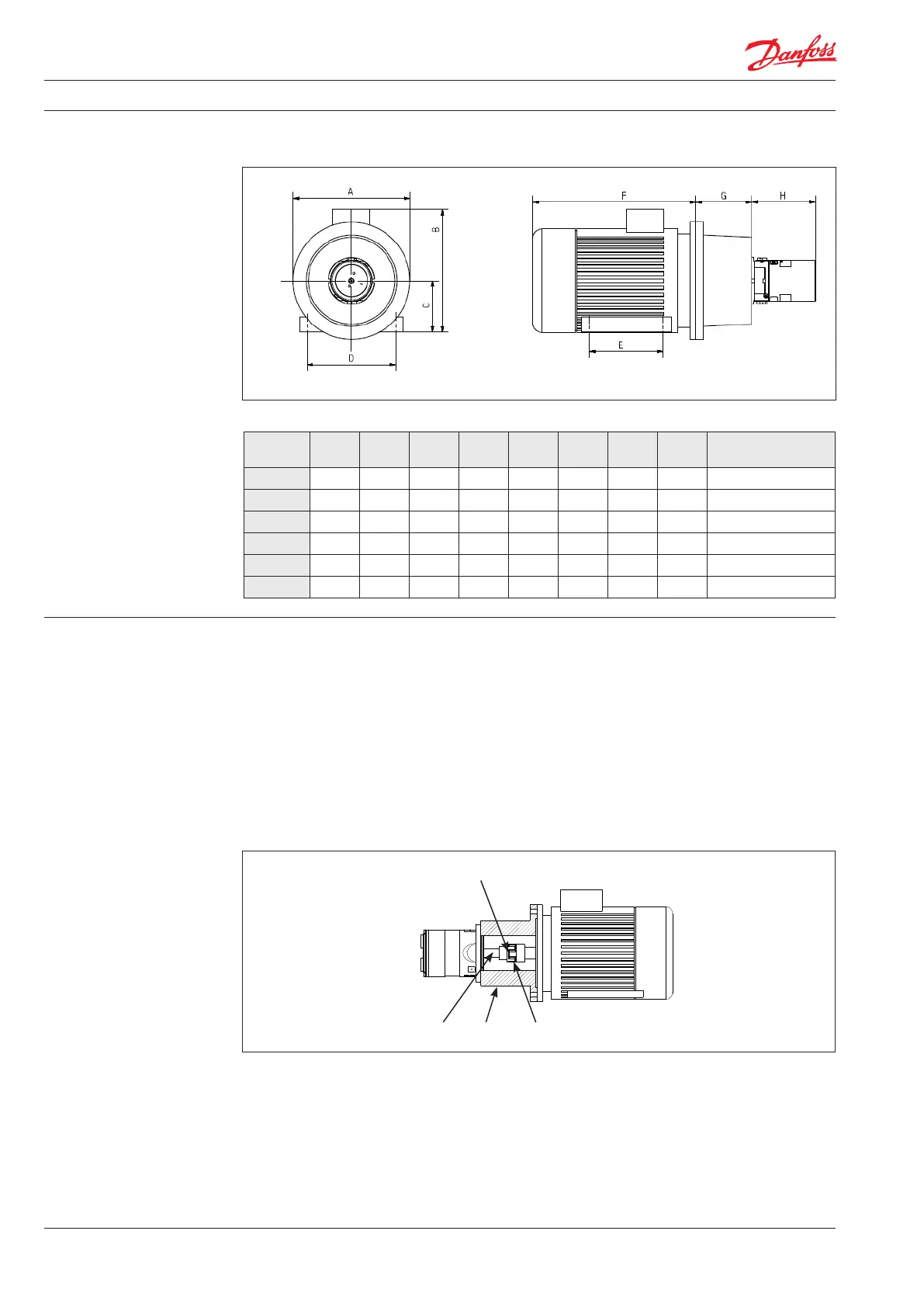

10.2 Complete unit
Pump A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
IEC Electric motor
APP 1.5 250 260 100 160 140 325 120 166 3.0 kW, IEC 100L-2
APP 1.8 250 290 112 190 140 340 120 166 4.0 kW, IEC 112M-2
APP 2.2 300 338 132 216 140 403 144 166 5.5 kW, IEC 132S1-2
APP 2.5 300 338 132 216 178 403 144 166 7.5 kW, IEC 132S2-2
APP 3.0 350 422 160 254 210 505 188 166 11 kW, IEC 160M1-2
APP 3.5 350 422 160 254 210 505 188 166 11 kW, IEC 160M1-2
11. Installation 11.1 Mounting
The gure below illustrates how to mount the
pump and connect it to electric motor/combus-
tion engine.
A: Flexible coupling
B: Bell housing
C: Motor shaft
If alternative mounting is required, please
contact Danfoss Sales Organization for further
information.
To ensure easy mounting of the exible coupling
without using tools, the tolerances must be
dimensioned accordingly.
Note: Any axial and/or radial loads on the shaft
must be avoided.
The pump should be connected to the rest of the
plant with exible hoses.
A CB
Min. 5 mm
