Danfoss APP 1.5

35
180R9267 / IOM APP 1.5-3.5 Appendices - v04 / 11.2013
Parts list APP 0.6-43 / APM 0.8-2.9 / APP W 5.1-10.2
8
521B0941 / DKCFN.PC.073.A13.02 / 10.2013
Note:
The parts listed are not sold separately, only in
various kits
Parts for APM 1.8-2.9 are equivalent to the
parts for APP 1.5-2.5 except for the valve plate
sets.
Exploded view, see next page.
6. Parts list
APP 1.5 - 2.5 and
APM 1.8 - 2.9
180B4147 – Seal set (APP 1.5-3.5) 180B4146 – Cylinder barrel set (APP 1.5-2.5) 180B4145 – Valve plate set (APP 1.5-2.5) 180F4007 – Valve plate set (APM 1.8 - 2.9) 180B4177 – Retainer set (APP 1.5-1.8 - APM 1.8-2.0) 180B4144 – Retainer set (APP 2.2-2.5 - APM 2.5-2.9) 180B4143 – Piston set (APP 1.5-2.5) 180B4136 – Flushing valve set (APP 1.5 - 3.5)
Pos. Qnt. Designation Material
1 1 Housing Duplex / PEEK
2 1 Pin (Ø4x14) AISI 316 x
61 1 Cylinder barrel Super Duplex / PEEK x
62 1 Spring Duplex x x
63 1 Spring guide PEEK x x
64 1 Retainer ball Super Duplex x x
65 1 Retainer plate Super Duplex x x
66 5 Piston Super Duplex / PEEK x
67 1 Key (5x5x20) AISI 316 x
91 1 Port plate Super Duplex / PEEK x x
92 1 Valve plate Super Duplex x x
93 5 Back-up ring PTFE x x x
94 5 O-ring (Ø13x2) NBR x x x
121 1 Port ange Duplex
122 1 O-ring (Ø83x2) NBR x
123 1 O-ring (Ø40x2) NBR x
124 1 Shaft seal AISI 316 / NBR x
125 1 Mounting ange
Wetted part: PP
Dry part: AISI 316
126 1 Pin (Ø6x10) PEEK x
127 4 Screw (M6x45) AISI 316 x
128 2 Screw (M6x16) AISI 316 x
129 2 Bleeding plug Duplex x
152 1 Valve cone PEEK x
153 1 Spring Duplex x
154 1 Plug/guide Duplex x
155 1 O -ring (Ø11.11x1.78) NBR x x
1 Instruction x x x x x x x x
Parts list APP 0.6-43 / APM 0.8-2.9 / APP W 5.1-10.2
9
521B0941 / DKCFN.PC.073.A13.02 / 10.2013

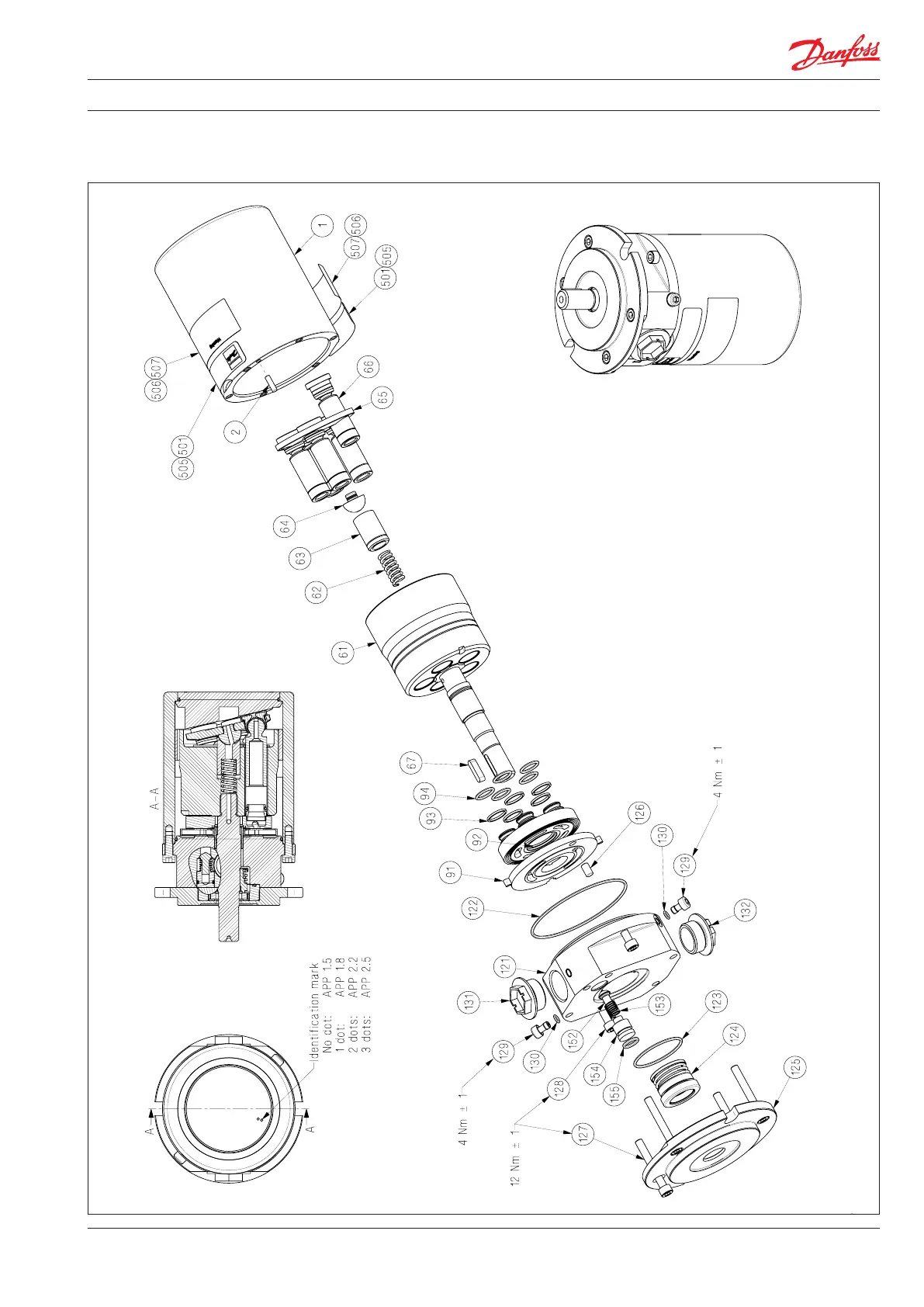

7. Exploded view
APP 1.5 - 2.5 and APM 1.8 - 2.9
[8.85 lbf ft ± 2.21 lbf ft]
[2.95 lbf ft ± 0.74 lbf ft]
[2.95 lbf ft ± 0.74 lbf ft]
