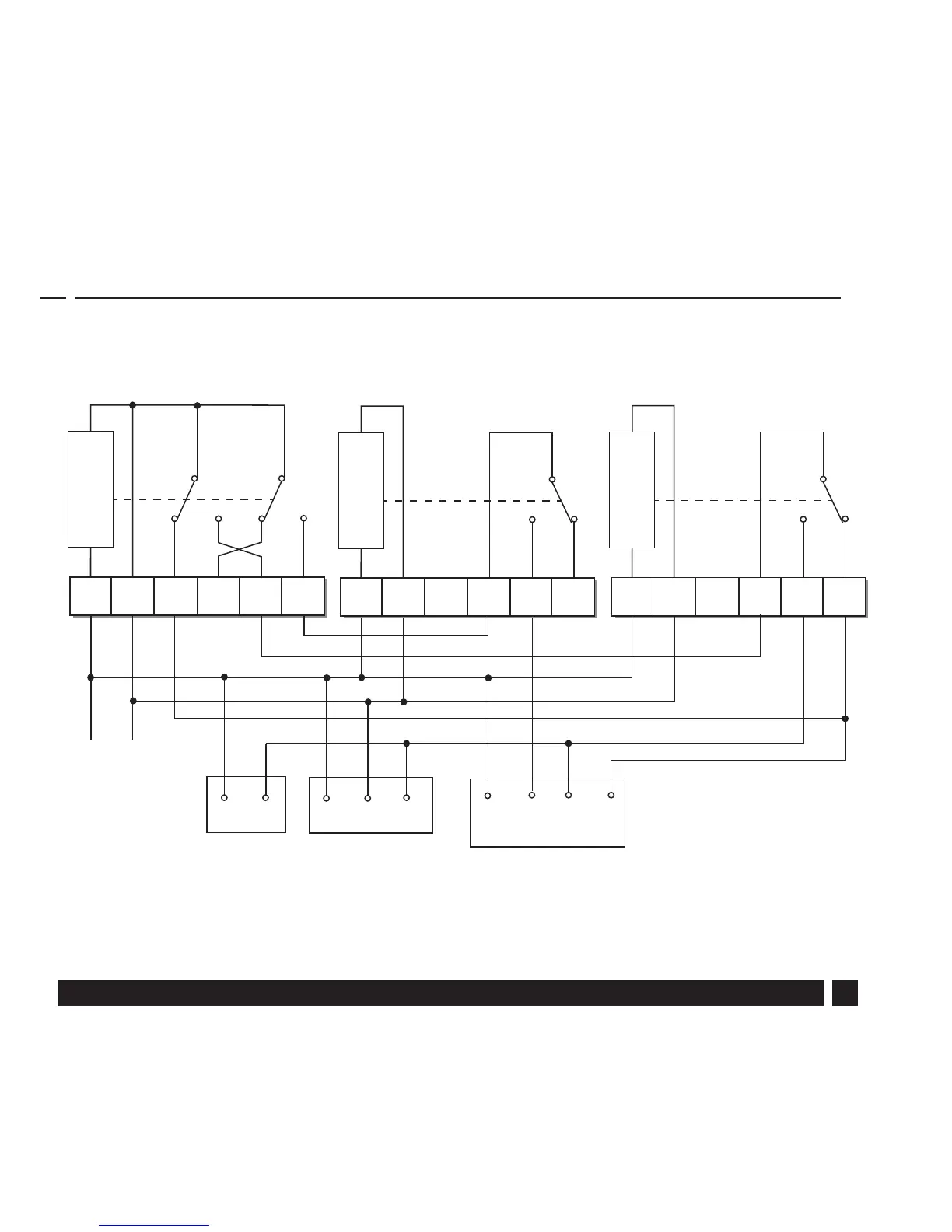

Danfoss CET2000B-RF - Wireless Heating & Hot Water Control, with 3 Port Mid Position Valve; System Wiring Diagram: FP715, 2 x RX1-S with 3 Port Valve

Danfoss Heating
13
Wireless Heating & Hot Water Control, with
3 Port Mid Position Valve
ELECTRONICS
N
L
1
2
3
ELECTRONICS
N
L
2
HTG OFF
3
HW ON
4
HTG ON
230Vac
1
HW OFF
RX1-S Receiver -
paired to CET2000B-RF
FP715 Programmer
3 Port Mid-Position Valve
FP715 Programmer
Pump
blue
brown/ white
orange
grey
N L
ELECTRONICS
N
L
1
2
3
RX1-S Receiver -
paired to RET2000B-RF
Boiler
N L
Sw.L
