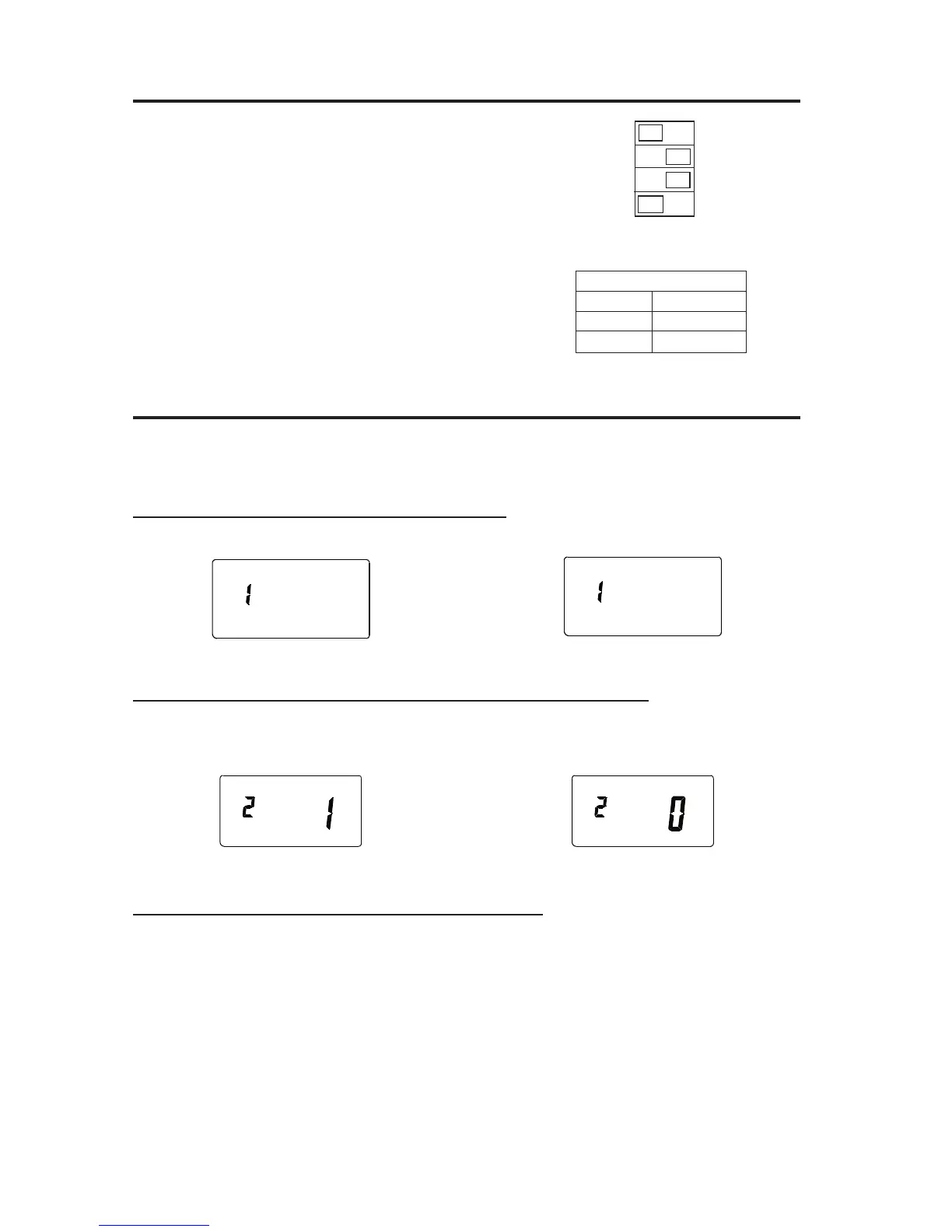

DIL switch settings and Advanced Programming Options
Tick the INSTALLER SETTING box
on the inside fl ap label to notify
user in which mode their unit is
set (24hr, 5/2 day or 7 day).
DIL Switch Settings
Before mounting the unit, ensure the
4 DIL switches on the rear have been
moved to the required settings.
!
INSTALLER SETTING
24 Hour
5+2 Day
7 Day
Advanced Programming Options
To enter advanced programming press PROG, + and DAY/HOL
together and hold for 5 seconds.
Option 1 - (3 or 2 On/Off ’s per day)
Use + or - to change between 3 or 2 on/off ’s each day.
Option 2 - (Disable or enable auto time change)
Press NEXT, then use + or - to change between auto time
change enabled to auto time change disabled.
Option 8 - (Advanced Copy Functions)
Press NEXT, then + or - to change between the following copy
options:
(0) Standard copy in 7 day and 5+2 day.
(1) Enhanced copy in 7 day and 5+2 day
(2) Enhanced copy in 7 day and AB copy in 5+2 day.
For an explanation of the copy features and how to use them
please see page 6.
Press PROG to return to RUN.
3
2
3 on/off ’s each day (Factory setting) 2 on/off ’s each day
Auto time change enabled (Factory setting) Auto time change disabled
2 ON/OFFs
PUMPED
7 DAY or 24 HOUR
24 HOUR
3 ON/OFFs
GRAVITY
5/2 DAY
7 DAY
SW.1
SW.2
SW.3
SW.4
