15
11032748_Rev D
A_Sep2014
User Manual
EIC-Engine Information C
enter – DP2xx
Ma
in M
e
nu

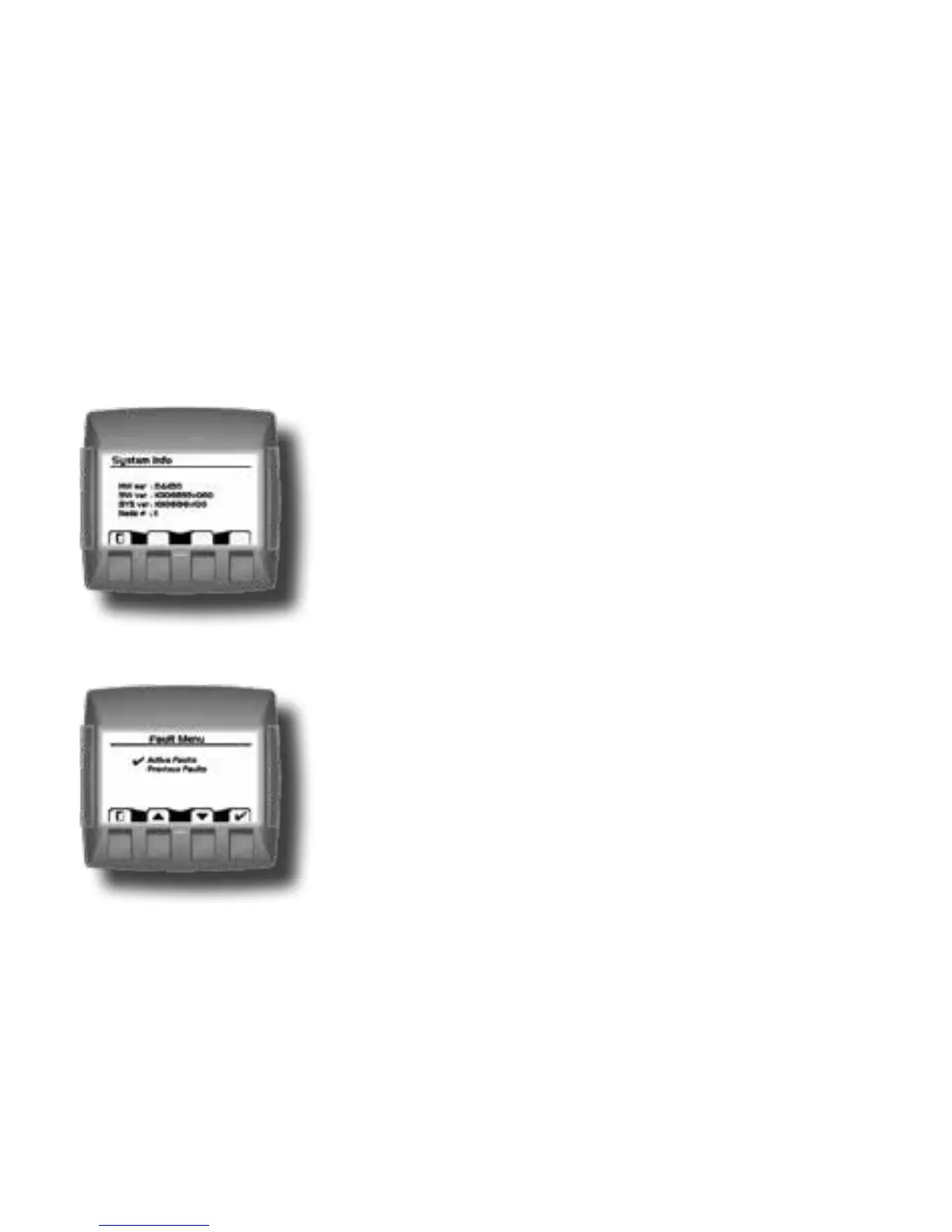

Diagnostics
S
ystem Info
Th
e sys
tem info screen displays the hardware
sy
stem s
erial num
ber
, cur
rent sof
t
wa
re versio
n,
curre
nt sys
tem ver
sion and n
od
e numbe
r
. Onl
y
infor
mation is disp
layed in the System Info
wind
ow
. No chan
ges c
an be ma
de.
F
ault
Log
F
ault info
rmatio
n is saved and s
tore
d to the faul
t
lo
g. Se
le
c
t eith
er Ac
tive or Previ
ous F
ault
s to
moni
tor fault a
c
tiv
it
y
. Se
le
c
t sp
eci
c fault
s to list
more i
nformation.
14
16
Table of Contents
Table of Contents
2
EIC-Engine Information Center – Dp2Xx
3
Before You Start
4
The Engine Information Center (EIC)
5
Brightness/Contrast Adjustment
6
Navigation Using Soft Keys
6
Navigate down
7
Navigate up
7
Brightness/Contrast
7
Screen Navigation
7
EIC Dp2Xx Force and Inhibit Regeneration Software Function Description
8
Force Regeneration Action
9
Inhibit Regeneration Action
9
Start Menu
10
Main Menu
10
Basic Setup
11
Overview
11
Language
12
Time/Date
12
Units
13
Unit Selection Options
13
Diagnostics
14
System Info
15
Fault Log
15
Fault Log: Active and Previous Faults
16
Fault Pop-Up Alarms
17
Fault Pop-Up Soft Key Actions
17
Device List
19
Quick Data
20
Screen Setup
21
Parameters
22
Number of Screens
22
Select Screen
22
Display Setting
25
PIN Protection
26
Change PIN Code
26
Trip Reset
26
Selecting Screen Number and Types
27
Setup Options
27
Screen Variants
28
Screen Type 1
28
Screen Type 2
28
Screen Type 3
28
Selecting J1939 Monitor Signals
29
J1939 Monitor Controls
31
Signal Monitor Functions
32
High Exhaust System Temperature Lamp
35
Lamps
35
Particulate Filter Lamp
35
LED Indicators
35
Panel Bracket Assembly
36
Mounting and Fastening Installation
36
Installation/Mounting Instructions
36
Surface Mount
37
Panel Gasket Dimensions
38
Real Time Clock/ Low Temperature Functionality
39
Inputs/Outputs
39
Model Name
39
DP200 Series Model Code Variants
39
DP211 Series Model Code Variants
40
DP250 Series Model Code Variants
41
DP200 Series- Deutsch Connector
42
DP200 Series Pin Assignments
42
Connection/Pinout Settings
42
DP250 Series- Deutsch Connector
43
DP250 Series Pin Assignments
43
Connection Tools
44
Related Parts & Kits
44
Electrical Connection Kits
44
DP200 Series Related Products Part Numbers
44
Dp2Xx Series Accessories
44
DP200 Mounting Kit
45
DP211 Mounting Kit
45
DP250 Mounting Kit
45
Software
46
Important Safety Information
47
