User Manual EIC-Engine Information Center – DP2xx

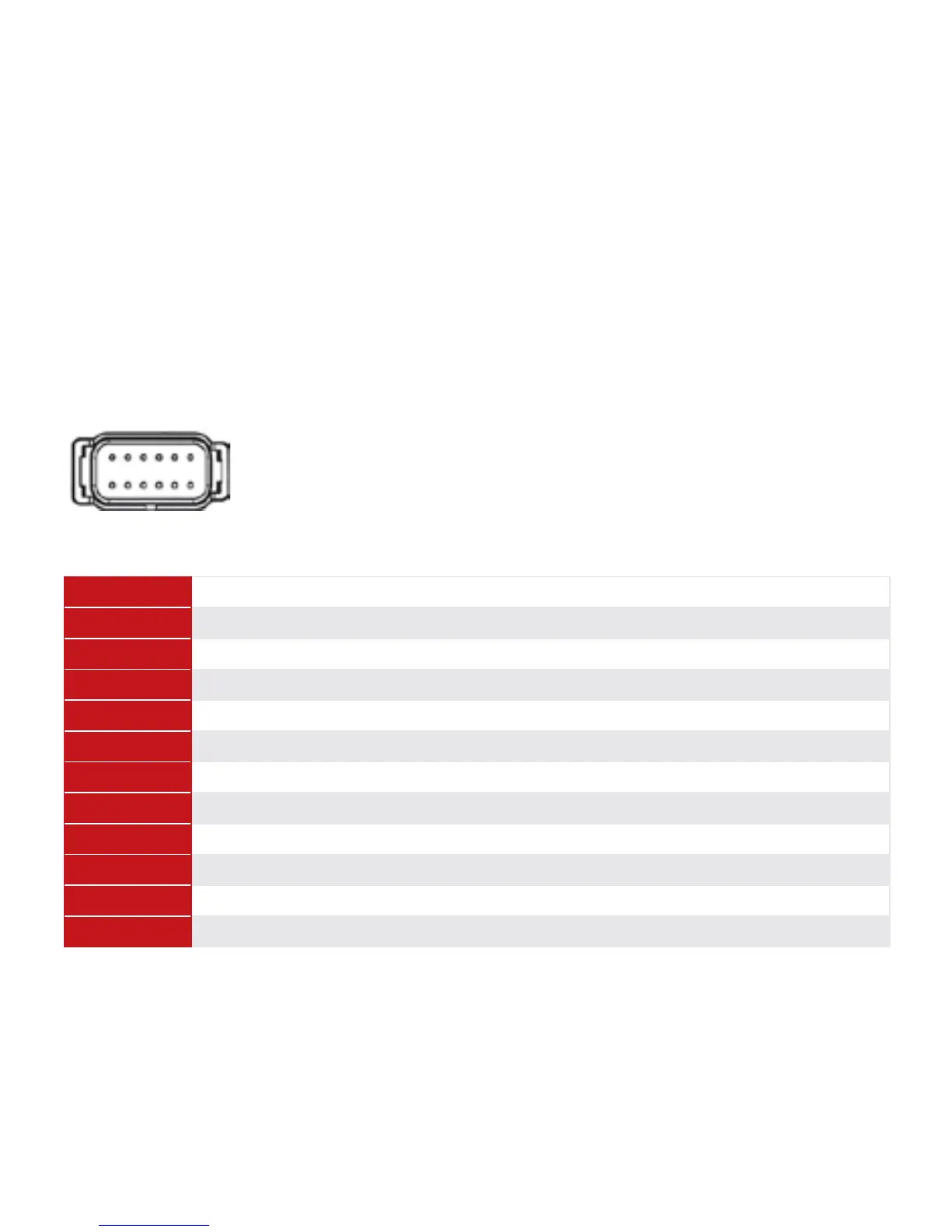

Connection/Pinout settings
DP250 Series- Deutsch Connector
1
6
7
12
DP250 Series pin assignments
1 Power ground-
2 Power supply+
3 CAN 0+
4 CAN 0–
5 AIN/ CAN Shield
6 See Code B option/TI
7 See Code B option/TI
8 See Code B option/TI
9 See Code B option/TI
10 DIN/AIN/FREQ IN/CURRENT IN, RHEOSTAT
11 DIN/AIN/FREQ IN/CURRENT IN, RHEOSTAT
12 DOUT (0.5A)
