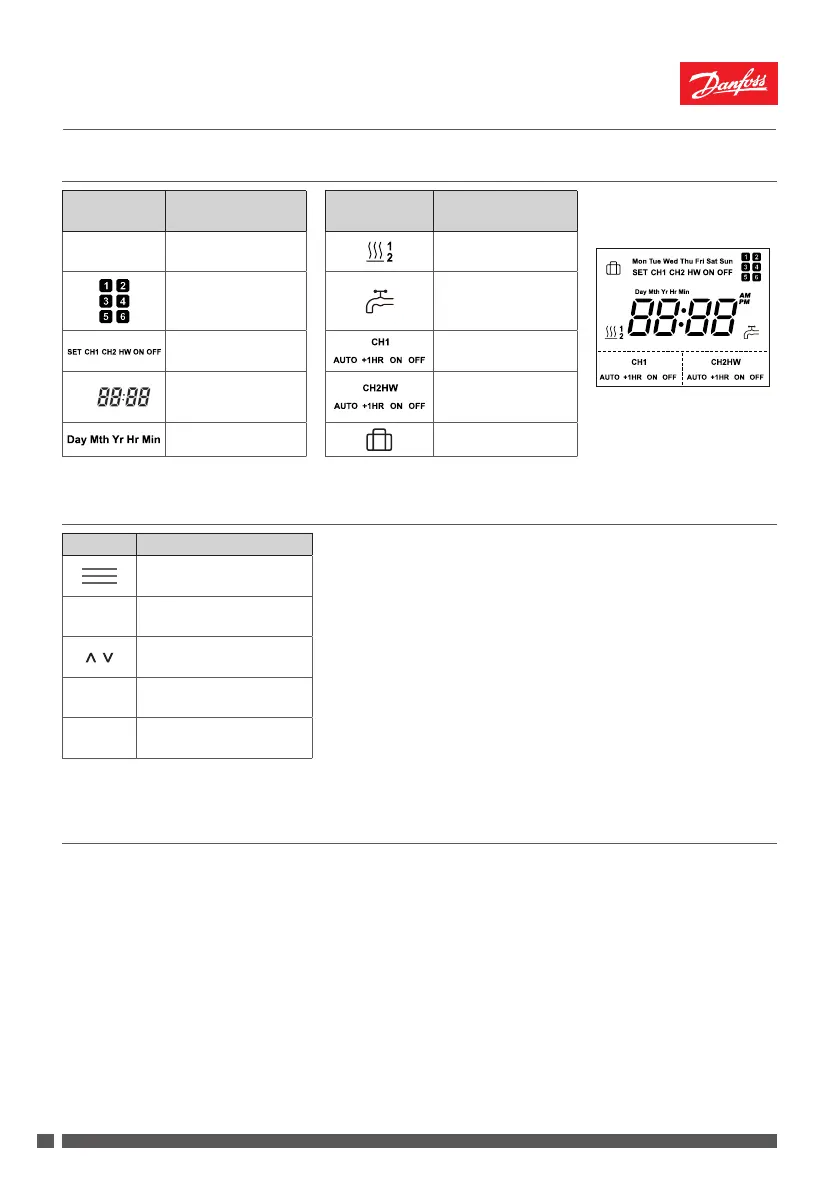

User Guide FP720 Two Channel Heating Timer
2
Danfoss Heating
VUSUH102 05/2019
1 Functional Overview
Symbols
Function
description
Symbols
Function
description
Mon–Sun
Current set day
Heating active
(1 or 2 Zone)
Current on/o
period
Domestic hot water
heating active
Schedule setup
Heating channel 1
current mode
AM
PM
Current set time /
parameter setup
Heating channel2 or
DHW current mode
Time and date setup Away mode
2 Buttons
Symbols Function description
Schedule setup
(menu access*)
OK
Conrm settings
(date and time setup*)
Menu navigation / day
selection
< >
Time and setting changes
/ channel mode selection
CH
Channel selection
(holiday mode selection*)
* To access additional feature press and hold button for 3 secs
3 Set Date & Time
Press and hold OK button for 3 seconds; Yr ashes. Press < or > buttons to adjust year
Press OK button again; Mth ashes. Press < or > buttons to adjust month
Press OK button again; Day ashes. Press < or > buttons to adjust day of the month
Press OK button again; Hr ashes. Press < or > buttons to adjust hour
Press OK button again; Min ashes. Press < or > buttons to adjust minute
Press OK button to exit, automatic exit after 20 seconds if no buttons pressed
