Danfoss ICAD 1200B - Wiring Diagram Showing ICAD Wired with One Digital Input for ON;OFF Solenoid Valve Operation; Wiring Diagram for Oating 3-Point Control (Open-Neutral-Close)

Wiring diagram showing ICAD wired with one digital input for ON/OFF solenoid valve operation

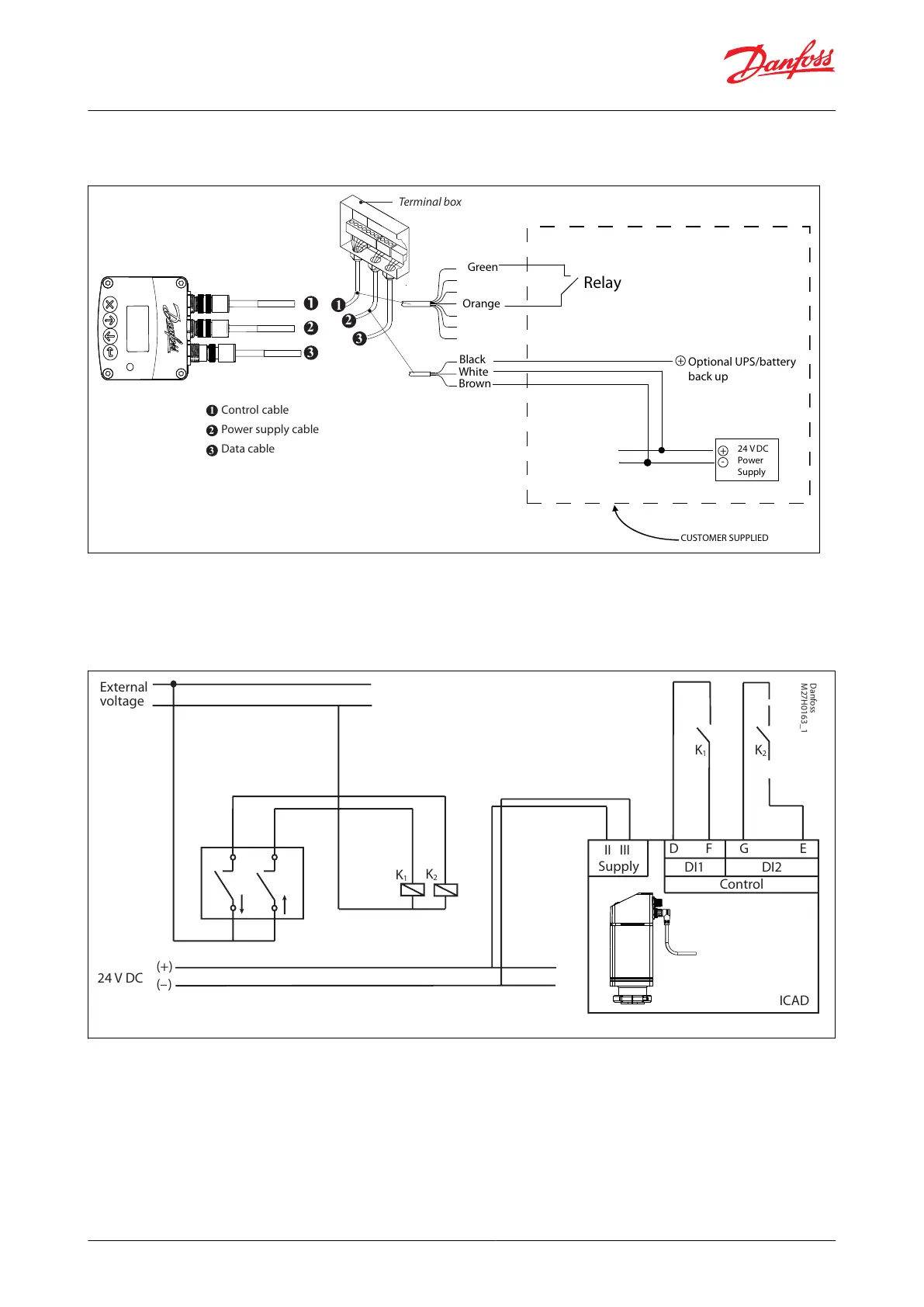

Figure 12: ICAD wired with one digital input for ON/OFF solenoid valve operation
CUSTOMER SUPPLIED
White
Brown
Green
Orange
Relay
Black
Optional UPS/battery
back up
+
24 V DC
Power
Supply
+
-
Control
Power supply cable
cable
Terminal box
2
1
3
Data cable
2
1
3
2
3
 NOTE:
The ICAD motor can be programmed to open or close when the relay is closed.
Wiring diagram for oating 3-point control (open-neutral-close)
Figure 13: Neutral zone/3 points control
External
voltage
24 V DC
(+)
(–)
K
1
K
2
K
1
K
2
II III
Supply
D F G E
DI1
DI2
Control
ICAD
Danfoss M27H0163_1
ICM and ICMTS Motorized Valves with ICAD Actuators
