MCD Soft Starter Remote Operator
4 MG.17.E2.02 – VLT is a registered Danfoss trademark
Installation
For Use with MCD 3000
Order Code: 175G3061

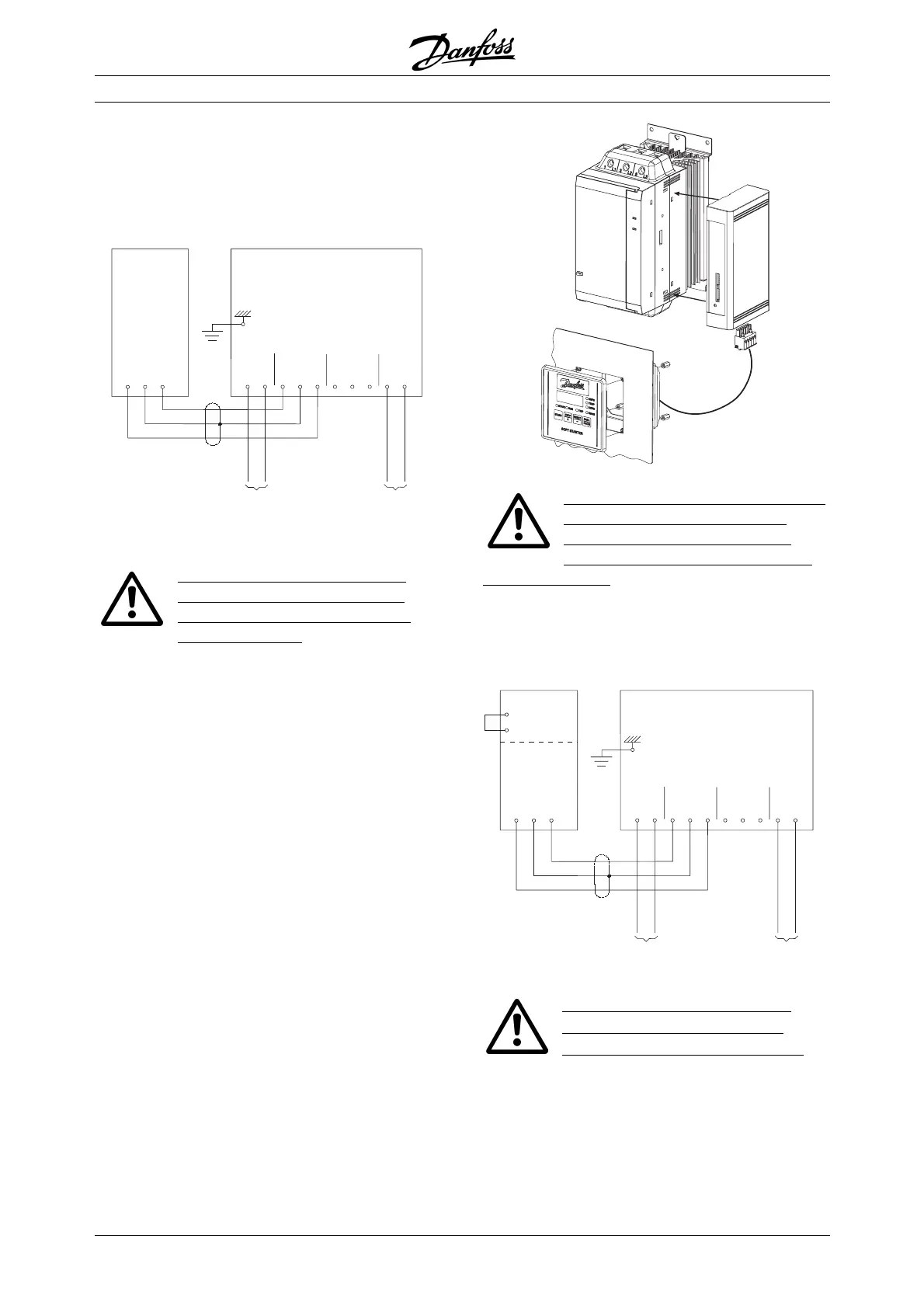

To connect the Remote Operator to an MCD 3000
soft starter:
177HA375.10
MCD 3000 REMOTE OPERATOR
RS485
SERIAL PORT
68
61
69
B1
B2
B3 B6
B7 B8
+ GND -
RS485
STARTER
RS485
NETWORK
4-20 mA
ANALOGUE OUTPUT
(MOTOR CURRENT)
B10
B11
4-20 mA
+ -
SUPPLY VOLTAGE
(18 ~ 30 VAC/VDC
12
POWER
SUPPLY
- GND +- GND +
~/+ ~/-
For the Remote Operator to operate
correctly, the MCD 3000 must be in
LOCAL mode (set Parameter 20 = 2:
Local Control Only).
For Use with MCD 200 Series
Order Code: 175G9004
(comprising display and Remote Operator Module)
In order to use the Remote Operator with MCD 200
Series soft starters, a Remote Operator Module must
first be installed to the starter using the following
steps:
1. Remove control power and mains supply from the
starter.
2. Attach the Remote Operator Module to the side of
the starter as illustrated.
RS485
177HA264.10
Control power and mains supply must be
removed from the MCD 200 before
attachment or removal of accessory
modules. Failure to do so may result in
equipment damage.
Once the Remote Operator Module has been
installed, wire between the Remote Operator and the
module as follows:
177HA265.11
MCD 200 REMOTE
OPERATOR
RS485
SERIAL PORT
68
61
69
B1
B2
B3 B6
B7 B8
GND
RS485 RS485
GND
+
-GND
+
-
MCD NETWORK
-
+
REMOTE
INTERFACE
4-20 mA
ANALOGUE OUTPUT
(MOTOR CURRENT)
B10
B11
4-20 mA
-
+
SUPPLY
SUPPLY VOLTAGE
18 ~ 30 VAC / VDC
12
POWER
~/
~/
-
A1
N2
For the Remote Operator to operate
correctly, a link must also be made
between A1 and N2 on the MCD 200.
