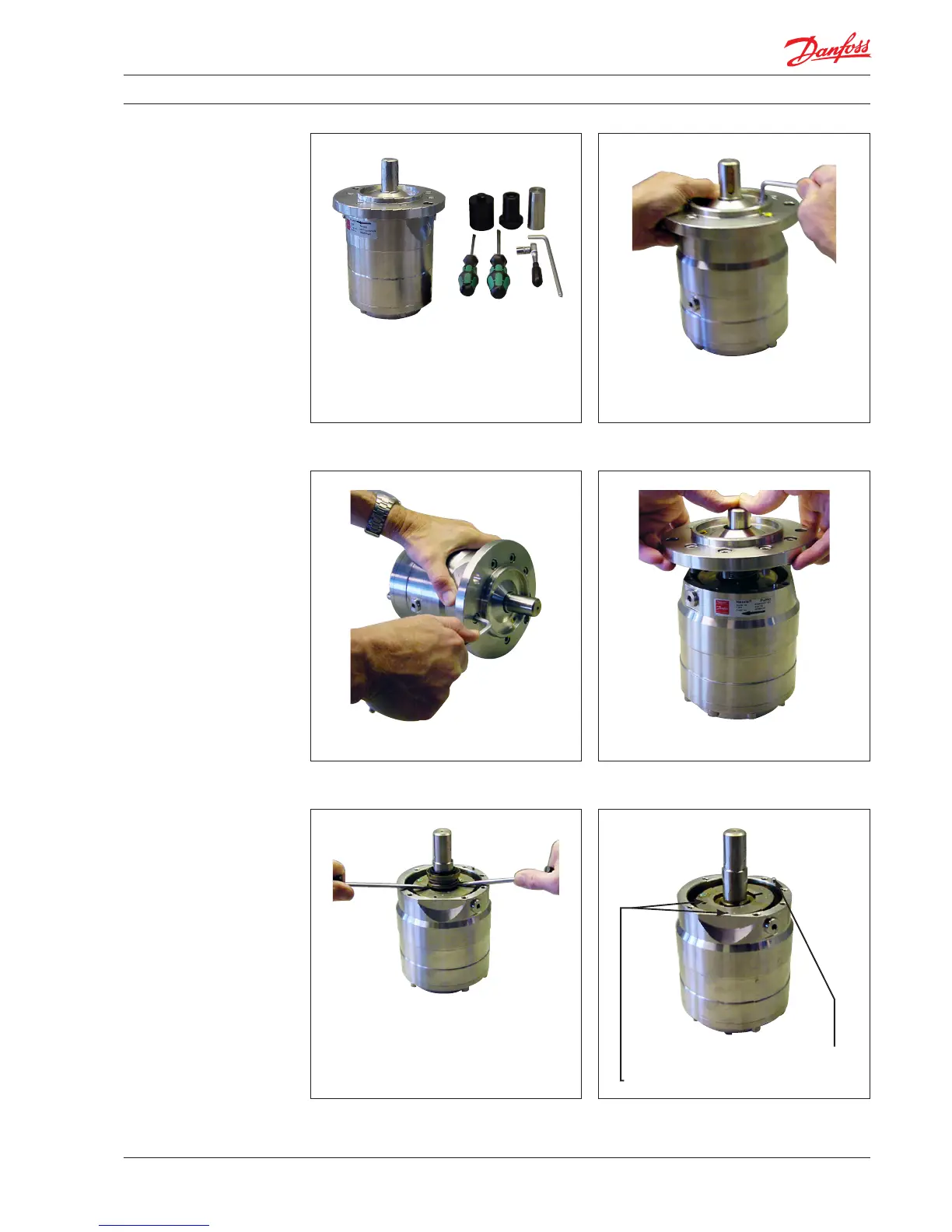

Service guide | Disassembling and assembling PAH 50-100
3
180R9098 | 521B1072 | DKCFN.PI.011.NC5.02 | 06.2017
1. Disassembling the
pump
2. Remove the parallel key and unscrew the
front cover.1. Tools required for dismantling.
3. Unscrew the screws in the front flange. 4. Remove the front flange.
4. Remove the shaft seal using two
screw drivers.
Caution: Avoid scratching the sealing
surface on the shaft.
6. Remove the guide pin from the housing
and the two guide pins from the
swash plate.
