Operation guide Installation, Operation and Maintenance Manual for PAHT 20-90 pumps

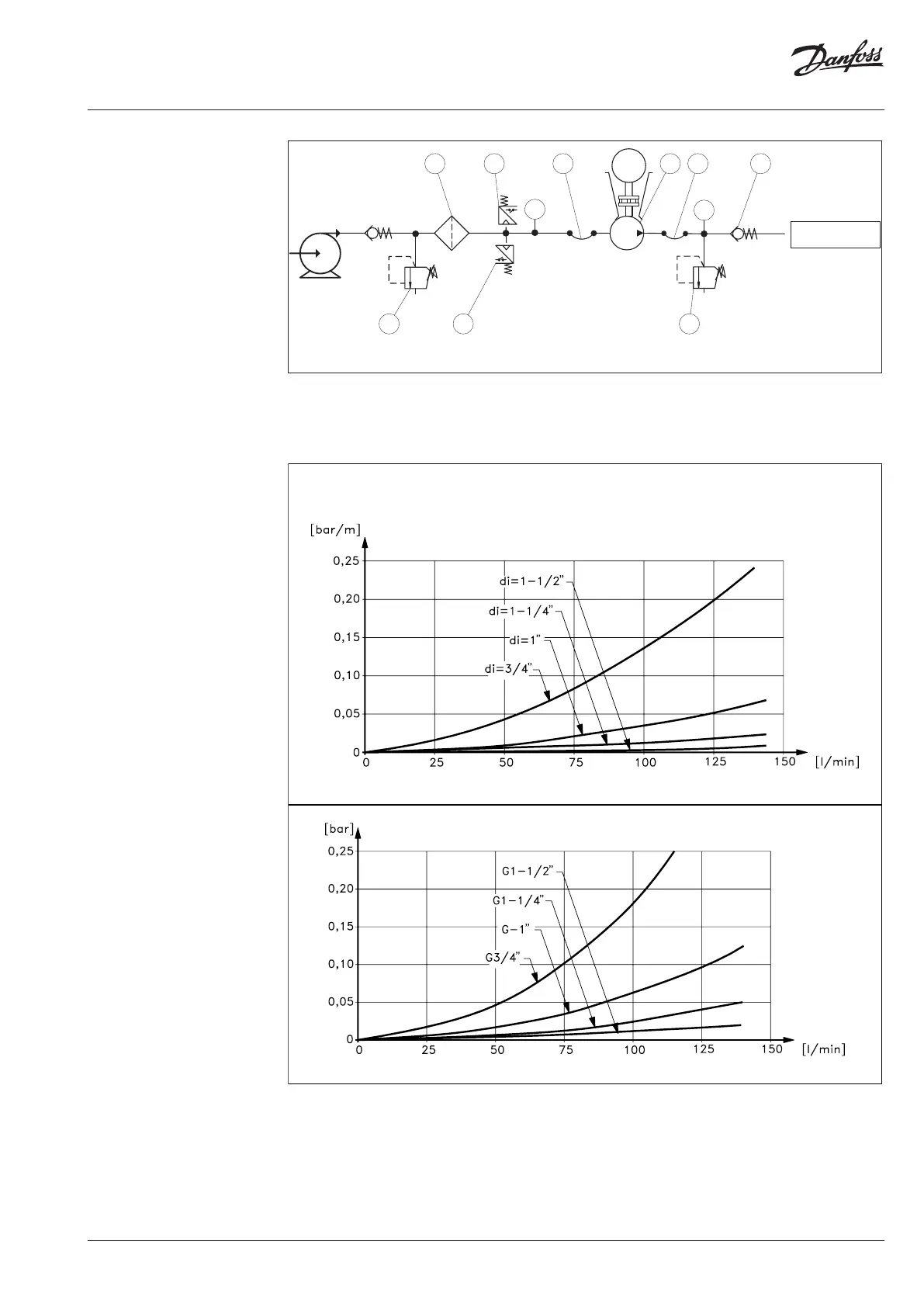

2.6 General guidelines for calculation of pressure losses
M
2
SYSTEM
1 4 5 5 6
73
PI
PI
8
In smooth pipes and hoses
In 90° bends
