Instructions
4 | AN245986497033en-000801 - 8510197P05J
© Danfoss | DCS (CC) | 2020.10
SH 180 - 240 - 295 - 300 - 380
DSH 240 - 295 - 381
SY/ SZ 240 - 300 - 380
SM / SZ 185 versions with electronic module
SM / SZ 115 - 125 - 160 - 175 - 185 versions with thermostat

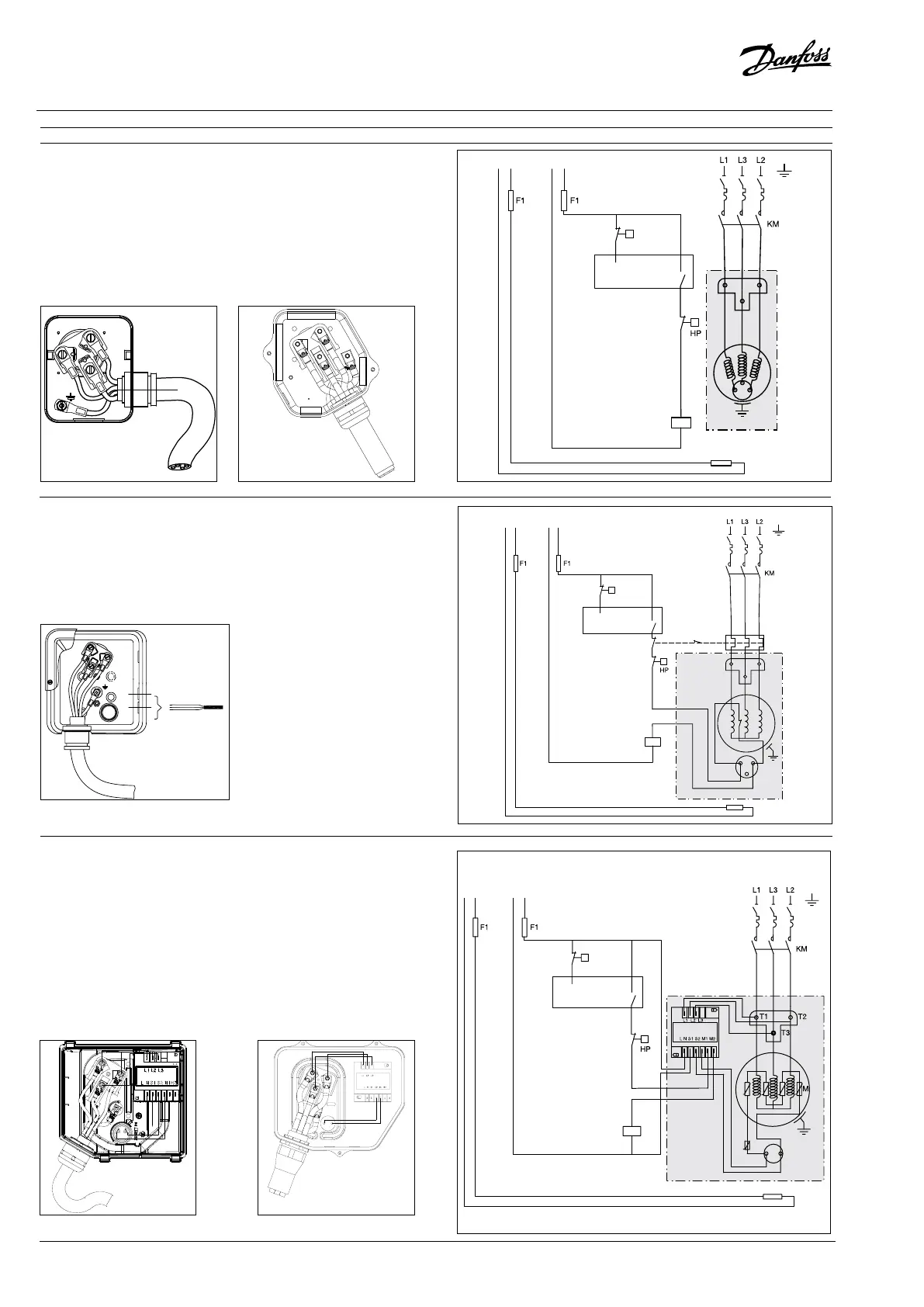

These Danfoss scroll compressor motors are protected by an external
module protecting against phase loss/reversal, over heating and high
current draw.
M
T1
T3
T2
SSH
CC
LPS
UC
SS
KM
DSH / SH / WSH 090 - 105 - 120 - 140 *- 161* - 184*
SM 084 - 090 - 100 - 110 - 112 - 120 - 124 - 147 - 148 - 161
SZ 084 - 090 - 100 - 110 - 120 - 147 - 148 - 161
All models except DSH / SH/
WSH140-3 & 161-3 & 184
All models except
SH380-3
DSH / SH / WSH140-3 & 161-3
& 184
SH380-3
These Danfoss scroll compressors are protected against overheating and
overloading by an internal safety motor protector. However, an external
manual reset overload protector is recommended for protecting the circuit
against over-current.
SSH
LPS
UC
KM
CCSS
T1
T2
T3
1
2
M
ThM
F2
These Danfoss scroll compressors are provided with a bimetallic single
pole single throw thermostat which is located in the motor windings.
Because the thermostat is an automatic reset device, it must be wired
in a lockout safety circuit with a manual reset to restart the unit. For
over-current protection, an external manual reset overload protector
must be used.
MPM
S
SSH
CCSS
LPS
UNIT
CONTROLLER
KM
DGT
CB
4 - Electrical connections details
