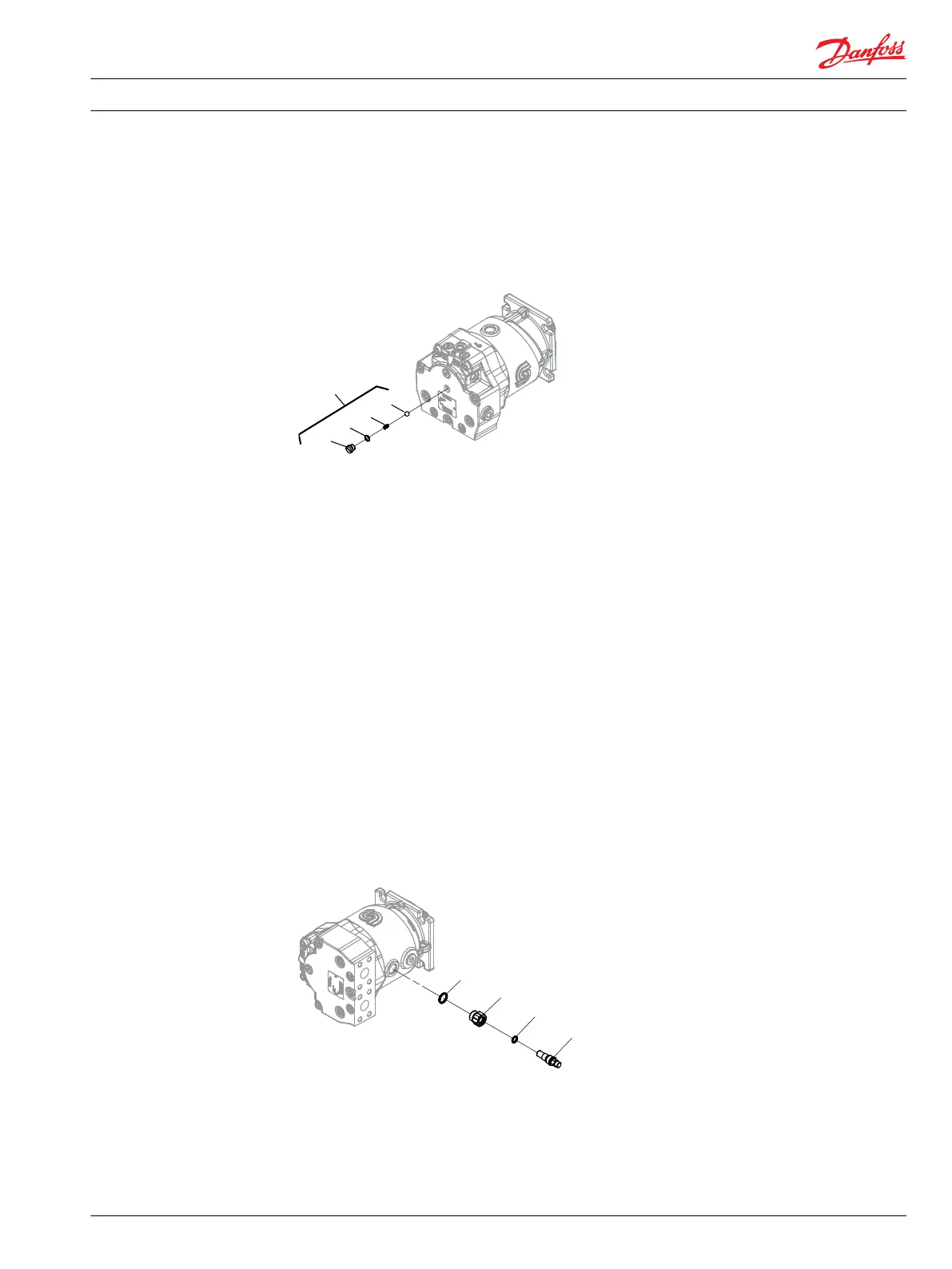

Reassembly
1. Install the ball in end cap.
2. Install the springs.
3. Lubricate and install new seal O-ring on the plug. Install the plug and torque to 20 N•m (15 lbf•ft).
Anticavitation valve
V010
V020
V030
d
s
V040
V000
20 N•m
[15 lbf•ft]
Speed Sensor PPU
Removal
1. Disconnect the electrical connector.
2. Loosen the sensor lock nut with an 1-1/16 inch hex wrench.
3. Unscrewing the speed sensor (W40) from the motor housing.
Inspection
Inspect parts for damage or foreign material and sealing surfaces on the adapter plug for nicks or
scratches.
Reassembly
1. Always install a new O-ring before installing the sensor.
2. Reinstall the speed sensor (with lock nut and O-ring) into the housing. Adjust the gap between the
sensor and the magnetic speed ring as instructed in the section “Speed Sensor Adjustment” and torque
the sensor lock nut.
Speed Sensor PPU assembly
W050
W030
W040A
W040
d
s
h1-1/16 hex
13 N•m [10 lbf•ft]
Service Manual
TMM Transit Mixer Axial Piston Motor, Size 070/084/089
Minor Repair
L1211037 • Rev AC • Apr 2014 27
