6 fixed speeds, max. speed 60 Hz
1 speed = 6 Hz (10%), 2 speeds = 12 Hz (20%),
3 speeds = 18 Hz (30%), 4 speeds = 24 Hz (40%),
5 speeds = 42 Hz (70%), 6 speeds = 60 Hz (100%)
Connection examples

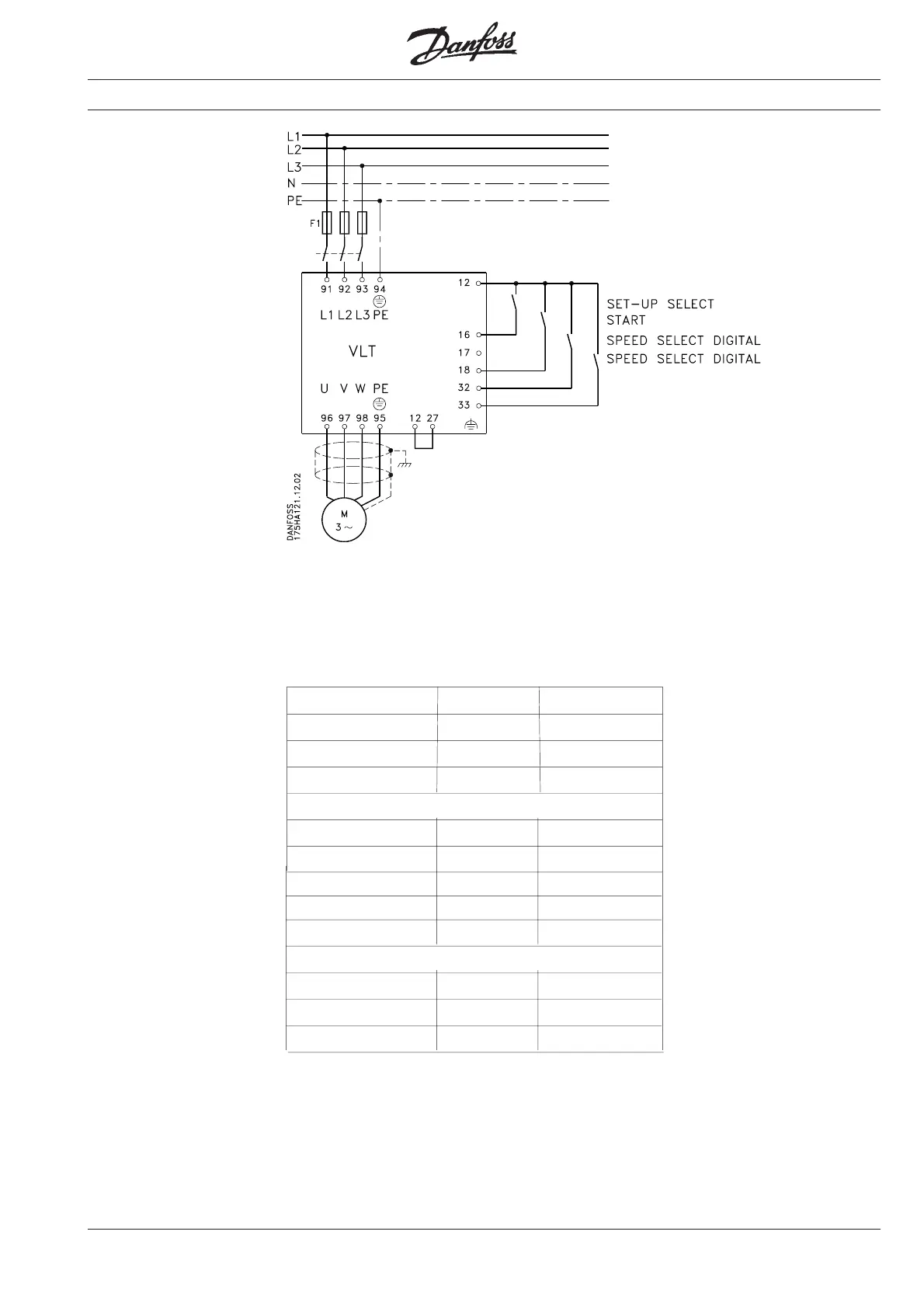

Example 6:
NB: Screen for control cables must be
connected as described in the chapter on
EMC-correct installation.
All settings are based on factory settings, but
motor data (parameters 103-105) must be set
according to the motor connected
The following must be programmed:
Function Parameter no. Parameter value
Setup selection 001 multi setup
Setup selection 400 setup selection
Speed selection 406 digital ref. selection
Select setup 1
Max. frequency 202 60 Hz
Digital reference 1 205 10%
Digital reference 2 206 20%
Digital reference 3 207 30%
Digital reference 4 208 40%
Select setup 2
Max. frequency 202 60 Hz
Digital reference 5 205 70%
Digital reference 6 205 100%
