The VLT
®
frequency converter distin-
guishes between different types of refer-
ences.

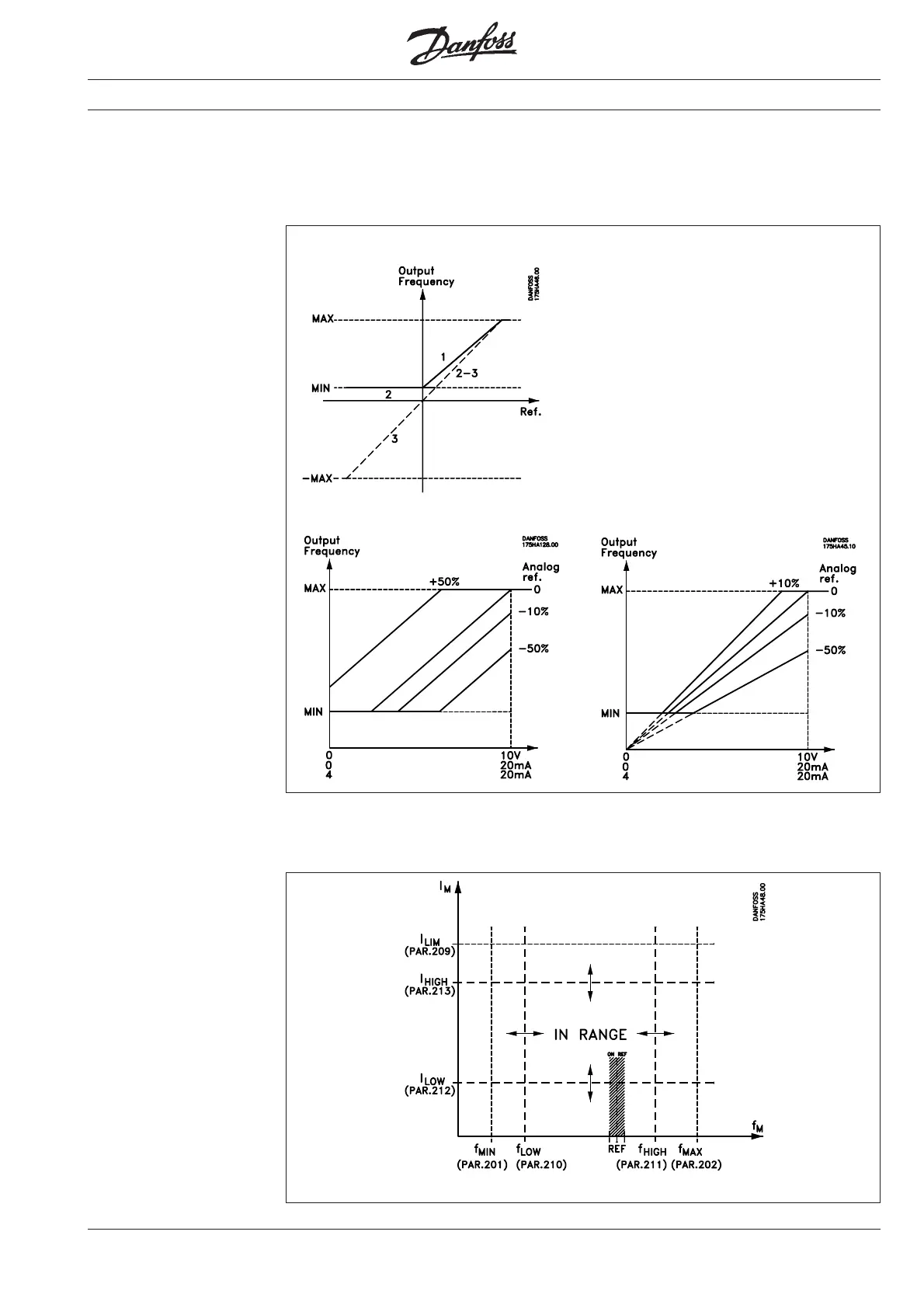

Note that the analogue reference type is
Inside / outside range
References and limits
Group 2..
Analogue reference
(parameter 411)
Digital reference type
(parameter 204) Relative reference Data [1]
1. Linear between min. and max. Data [0]
2 .Proportional to reference with min.
and max. limitation. Data [1]
3. Proportional to reference with reversing.
Data [2]
programmed in group 4...
Unused references are set at 0, or
switched out (parameters 205-208, 412-
413).
frequency converter can be programmed
to give output signals if the limits are
exceeded (parameters 407-410).
Frequency and current range
In this group you can define a range within
which you want your motor to run. The
Group description
