Connection examples

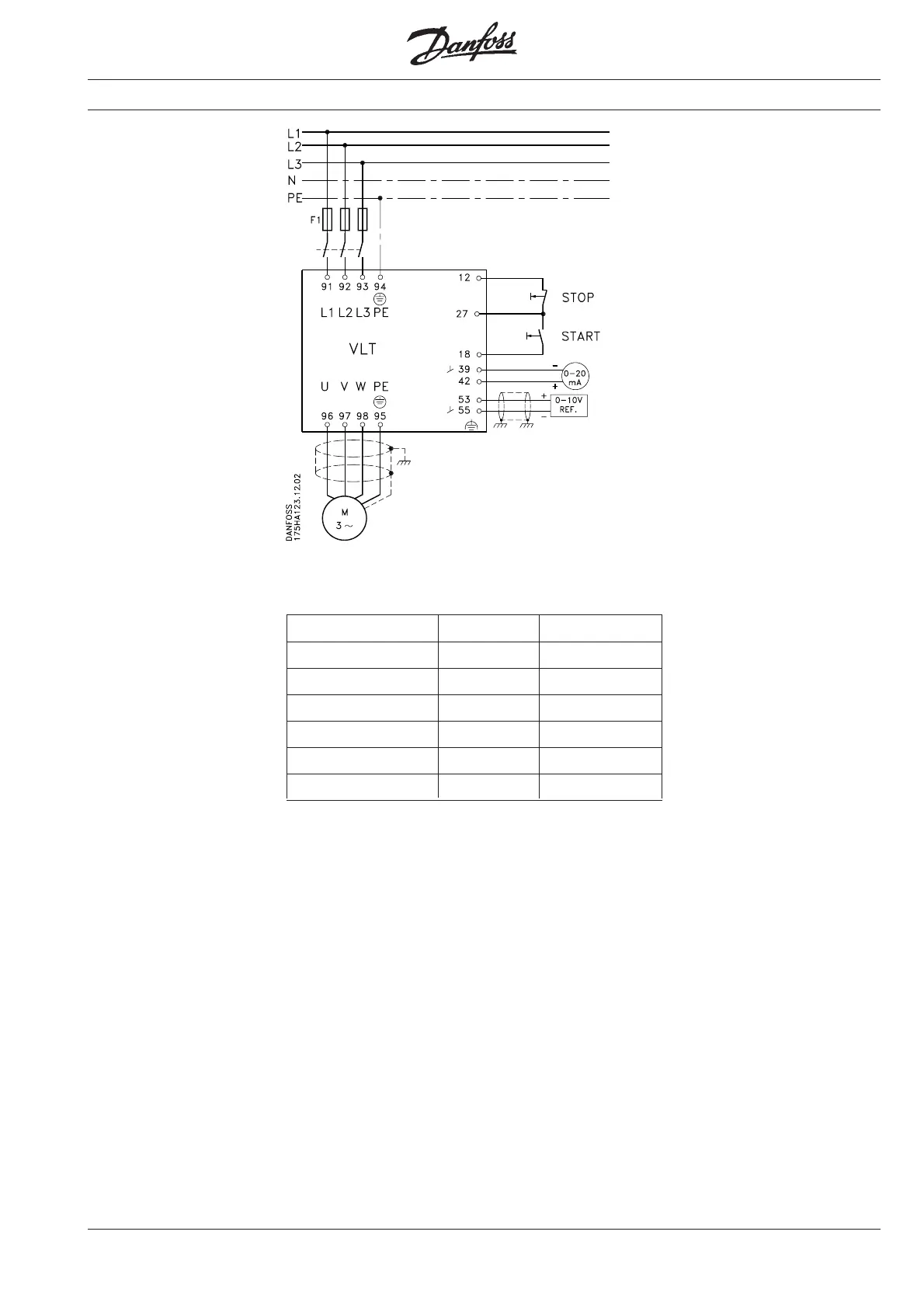

Example 4:
NB: Screen for control cables must be
connected as described in the chapter on
EMC-correct installation.
All settings are based on factory settings, but
motor data (parameters 103-105) must be set
according to the motor connected.
The following must be programmed:
Function Parameter no. Parameter value
STOP 404 STOP
START 402 Latched START
0-I
MAX
~ 0-20 mA 407 0-I
MAX
Ref. 0-10 V 412 0-10 V
3 conductor START/STOP, 0-20 mA output signal ~ (0-I
MAX
),
0-10 V Reference: ~ 0-100% speed
