The following must be programmed:
Function Parameter no. Parameter value
0-F
MAX
~ 4-20 mA 407 F
MAX
= 4-20 mA
Ref. 4-20 mA 413 4-20 mA

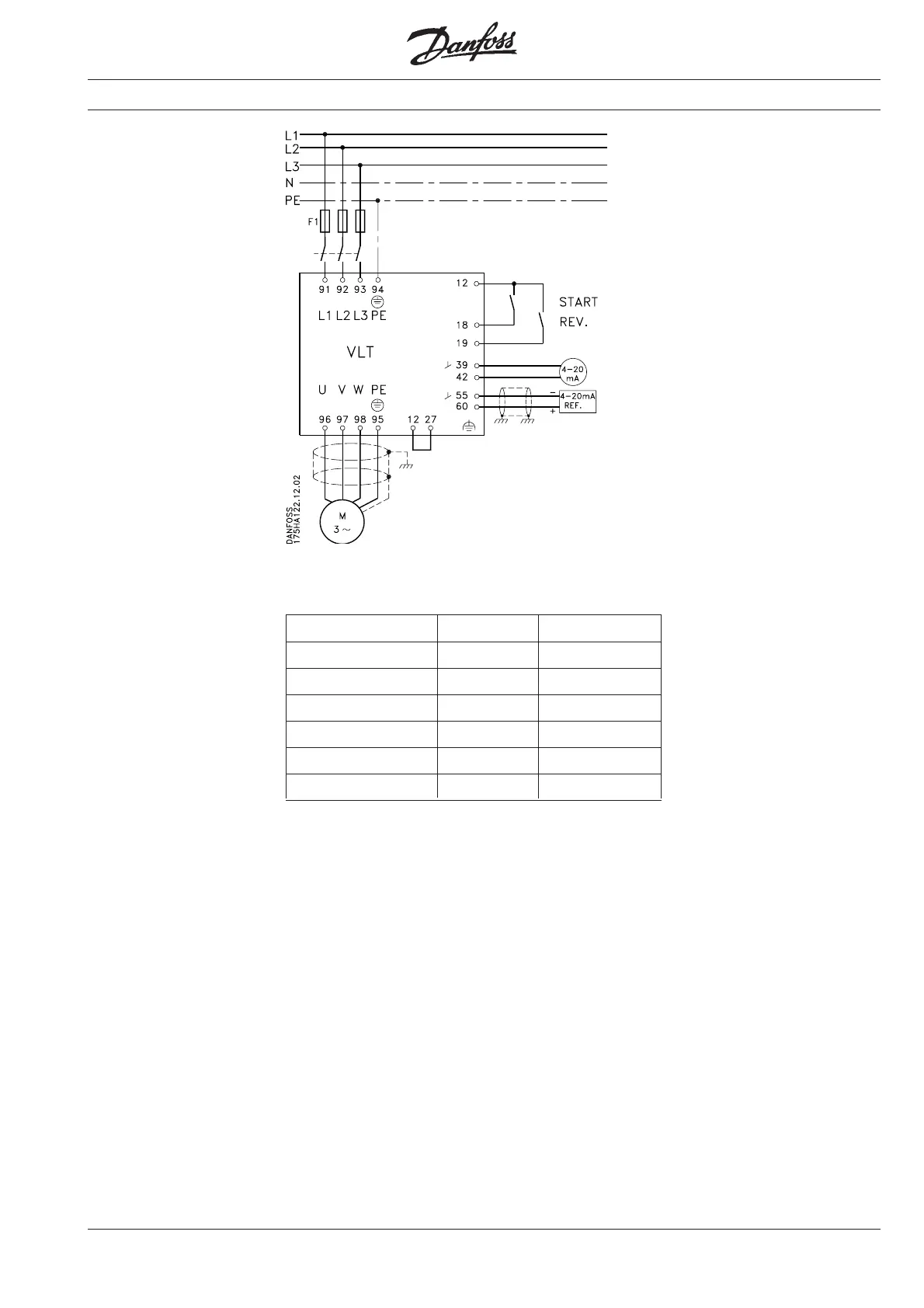

Connection examples
Example 2:
START/STOP REVERSING, 4-20 mA output signal (0-f
MAX
)
Reference: 4-20 mA ~ 0-100% speed
NB: Screen for control cables must be
connected as described in the chapter on
EMC-correct installation.
All settings are based on factory settings,
but motor data (parameters 103-105) must
be set according to the motor connected.
