46 MG.30.A7.02 - VLT
®
is a registered Danfoss trademark
Connection of VLT
®
Mains and motor
connection for
VLT
®
types 3002-3052
The max. cable cross-section and equiva-
lent max. length and terminal size are
shown in the technical data section, pp.
25-29.

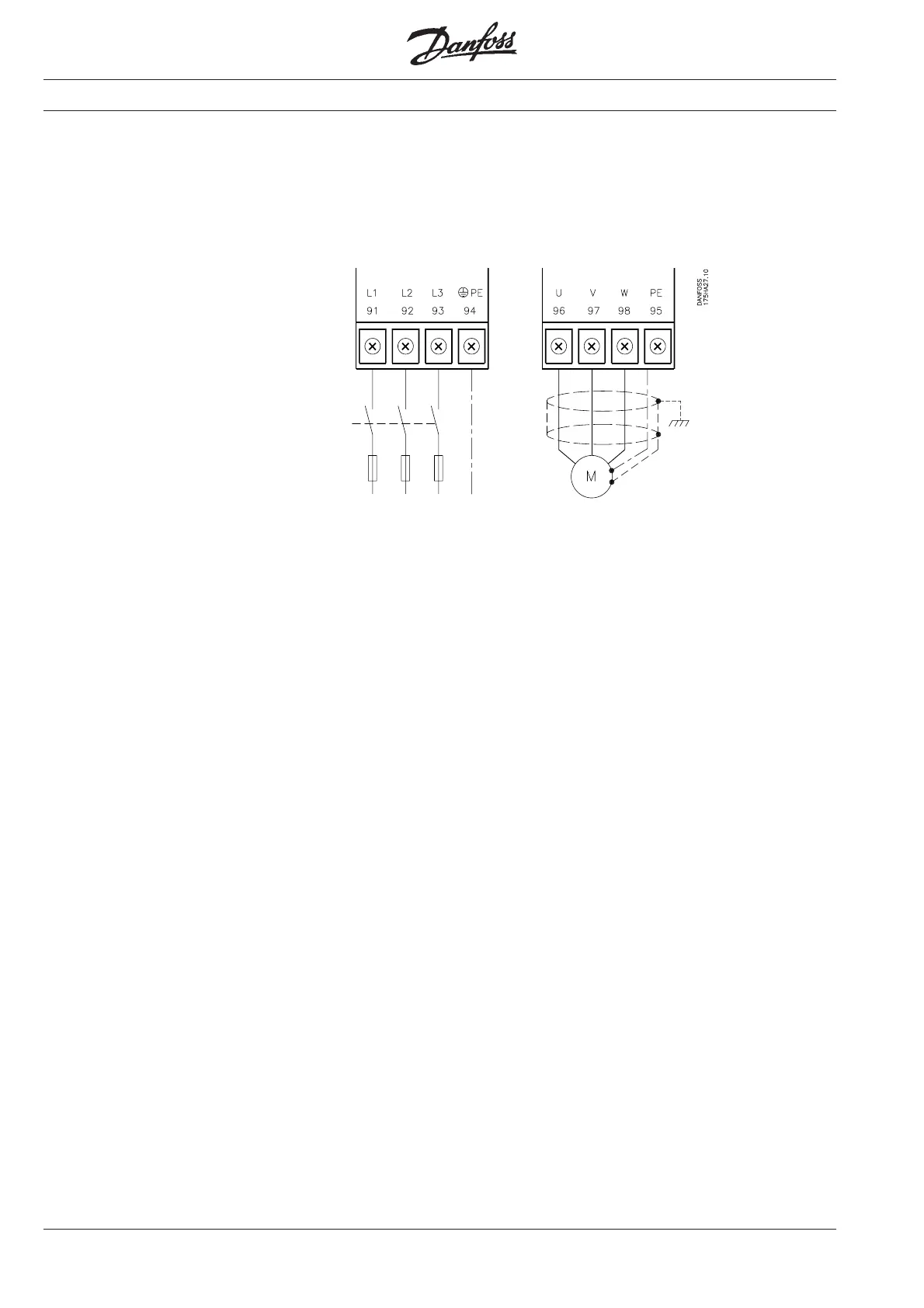

The mains supply and the motor are
connected in accordance with the drawing
below.
Mains Motor
