19
Type Input Overall Dimensions Mounting Dimensions
VAC H W D a b c d
Chassis 380
Chassis 460
NEMA 1 230 Refer to page 20
NEMA 1 380
NEMA 1 460
Type Input Overall Dimensions Mounting Dimensions
VAC H W D a b c d
NEMA 12 230 Refer to page 20
NEMA 12 380
NEMA 12 460
inches (mm)
W
a
b
c
0.98
(25)
0.33
(8.5)
Ø0.57
(14.5)
D
H
d
W
a
b
D
H
d
c
0.33
(8.5)
0.39
(10)

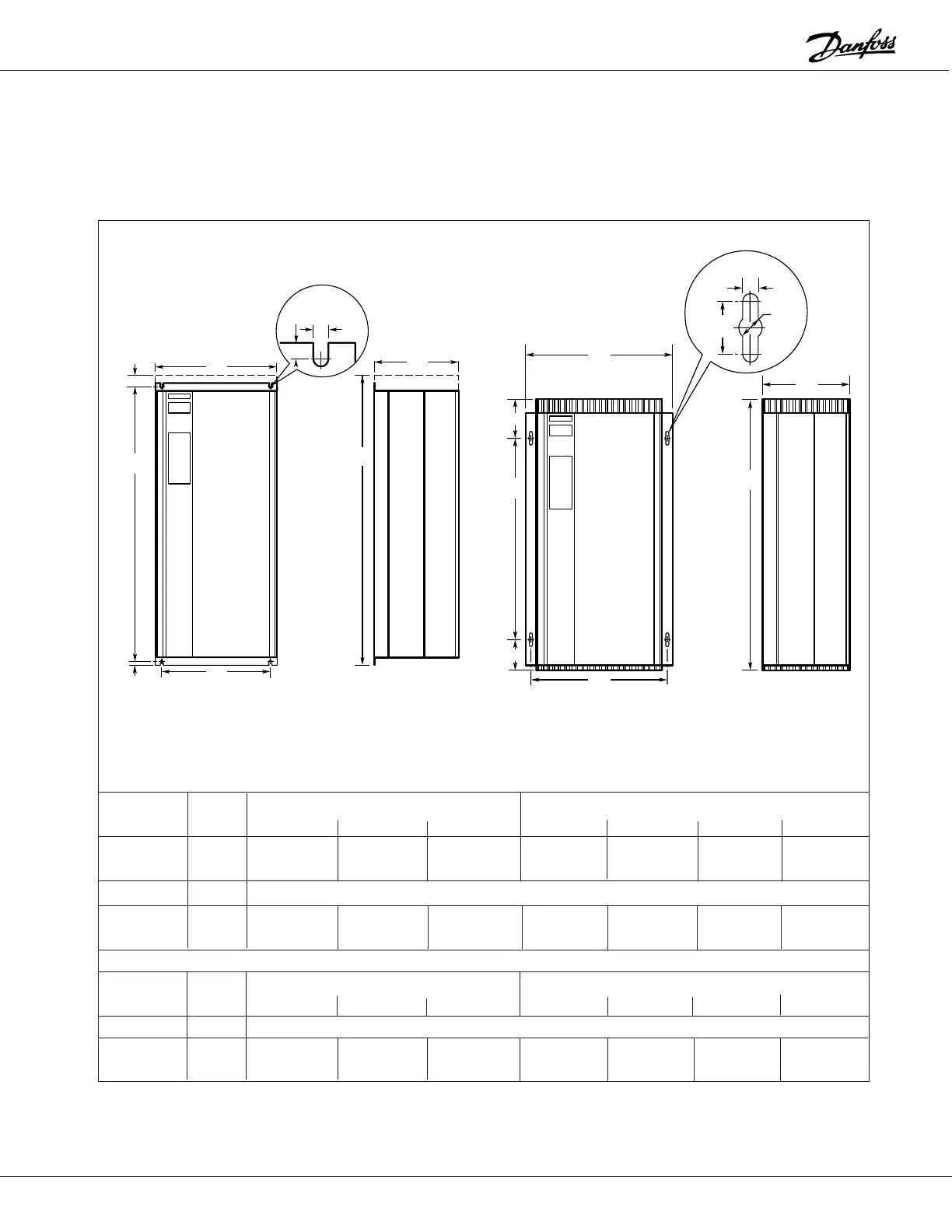

Drawing 1 Drawing 2
Drawing 1
Drawing 2
38.39 (975) 12.09 (307) 11.65 (296) 10.63 (270) 36.61 (930) 1.38 (35) 0.39 (10)
37.40 (950) 12.09 (307) 11.65 (296) 10.63 (270) 36.61 (930) 0.39 (10) 0.39 (10)
37.01 (940) 15.67 (398) 11.02 (280) 14.72 (374) 27.17 (690) 7.09 (180) 2.76 (70)
Dimensions
VLT 3542, 3552, 3562, 380 and 460 V
(for 230 V units refer to page 20)
