VLT 3006
inches (mm)

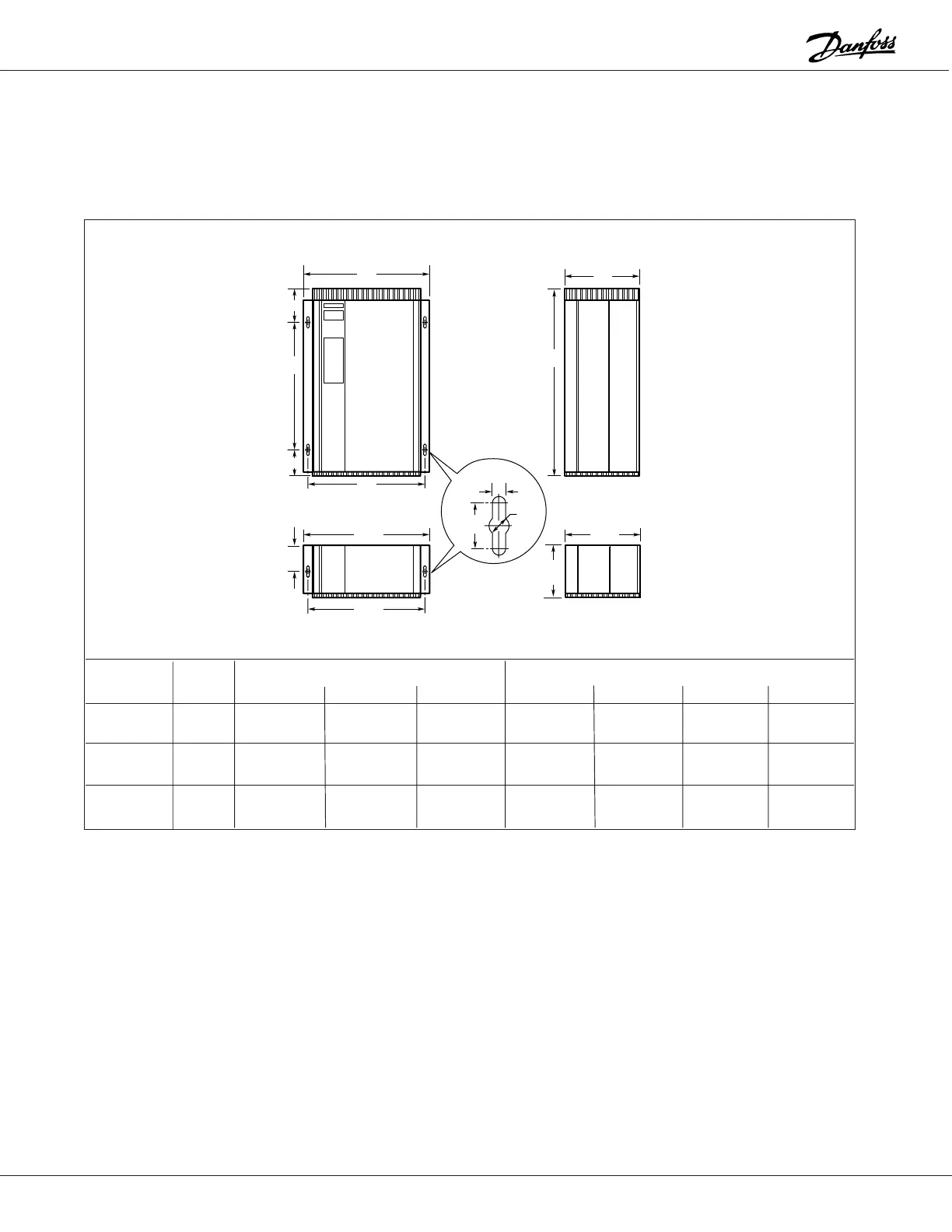

VLT 3506 Dimensions
W
a
b
c
0.98
(25)
0.33
(8.5)
2.28
(58)
10.16
(258)
Ø0.57
(14.5)
D
H
d
11.18
(284)
7.01
(178)
4.53
(115)
Add-On Module
Type Input Overall Dimensions Mounting Dimensions
VAC H W D a b c d
Chassis* 460 17.32 (440) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 2.17 (55) 2.17 (55)
NEMA 1* 460 19.69 (500) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 3.35 (85) 3.35 (85)
NEMA 12 460 20.87 (530) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 4.53 (115) 3.35 (85)
* Additional dimensions for Fan Option: Chassis 2.36 (60) to H; 2.36 (60) to c;
NEMA 1 1.18 (30) to H; 1.18 (30) to c.
