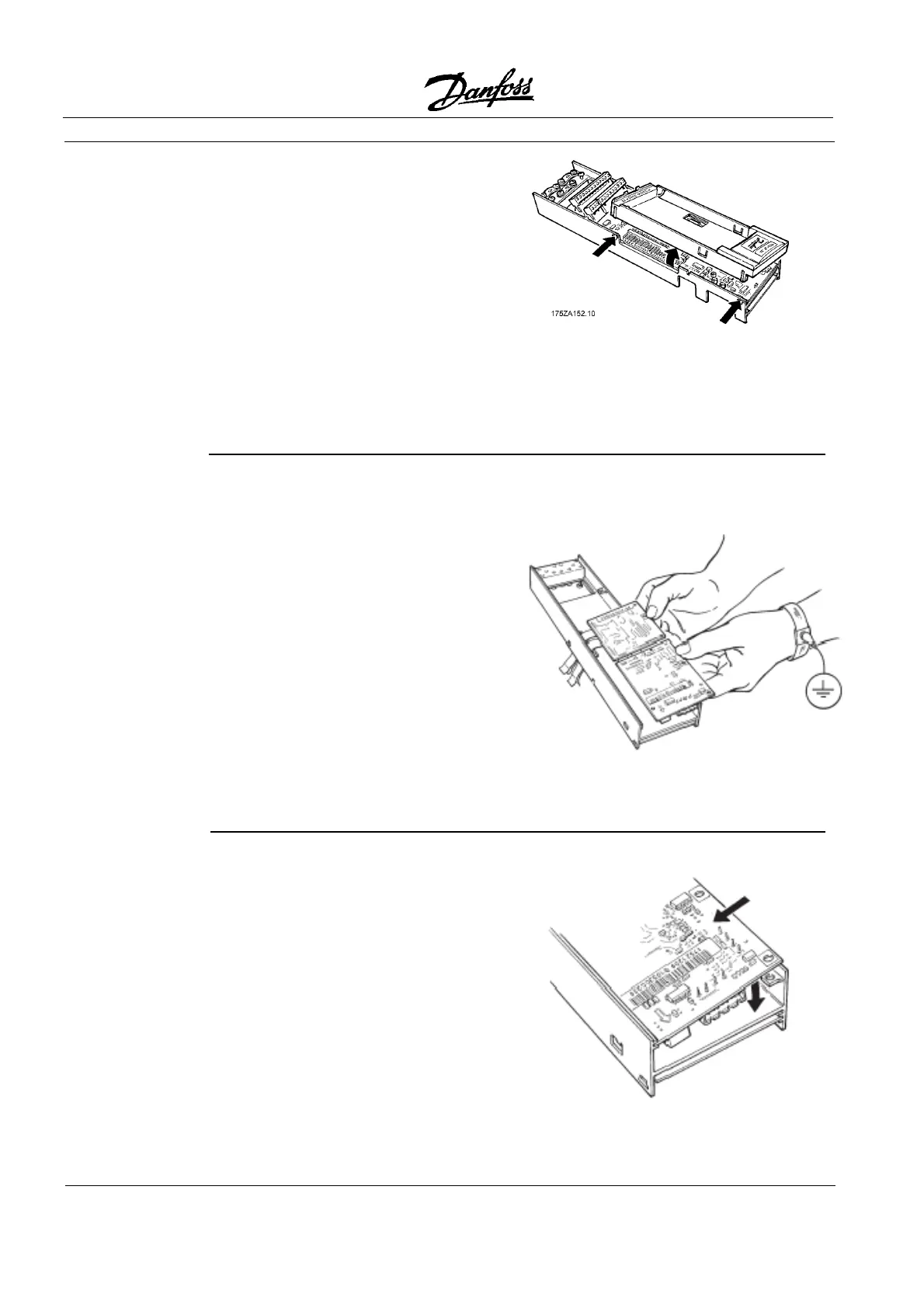

• Insert edge of LonWorks cards into slot
in side of cassette and align screw
holes.
9. Insert
LonWorks
Card
• Route ribbon cables from LonWorks
memory card through slot at side of
control board cassette.
8. Ribbon
Cable
Routing
7. Remove
LCP Cradle
IP20/NEMA 1 and Bookstyle
• Carefully push in tabs at corners of LCP
cradle to release clips. Pull out to
disengage clips and lift cradle free.
