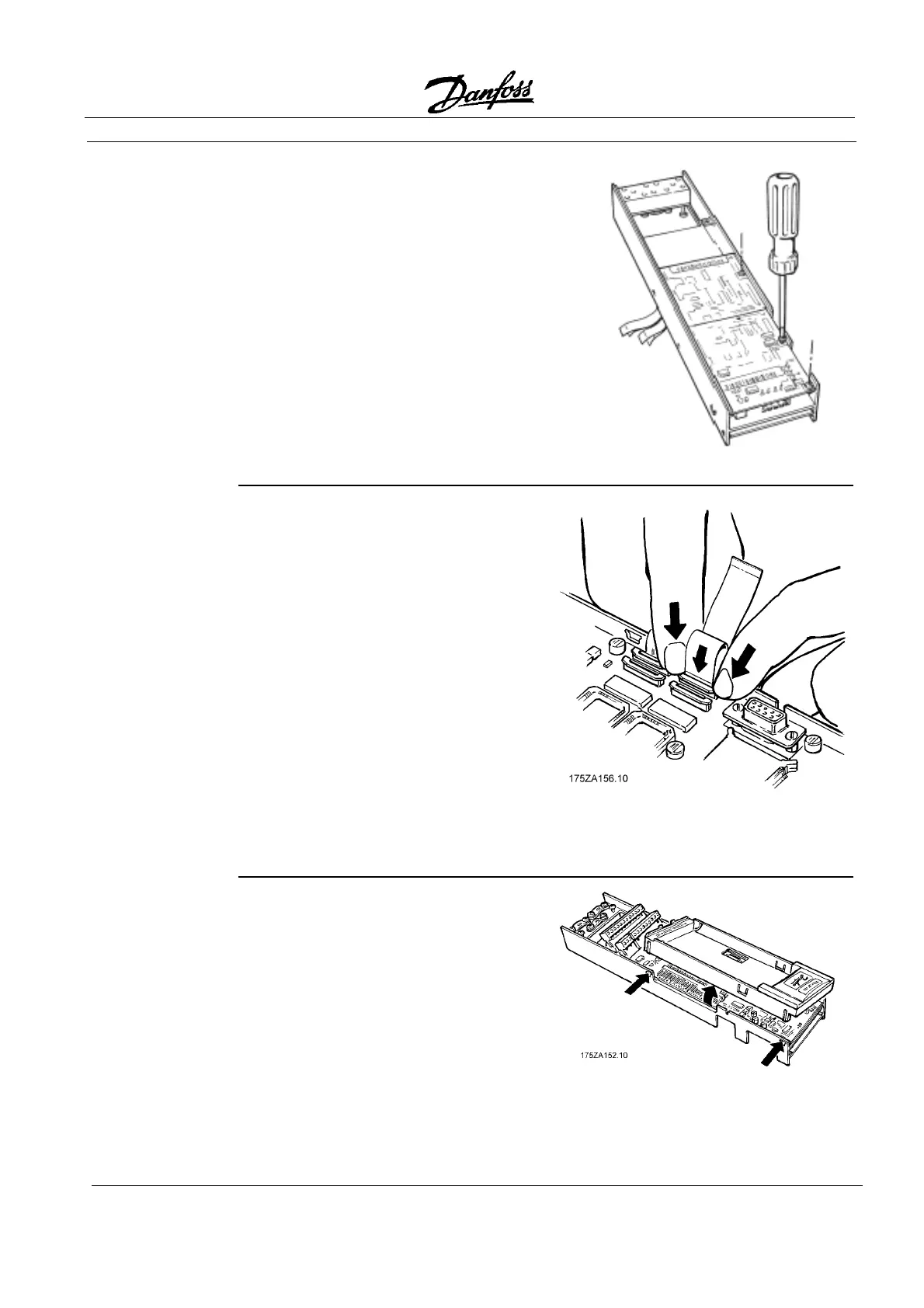

11. Install
Ribbon
Cable on
VLT Control
Board
• Be sure not to twist or crimp ribbon
cables.
• Insert cables into corresponding
sockets and fasten in accordance with
directions in step 5.
IP20/NEMA 1 and Bookstyle
• Insert cradle clips into holes in cassette.
• Push down on cradle to snap it into
place.
12. Install
LCP Cradle
• Secure LonWorks card with 3
self-tapping screws and washers
provided using Torx T-10 screw driver.
Tighten to 8 in-lbs (0.9 Nm).
10. Secure
LonWorks
Card
