130BD572.11
1
5
6
7
9
10
11
12
14
16
17
18
19
20
21
2
3
4
8
13
15
1 Local control panel (LCP) 12 AC capacitor current transducers
2 Active filter card (AFC) 13 Heatsink fan
3 Line power contactors 14 Line power terminals
4 Soft-charge resistors 15 Line power disconnect
5 RFI differential mode filter 16 Electrical fuses
6 RFI common mode filter 17 LC inductor
7 Current transformer (CT) 18 HI inductor
8 Line power bus bars to drive output 19 Power card
9 AC capacitors 20 Control card
10 RFI 21 LCP cradle
11 Lower DC capacitor bank

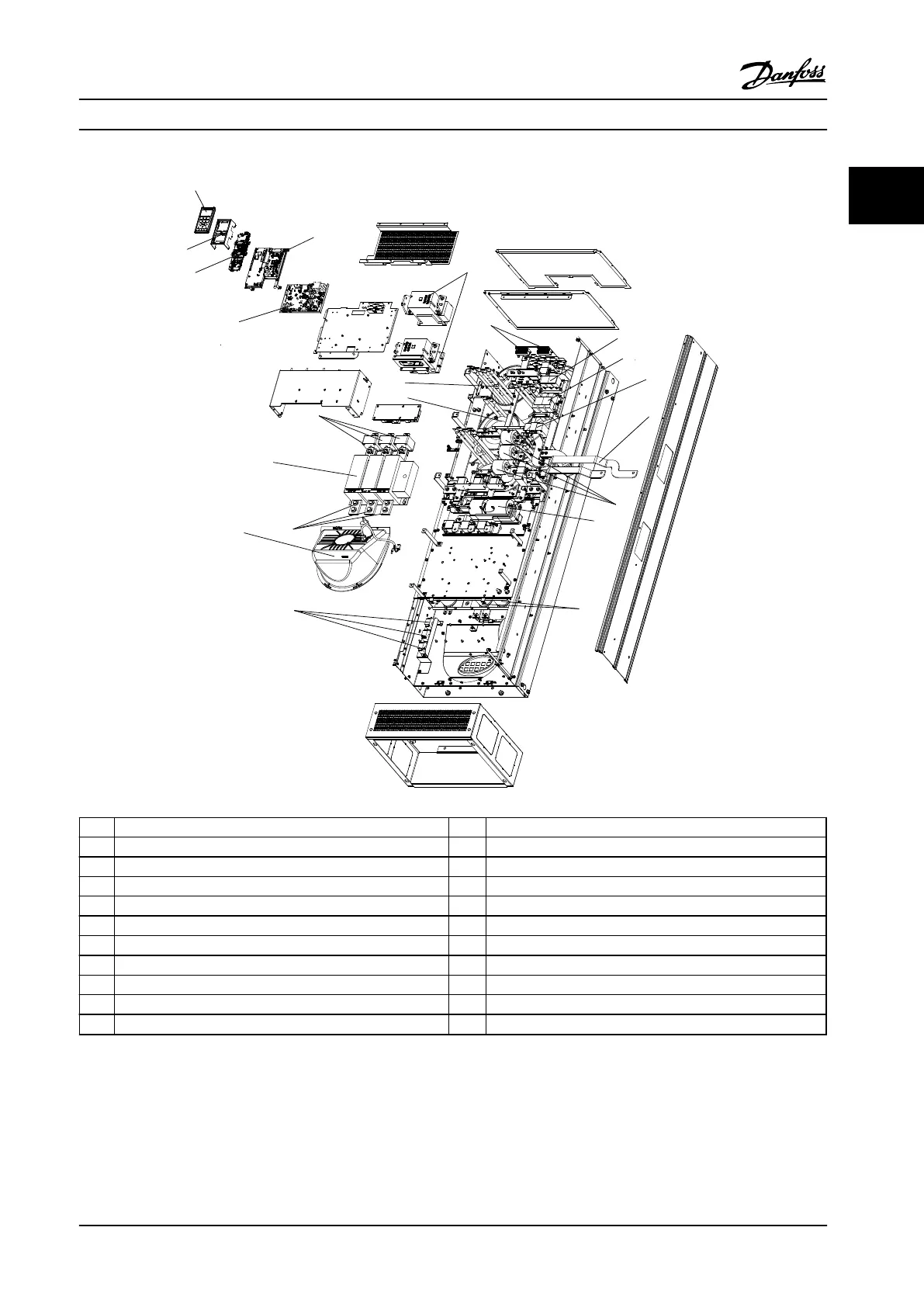

Figure 2.4 Frame Size E9 Filter Enclosure
