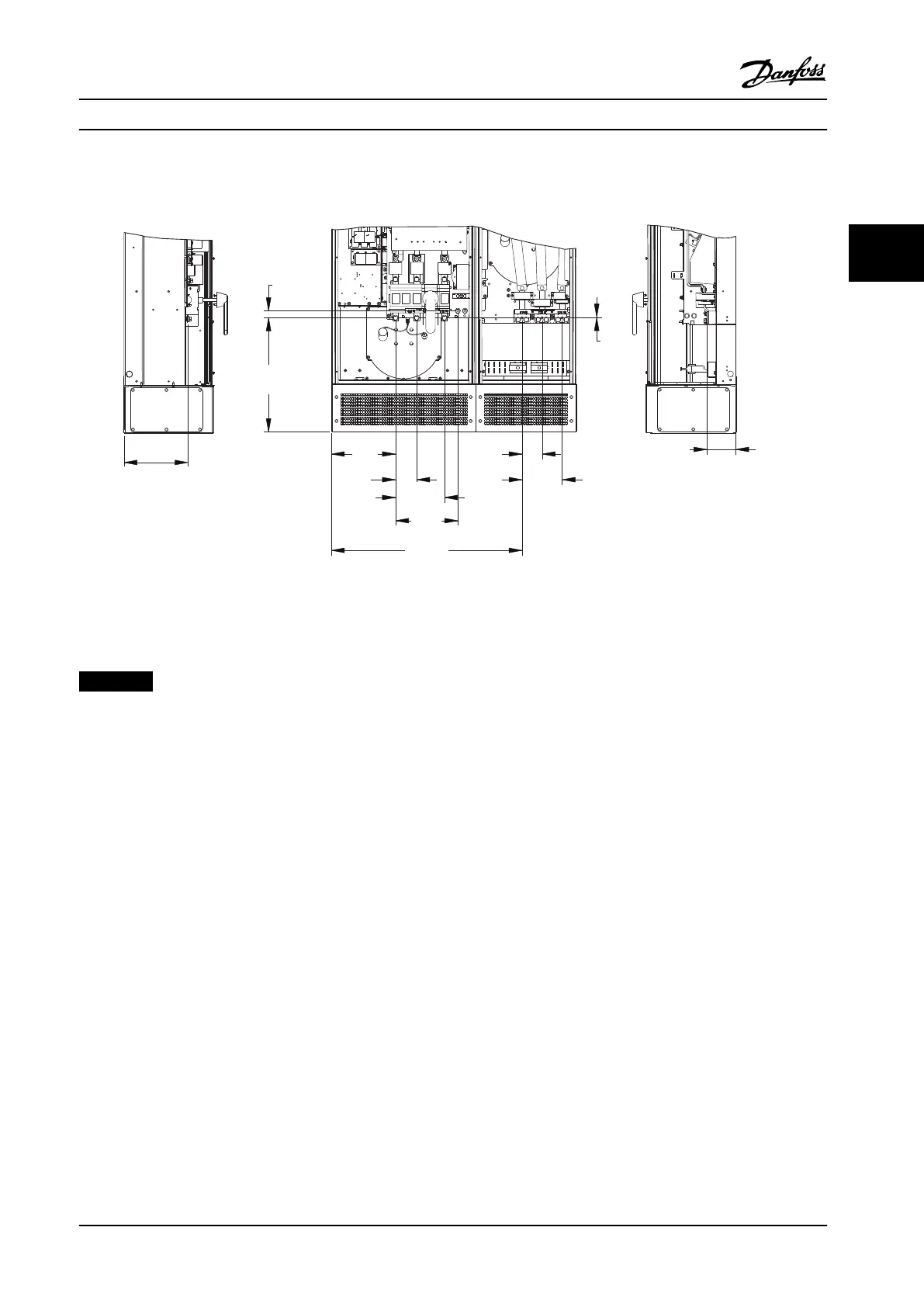

3.3.4 Terminal Locations - Frame Size D13
267.4
[10.5]
476.0
[18.7]
29.0
[1.1]
MAINS INPUT TERMINALS
268.1
[10.6]
88.0
[3.5]
204.0
[8.0]
259.7
[10.2]
796.3
[31.3]
83.5
[3.3]
167.0
[6.6]
.8
[.0]
120.2
[4.7]
MOTOR
OUTPUT TERMINALS
130BC603.10
Figure 3.13 Frame Size D13 Terminal Locations
Allow for bend radius of heavy power cables.
NOTICE!
All D-frames are available with standard input terminals, fuse, or disconnect switch
Installation Installation Manual
MG37A322 Danfoss A/S © Rev. 04/2015 All rights reserved. 29
3 3
