VLT
®
FCD Series
1. Prepare the adaptor plate for mounting on
the motor by drilling the fixing holes and
the hole for the cables.
2. Mount the plate on the motor with the nor-
mal terminal box gasket.
3. Knock out the 4 screw holes for mounting
the adaptor plate (outer holes)
4. Mount the terminal box onto the motor by
the 4 sealing screws and the gasket sup-
plied.

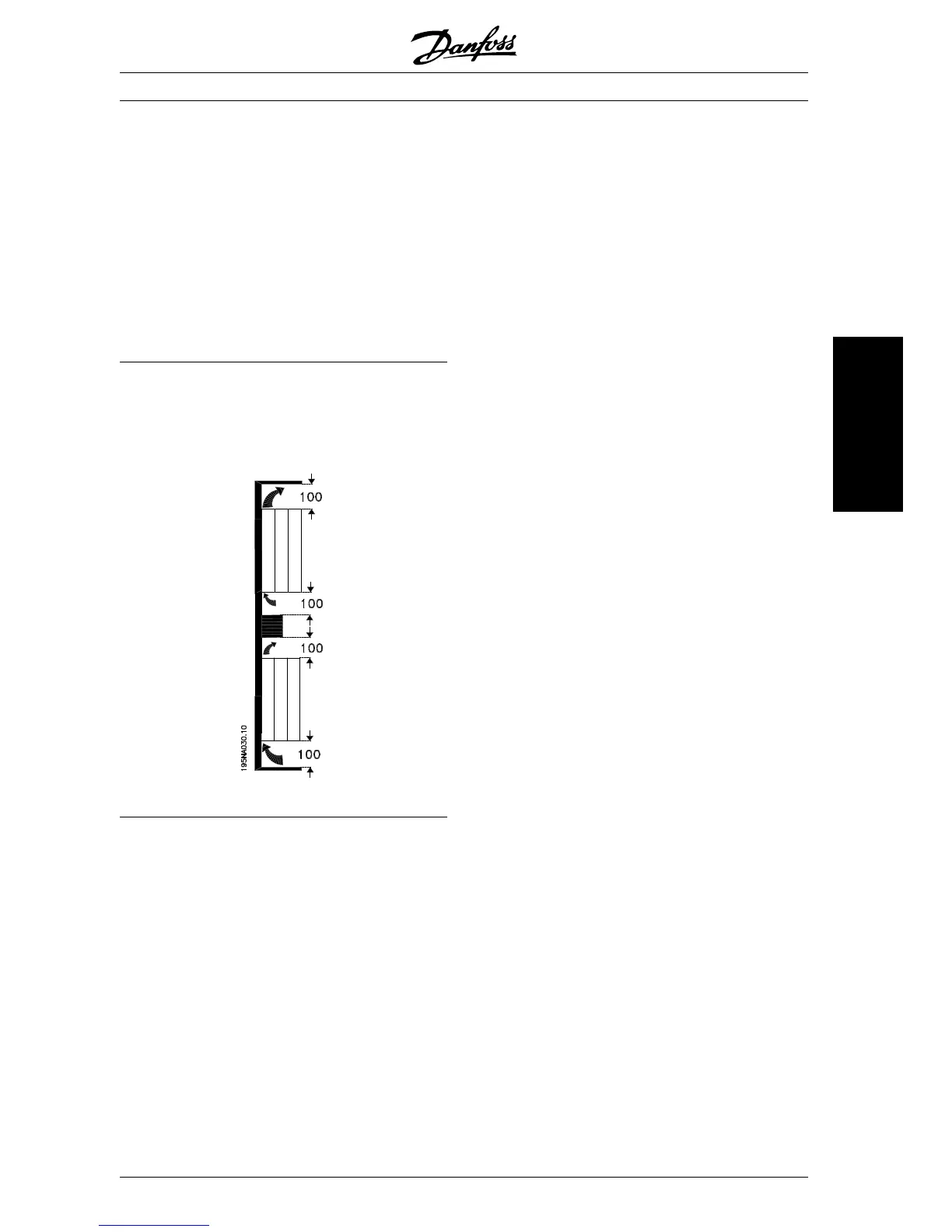

■ Spacing for mechanical installation
All units require a minimum of 100 mm air from other
components above and below the enclosure.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
31
Installation
