Danfoss VLT FCD 330 Design Guide

VLT
®
FCD Series

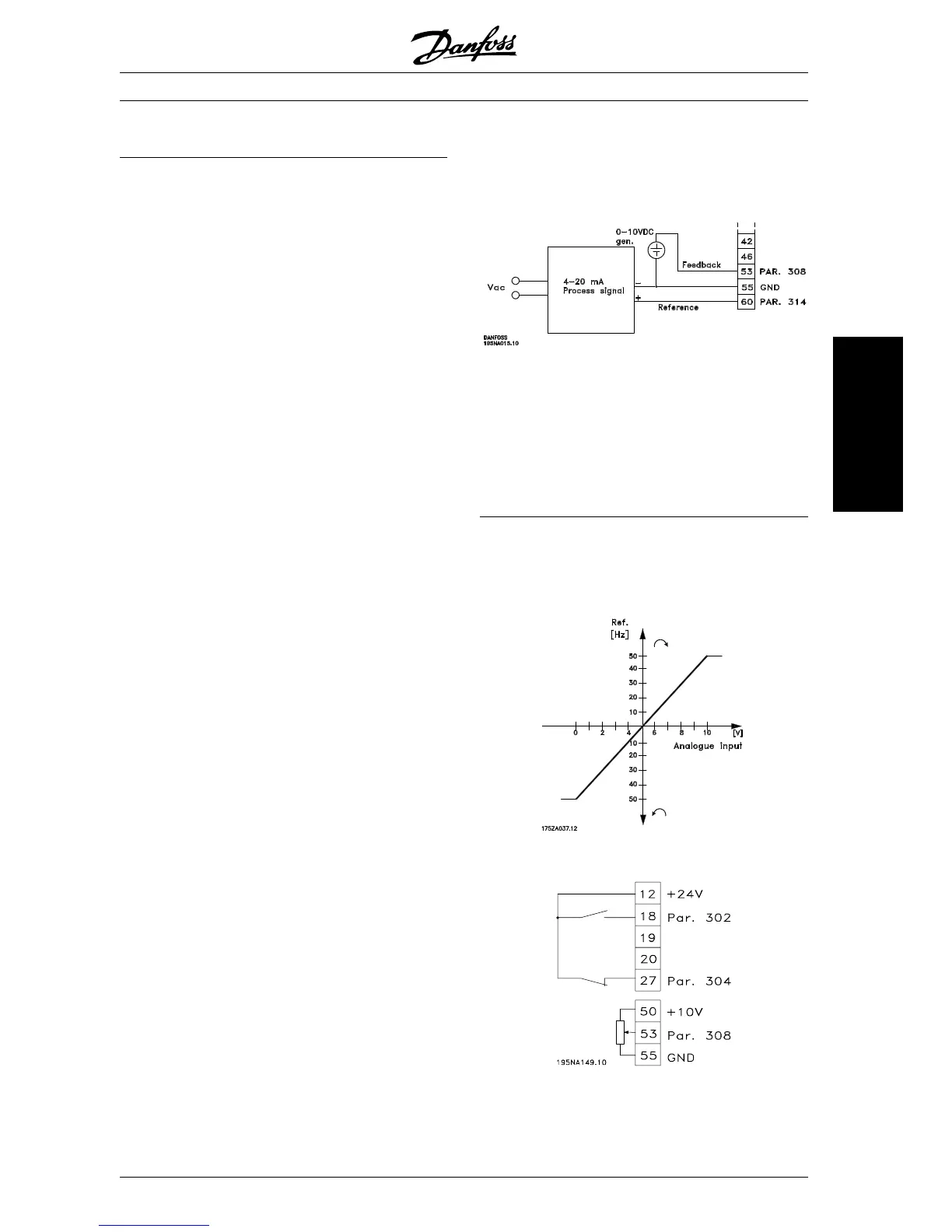

Par. 316 Terminal 60, max. scaling =20mA ■ 4-20 mA reference
4-20 mA reference on terminal 60 and speed feed-
back signal on terminal 53.
Par. 100 Configuration = Speed closed loop [1]
Par. 308 Analog input = Feedback [2]
Par. 309 Terminal 53, min. scaling = 0 Volt.
Par. 310 Terminal 53, max. scaling = 10 Volt.
Par. 314 Analog input = Reference [1]
Par. 309 Terminal 60, min. scaling = 4 mA.
Par. 310 Terminal 60, max. scaling = 20 mA.
■ 50 Hz anti-clockwise to 50 Hz clockwise.
With internally supplied potentiometer.
Par. 100 Configuration = Speed regulation open
loop [0]
MG.04.A1.02 - VLT is a registered Danfoss trade mark
45
Installation
