Danfoss VLT HVAC Basic Drive FC 101

L1
L2
L3
PE
Min. 0.0248 in
2
[16 mm
2
]
Equalizing cable
Control cables
All cable entries in
one side of panel
Grounding rail
Cable insula-
tion stripped
Output con-
tactor, etc.
Motor cable
Motor, 3 phases and
PLC etc.
Panel
Line power supply
Min. 7.9 in [200 mm]
between control
cable, line cable
and between line power
motor cable
PLC
Protective ground
Reinforced protective ground
130BB761.10

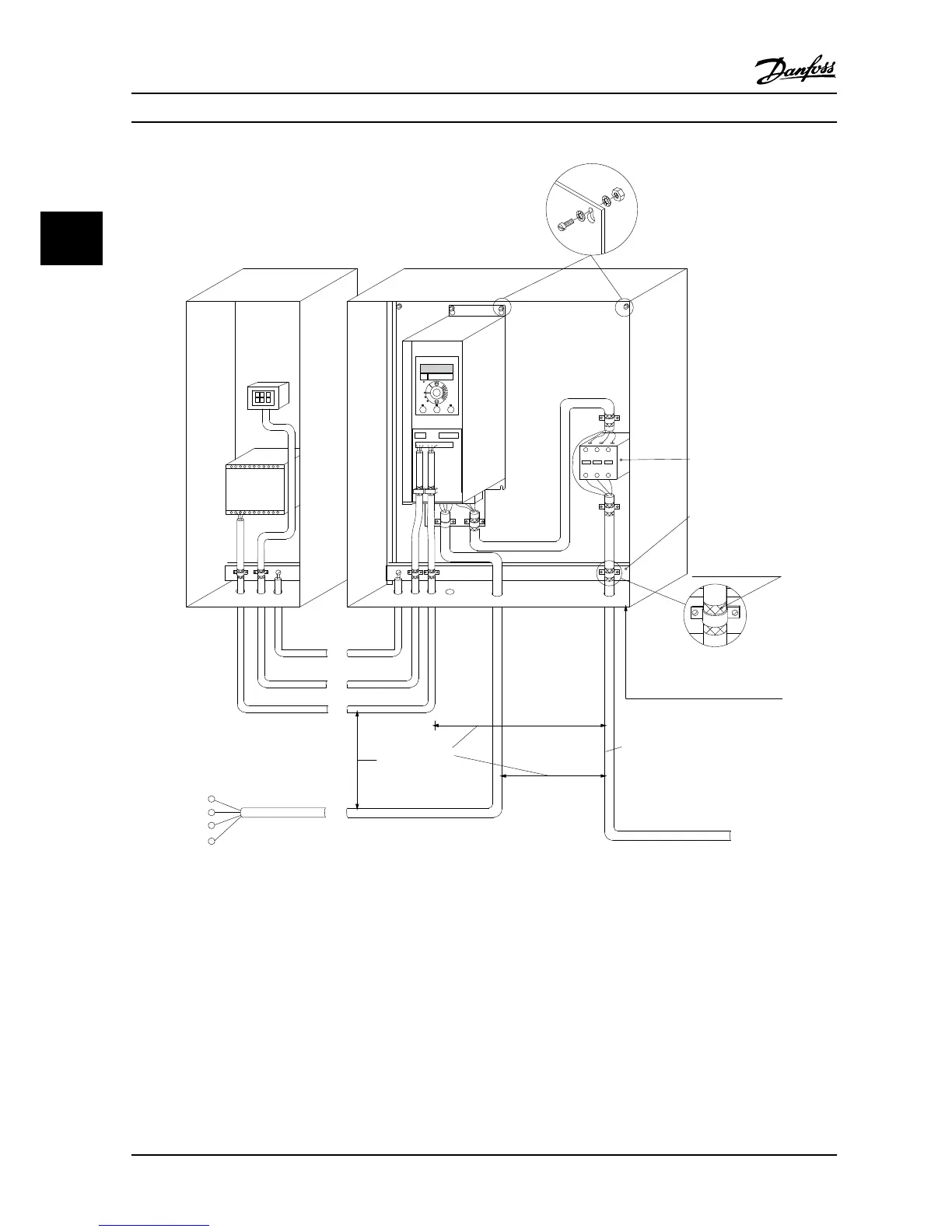

Figure 3.21 EMC-compatible Electrical Installation
For North America, use metal conduits instead of shielded cables.
Installation VLT®HVAC Basic Drive FC 101
22 Danfoss A/S © 08/2014 All rights reserved. MG18A622
33
