461308061 (001) 05/2012
14
9
9A
INSTRUCTION FOR THE INSTALLER
GAS CONNECTION
The installation must be in accordance with local
gas and electricity authority regulations and
these instructions.
A duplicate data label and wiring diagram are
contained in this booklet. Please attach these
labels to an accessible surface near by the
appliance for easy reference.
GAS CONNECTION
The appliance is adjusted to work at gas indicated
on the label which is applied on the back of the
appliance.
This appliance is supplied with a replacement set
for use with another gas, but conversion must
only be undertaken by qualied person.

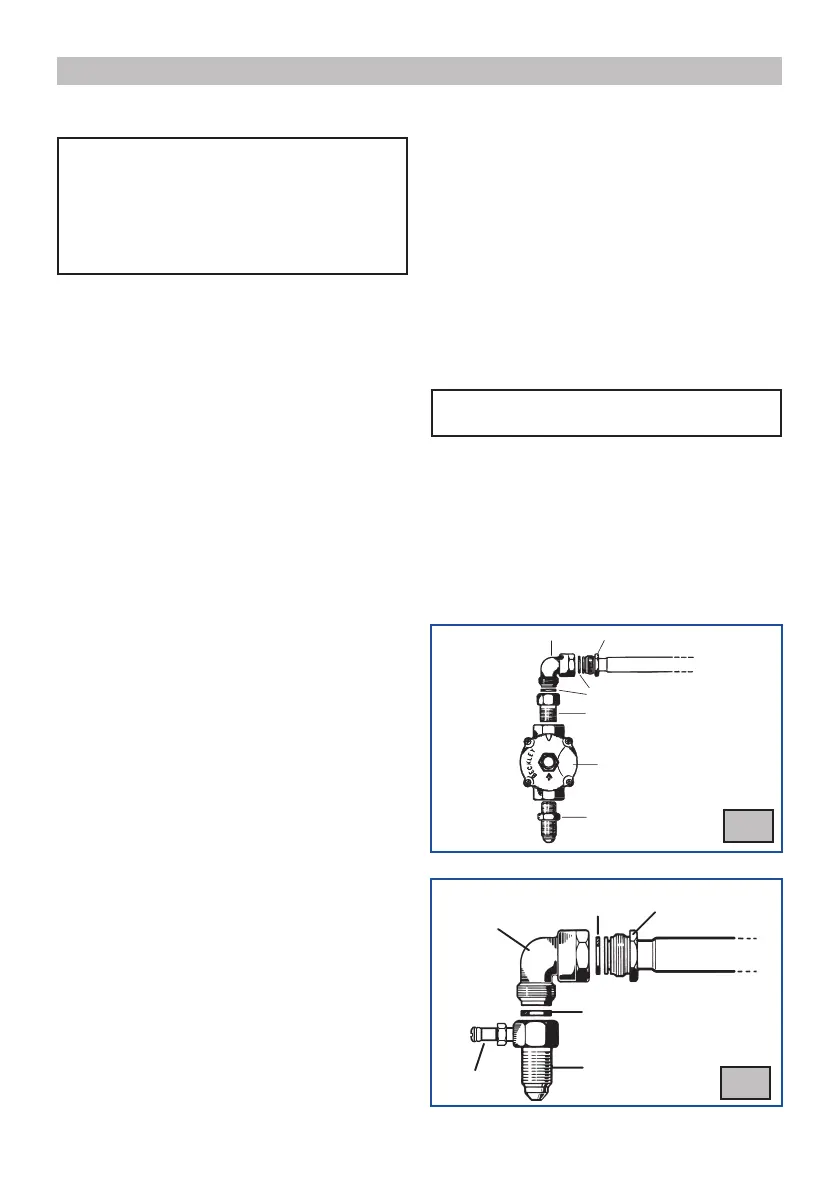

Installation for Natural gas
Connected regulator (B) to tting (A) which is then
tted to elbow (F). Ensure arrow on regulator point
in the direction shown.
Fitting (D) to be supplied by installer (g. 9). Adjust
regulator to give test-point pressure given on data
label with one large or one medium burner alight
at maximum.
Installation for Propane Gas
Connect by using a copper pipe starting, from the
threaded tting of elbow (F) (g. 9A).
Installation using exible connection
As an option, the oven may be installed with a exible
hose assembly ABEY AS 1869, Class D, Nominal
Bore size 10 mm (AGA 5516).
1) The hose is connected to the appliance at the rear
to the right hand corner and faces downwards.
2) An isolating tap and pressure regulator must be
xed to the rear wall and the exible pipe attached
by means of a union connector.
3) The gas connection and isolating tap must be
accessible to a service person or inspector.
ELECTRICAL CONNECTION
The connection of the cooker to mains is effected via a
cable located underneath the appliance.
Whenever the socket or the installation does not
have available an earthing connection, such
connection must be provided according to the
local Standards. The Manufacturer declines
every responsability if these standards are not
used.
In case you have to substitute the supply cable, the
installer must keep the earth wire must be longer
than the phase wires:
The operation of the appliance must be tested
before leaving
