D4-9 / D4-9X Four-Post Lifts 38 P/N 5900251 — Rev. A1— August 2021
5.
Switching to the Attachment Plate and the Power Unit
: Put the Vibration Dampener
into place, and then secure the Power Unit using four Hex Head Bolts (5530010), M8 Flat Washers
(5545012), and M8 Nuts (5535001).
Hand tighten the Bolts and Nuts.
6. Find the Safety Placard and Zip Tie from the Parts Box, then use the Zip Tie to attach the Safety
Placard to one of the unused holes on the Power Unit Plate.

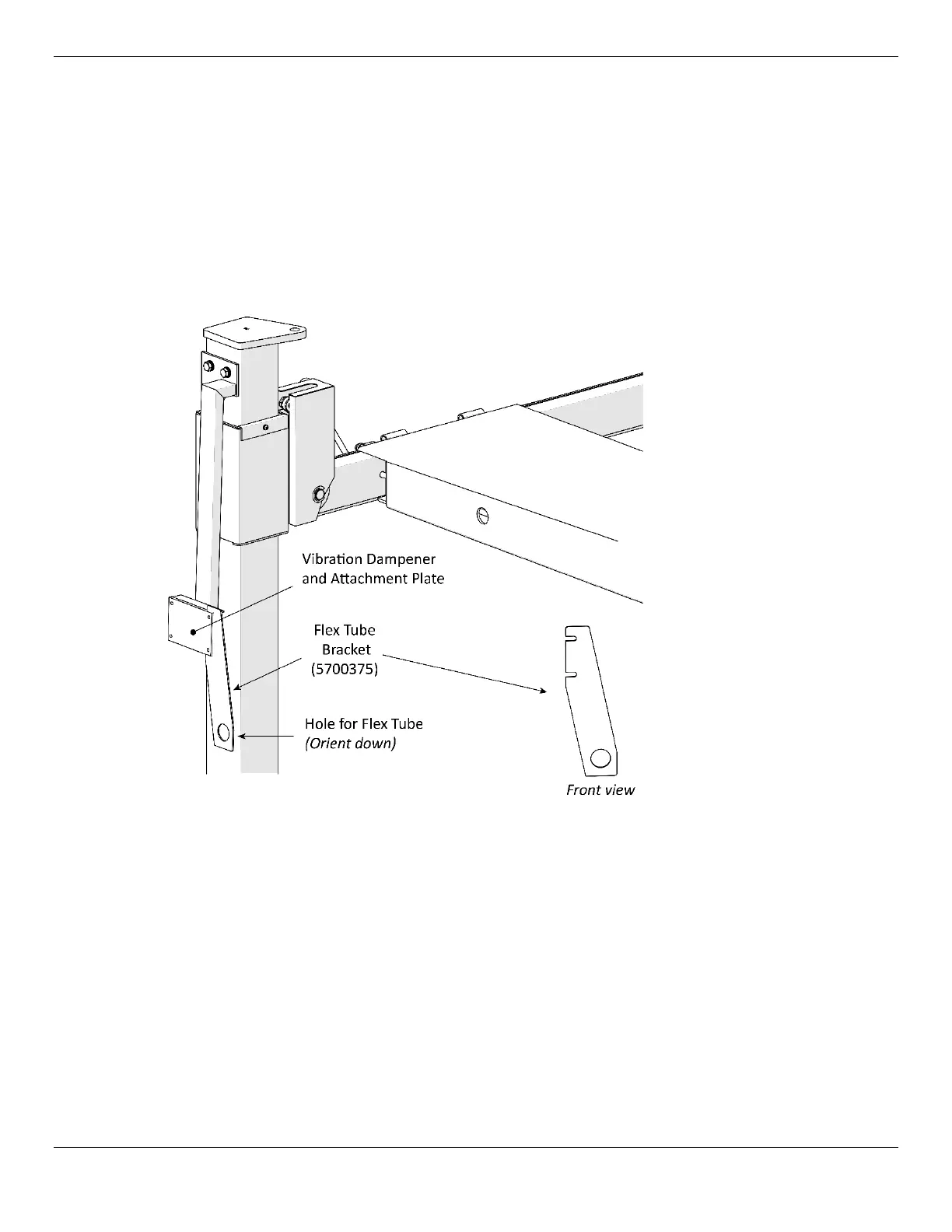

7. Slide the Flex Tube Bracket over the two Bolts that are closest to the side of the Powerside
Runway.
The Bracket can go on either side of the Vibration Dampener.
Not necessarily to scale. Not all components shown.
8. Securely tighten the Bolts and Nuts.
Do not connect the Power Unit to a power source at this point.
