D4-9 / D4-9X Four-Post Lifts 70 P/N 5900251 — Rev. A1— August 2021

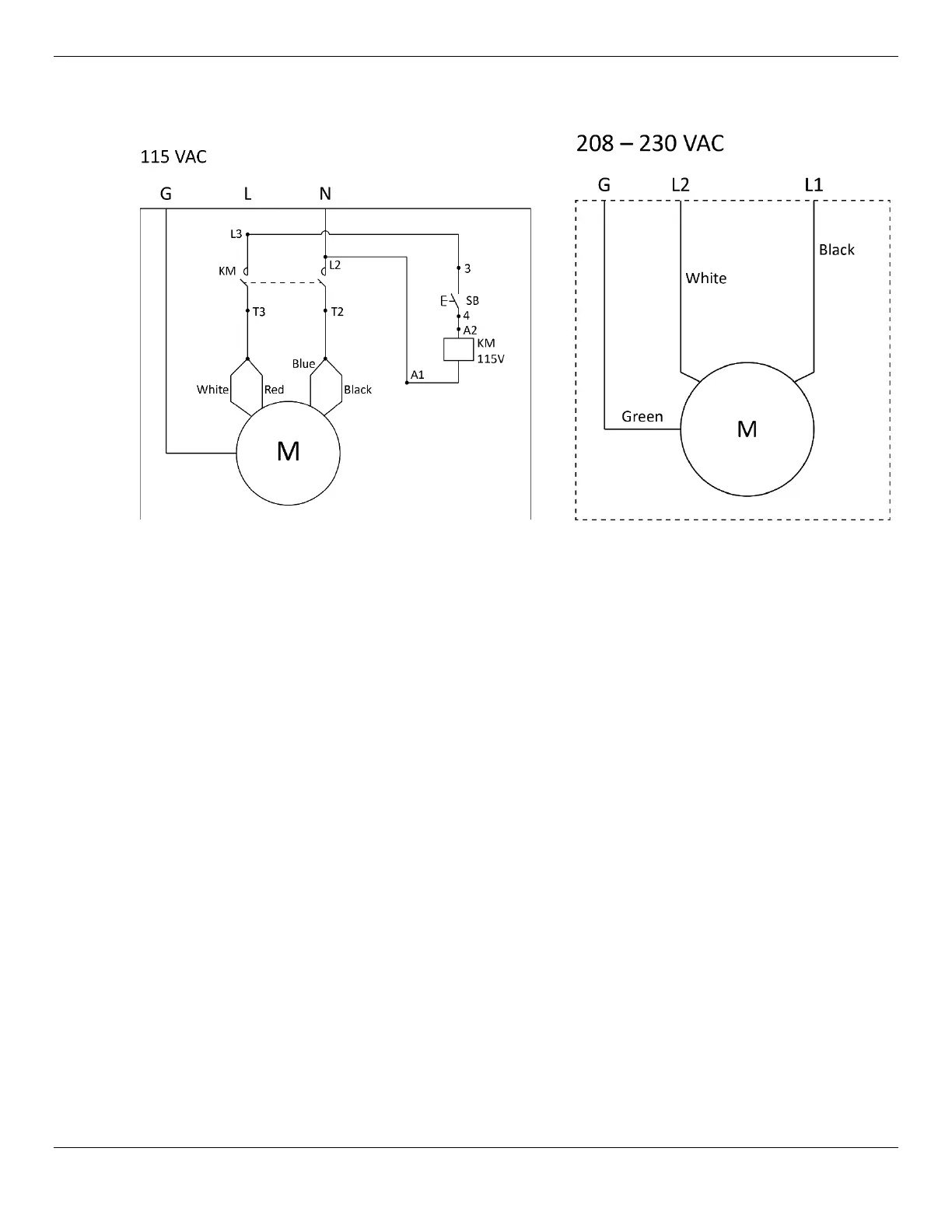

Wiring Diagrams
These wiring diagrams use the United States color codes for the three wires in the Pigtail that comes
out of the Electrical Box on the Power Unit:
• Black: Live
• White: Live
• Green: Ground
If you are using the unit in a European country, the Black – White – Green colors correspond to:
• Brown: Live
• Blue: Neutral
• Green/Yellow: Ground
Information about color code conventions in other regions and countries is available online.
⚠ WARNING All electrical work, such as hard-wiring the unit or attaching a Plug to the Power
Cord,
must be done by a licensed, certified Electrician
in accordance
with all applicable local and national electrical codes. Damage caused by improper
electrical installation may void your warranty.
