D4-9 / D4-9X Four-Post Lifts 55 P/N 5900251 — Rev. A1— August 2021
Drive-up Ramps
Your Lift comes with two Ramps, which are installed onto the Rear of the Lift so that Vehicles can drive
onto and off of the Runways.
To install the Drive-up Ramps:

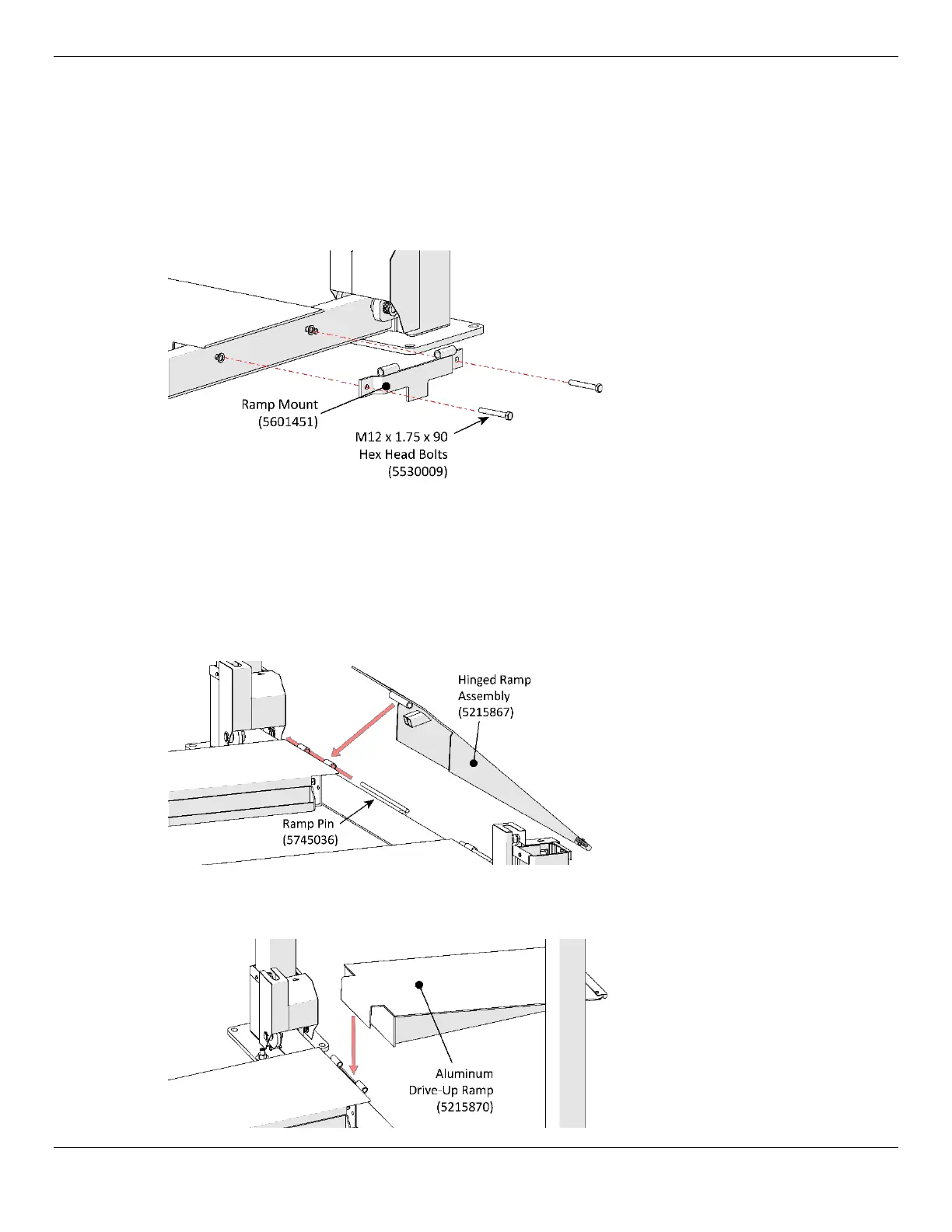

1. Install the four Ramp Mounts, one on each end of both Runways with the same hardware
used earlier to bolt the Runways to the Crosstubes.
Important: Be careful
not
to disturb the Safety Release mechanism when you install the four
Ramp Mount Pieces.
2. To install the Hinged Ramp Assembly, put it into place next to the Ramp Mount, align the holes on
the Ramp with the holes on the Ramp Mount, then slide the Ramp Pin through the holes. Attach a
rotor clip to either side of the Rod.
3. Repeat the same process for the other Ramp.
4. To install a silver, aluminum Ramp, slip the end into place in the gap between the end of the
Runway and the Ramp Mount. Repeat for the other silver, aluminum Ramp.
