DB-70 Automatic Wheel Balancer 15 P/N 5900261 — Rev. A1 — January 2021

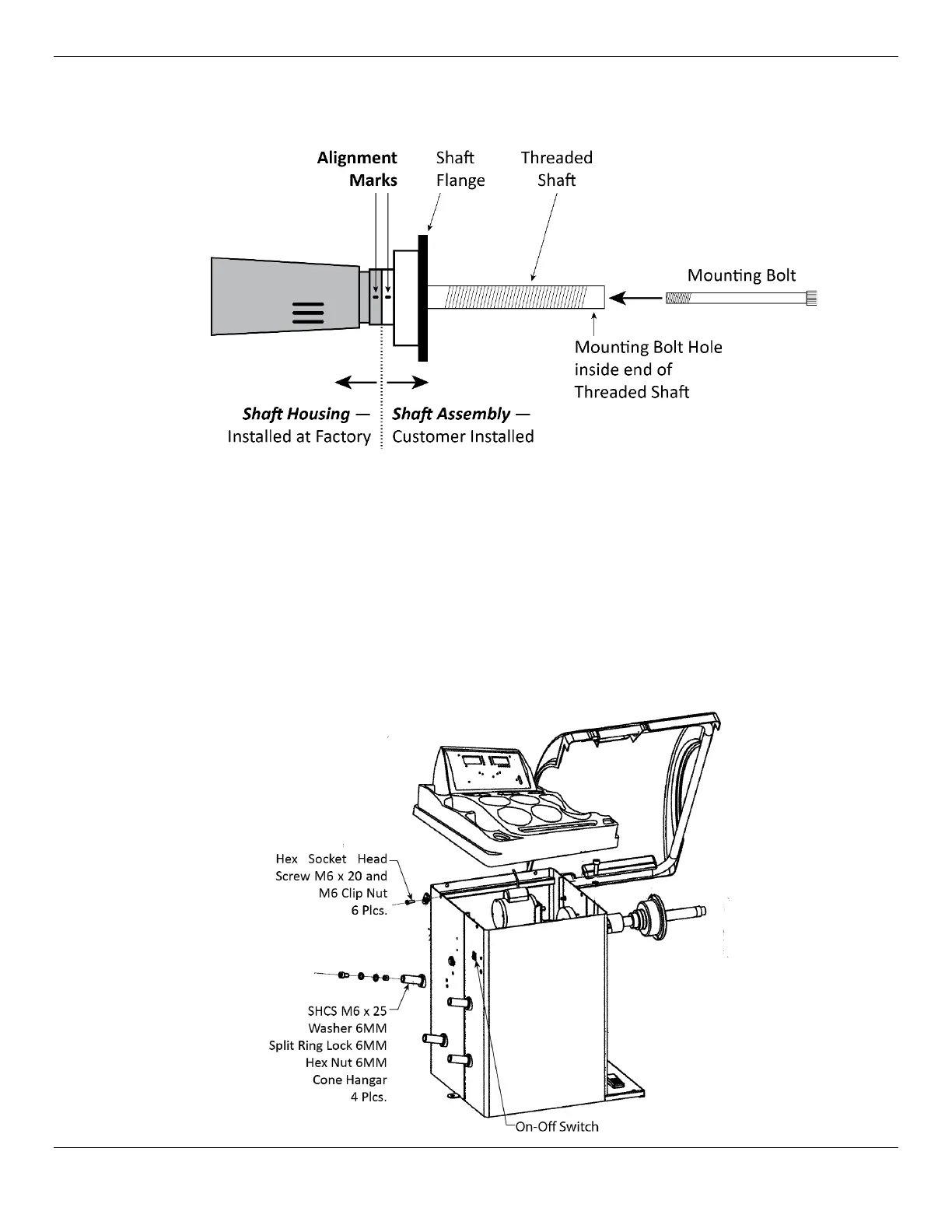

Note: The wheels to be balanced ride on a matcher Shaft that mates to a threaded shaft on the
Balancer. Both parts are precision machined to minimize shaft run-out. The shafts are
marked to ensure they are mated correctly.
Installing the Cone Hangars, Tray, and Display
The four Cone Hangars are attached with SCHS M6 x 25 with a Washer, Split-Ring Lock Washer and
M6 Hex Nut. The parts Tray and Display is integrated into one assembly. It is attached to the Balancer
cabinet through six M6 x 20 Hex Socket Head Screws and M6 Clip Nuts. The Clip Nuts slide over the
edge of the cabinet lined up with predrilled holes that match the position of the openings on the tray.
Install the six Clip Nuts on the cabinet and place the tray over the cabinet. Secure with the six M6 x 20
Hex Socket Head Screws.
⚠ CAUTION Do
NOT over-tighten the screws
.
Cracking of the plastic tray will result.
