Dannmar M-6 - Mounting the Hydraulic Power Unit

13
STEP 4
MOUNTING HYDRAULIC POWER UNIT

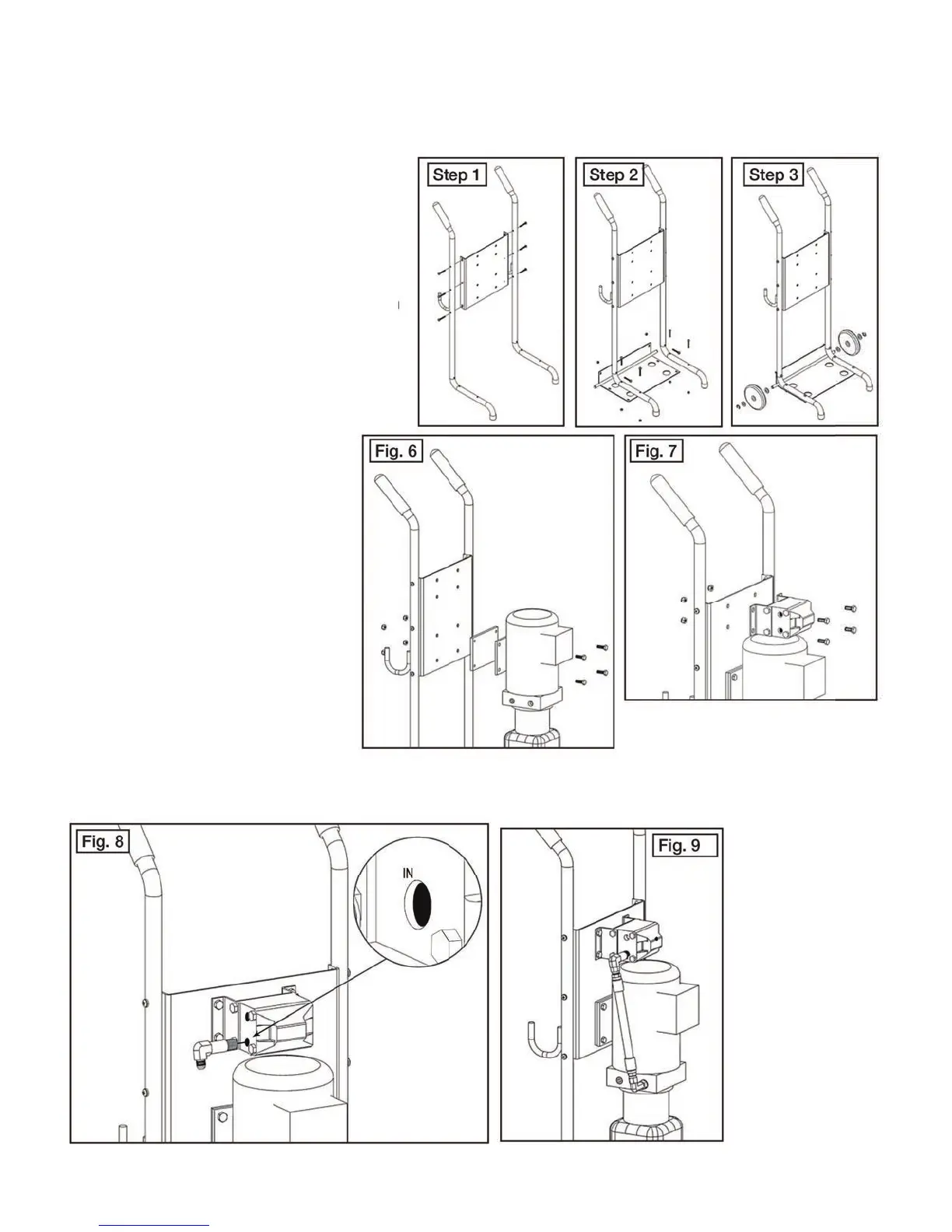

Assemble cart as shown in the gures below:
1. After installing the cart wheels, attach the
power unit and rubber power unit dampner
pad to the power unit cart using the (4)
m8x25mm hex bolts and nylon lock nuts.
S  
2. Attach the hydraulic ow divider to the power
unit cart using the (4) m8x30mm hex bolts and
nylon lock nuts supplied. S  
NOTE:
Install ow divider so that when facing it from
the front, the (2) plastic plugs are on the left
and the (1) plastic plug is on the right.*
3. Remove the plastic plug from the
lower left port stamped "IN" on the
ow divider. Install the long 90 degree
3/8 NPT tting to 9/16 JIC. Use teon
tape on pipe thread side only. When
tightening the tting, tighten by hand
rst and then using a wrench turn
approximately 3 turns past hand tight.
S  
4. Remove the plastic plug from the
power unit. Install the long 90 degree
9/16 NPT with o-ring to 9/16 JIC tting.
5 Attach the short power unit hose as
shown. DO NOT use teon tape on the
JIC ttings. S  
NOTE:
*(Flow Divider)
Pay close attention to
which side the bolts
are on. When facing
the ow divider, the
bolt heads should be
on the left side.
The lift will not work
properly if the ow
divider is installed
upside down.
