Dannmar M-6 - Parts Inventory; Assembly Diagram

8
PARTS INVENTORY
Be Sure to take complete inventory of parts prior to beginning installation.
ITEM No. PART NUMBER DESCRIPTION QTY CHECK
1 POWER UNIT 1
2 17404004 M6 INSTRUCTION MANUAL 1
3 199825 ALI LIFTING POINT GUIDE (ALI/LP) 1
4 199826 ALI SAFETY MANUAL (ALI-SM) 1
5 199827 ALI SAFETY TIPS CARD (ALI-ST) 1
6 SERIAL NUMBER TAG 1
7 199865 DANNMAR M6 DECAL 4
8 199888 ALI SAFETY STICKER SET, 2-POST LIFTS 1
9 199889 ALI OWNER OPERATION STANDARD (ANSI/ALI ALOIM) 1
10 199890 ALI CERTIFICATION STICKER (GOLD) 1
11 17107036 ROUND LIFT PAD ADAPTER ASSEMBLY 4
12 17108041 SHORT LIFT PAD EXTENSION 4
13 17151009 POST ASSEMBLY 2
14 17153014 ARM ASSEMBLY 4
15 17154001 POWER UNIT STAND ASSEMBLY 1
16 17156001 HYD. HOSE ASSEMBLY 10 x 4,520mm 2
17 17156002 HYDRAULIC HOSE ASSEMBLY 10mm x 275mm 1
18 17157026 LIFT HEAD PIN WELDMENT 4
19 17200017 5-8in X 2 HEX HEAD BOLT 10
20 17200028 M8 x 20 HEX HEAD BOLT 4
21 17200067 M8 x 30 HEX HEAD BOLT 4
22 17201010 M8 NYLON LOCK NUT 8
23 17202012 5/8in FLAT WASHER 10
24 17204030 LIFT HEAD PIN WELDMENT RELEASE PIN 4
25 17206014 3-8in NPTF FEMALE x QUICK DISCONNECT FEMALE 2
26 17206016 9-16in SAE ORB x 9-16in JIC, 90DEG ELBOW LONG WITH O-RING 1
27 17206017 9-16in JIC X 3-8in NPTF, 90DEG ELBOW LONG 1
28 17207015 POWER UNIT VIBRATION DAMPENER 1
29 17207033 C-WASHER SHIM 20
30 17207037 HYDRAULIC FLOW DIVIDER 1
31 17207094 7-8in x 3.8125in DROP IN SLEEVE ANCHOR 10
32 17401004 LABEL, SAFETY INSTRUCTIONS STICKER 1
33 17401005 LABEL, SAFETY WARNING STICKER 1
34 17401006 LABEL, CAPACITY WARNING STICKER 1
35 17401007 LABEL, SAFETY LOCK STICKER 2
36 17158151 CE ONLY, ARM FOOT GUARD, LEFT HAND 2
37 17158152 CE ONLY ARM FOOT GUARD, RIGHT HAND 2

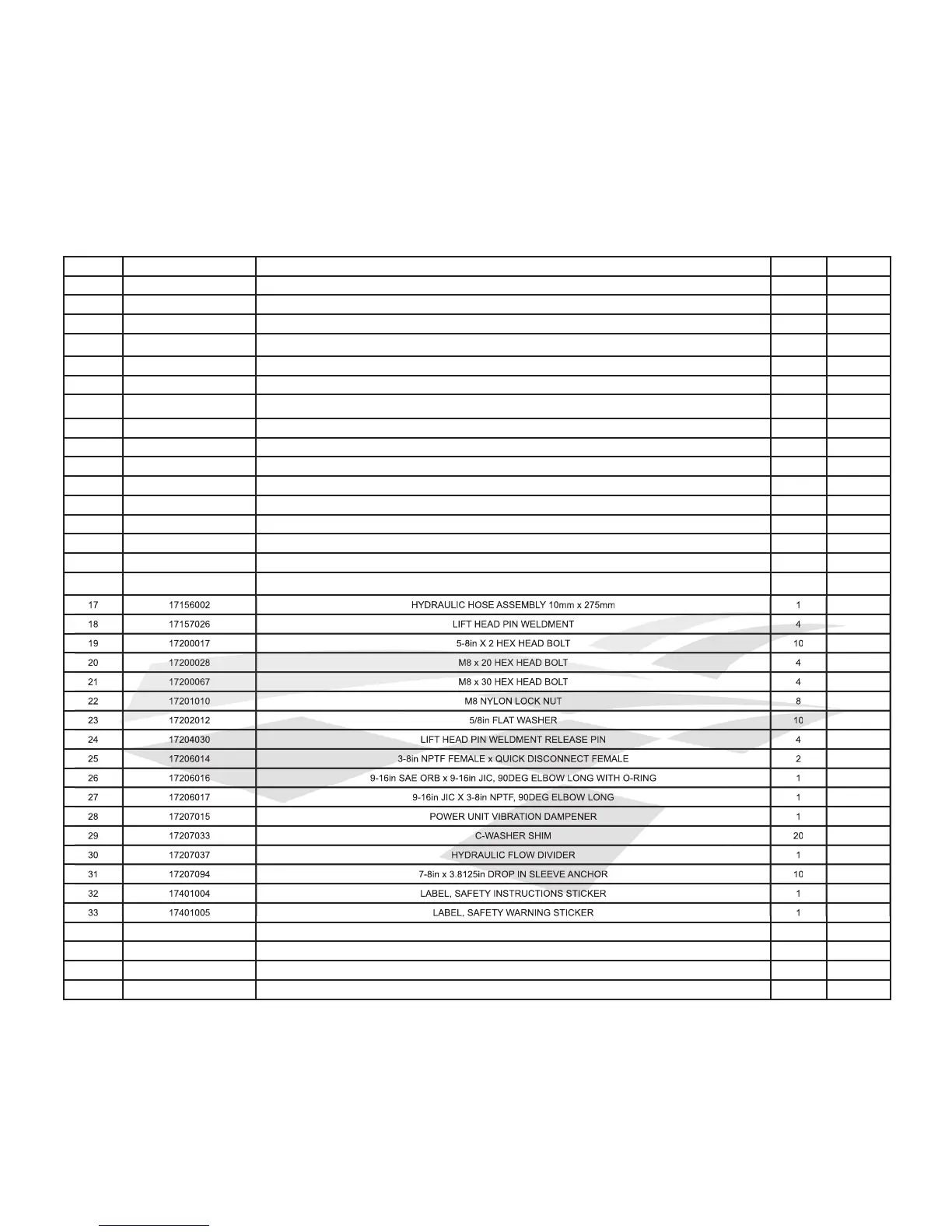

M6 ASSEMBLY
17
17156002
HYDRAULIC HOSE ASSEMBLY 10mm x 275mm
1
18
17157026
LIFT HEAD PIN WELDMENT
4
19
17200017
5-8in X 2 HEX HEAD BOLT
10
20
17200028
M8 x 20 HEX HEAD BOLT
4
21
17200067
M8 x 30 HEX HEAD BOLT
4
22
17201010
M8 NYLON LOCK NUT
8
23
17202012
5/8in FLAT WASHER
10
24
17204030
LIFT HEAD PIN WELDMENT RELEASE PIN
4
25
17206014
3-8in NPTF FEMALE x QUICK DISCONNECT FEMALE
2
26
17206016
9-16in SAE ORB x 9-16in JIC, 90DEG ELBOW LONG WITH O-RING
1
27
17206017
9-16in JIC X 3-8in NPTF, 90DEG ELBOW LONG
1
28
17207015
POWER UNIT VIBRATION DAMPENER
1
29
17207033
C-WASHER SHIM
20
30
17207037
HYDRAULIC FLOW DIVIDER
1
31
17207094
7-8in x 3.8125in DROP IN SLEEVE ANCHOR
10
32
17401004
LABEL, SAFETY INSTRUCTIONS STICKER
1
33
17401005
LABEL, SAFETY WARNING STICKER
1
