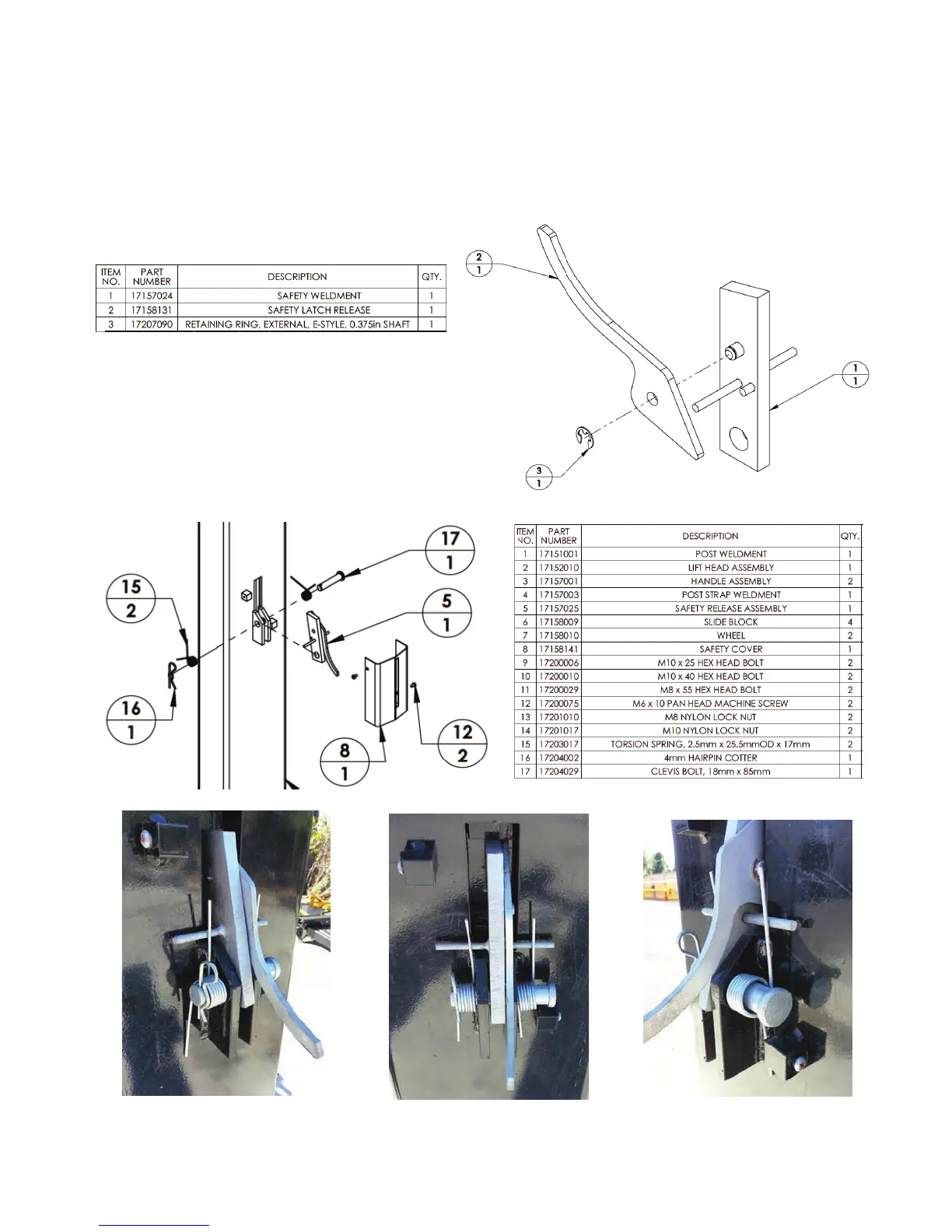

1. Insert the safety latch release on to the safety weldment pin.
2. Slide the retaining ring on to safety weldment pin.
3. Slide the safety release assembly on to the safety
release plate on the post.
4. Insert the clevis bolt thru the torsion spring.
5. Insert the clevis bolt thru both the safety weldment and
the release plate.
6. Insert the 2nd torsion spring on to the clevis bolt.
7. Attach the cotter pin to the bolt.
8. Attach the safety cover with 2 M6 screws.
