Parts Required:
1 x Side Shelf (#19)
2 x Side Shelf Handle (#20)
4 x Screw (#A)
4 x Washer (#B)
4 x Locking Washer (#C)
Installation:

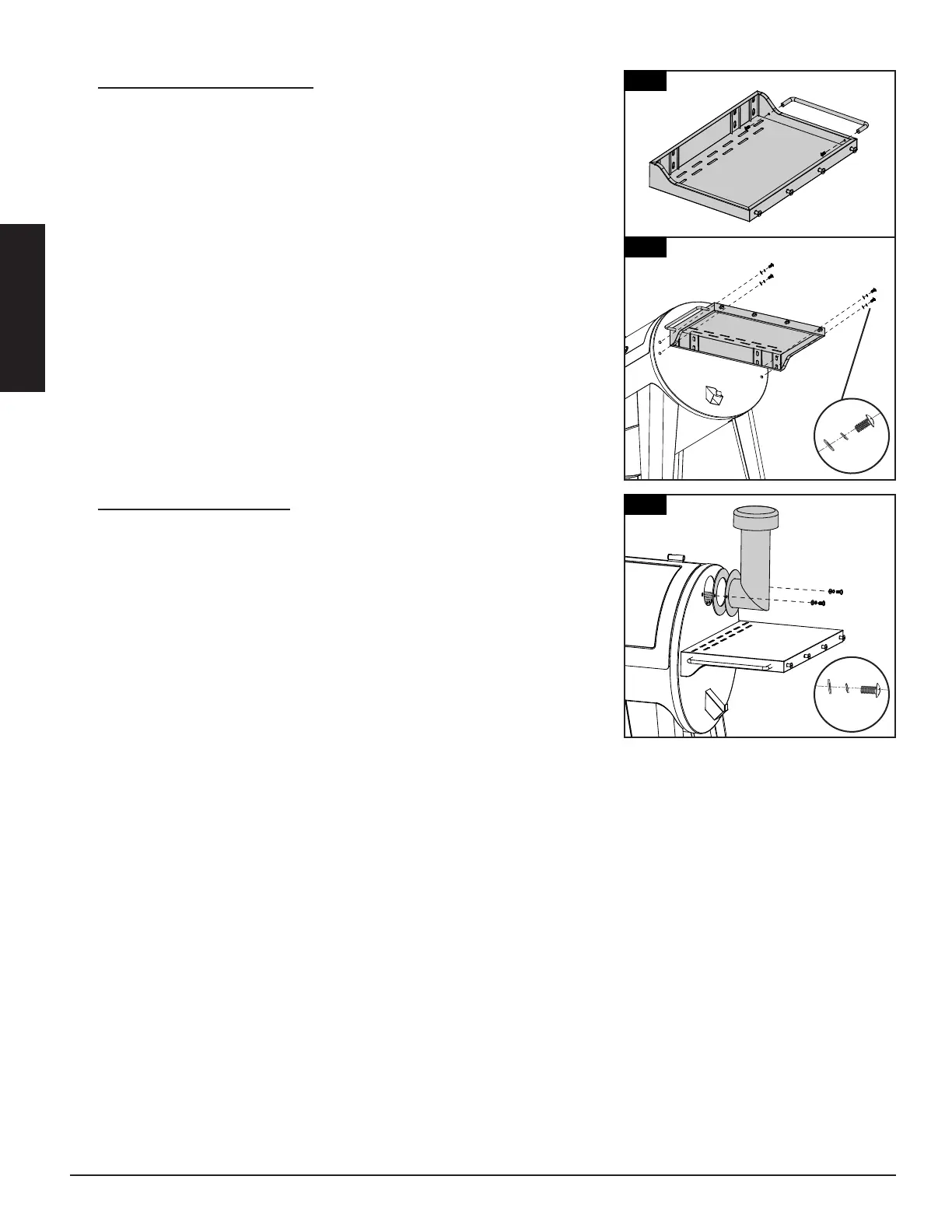

• Remove the pre-installed screws from the Side Shelf Handle. Mount
the Side Shelf Handle onto the Side Shelf using the screws previously
removed. Note 7A.
• Mount the Side Shelf onto the end of the Main Barrel using four
screws, locking washer and washers. Note 7B.
IMPORTANT: Avoid using the Side Shelf to move or lift the grill. The
weight of the unit will cause the Side Shelf to bend or break, which
is not covered by warranty.
8.
Parts Required:
1 x Chimney Gasket (#9)
1 x Chimney (#10)
2 x Screw (#A)
2 x Washer (#B)
2 x Locking Washer (#C)
Installation:
• Locate the Chimney opening on the side of the Main Barrel. From the
outside, secure the Chimney Gasket and Chimney to the side panel
using two screws, locking washers, and washers. The screw will fasten
to the pre-mounted nut on the inside of the Main Barrel.
NOTE: Ensure the chimney cap allows for air to escape.
7
7
8
20
19
9
10
To Next Page
