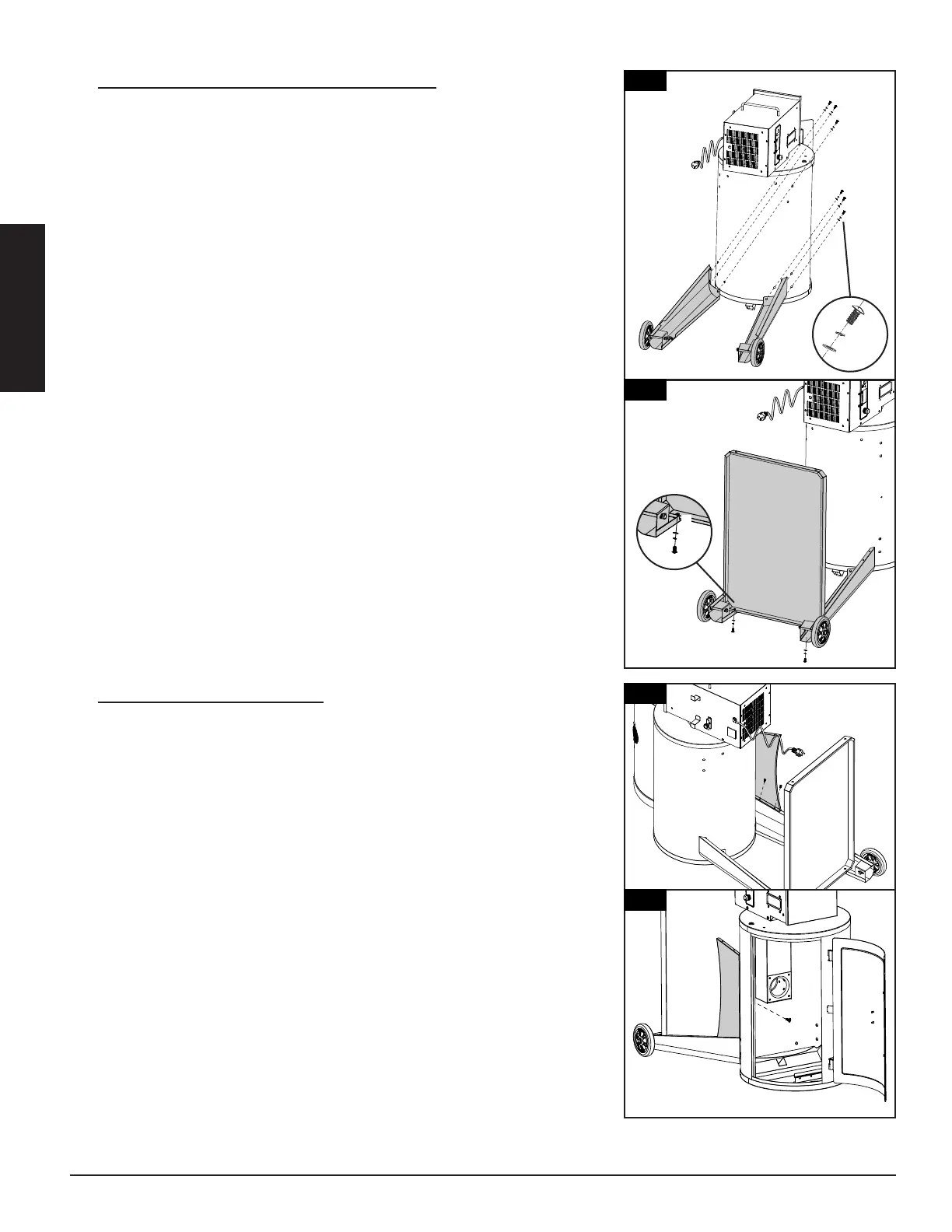

2.
Parts Required:
1 x Main Barrel (#12)
1 x Support Leg for Wheel / Front (#15)
1 x Support Leg for Wheel / Back (#16)
1 x Bottom Shelf (#23)
8 x Screw (#A)
8 x Washer (#B)
8 x Locking Washer (#C)
Installation:
• Place a piece of cardboard on the floor to prevent scratching the unit and
parts during assembly. Lay the Main Barrel on its side on the cardboard,
hopper end pointed upward.
• Mount a Support Leg with Wheel to the floor end of the Main Barrel
using three screws, locking washers, and washers, through the three
pre-drilled holes. Install screws from the inside of the Main Barrel.
Repeat installation for second Support Leg with Wheel. Note 2
• Mount the Bottom Shelf to each Support Leg using a screw, locking
washer, and washer. Ensure the flat surface of the shelf is facing up
towards the Grill Barrel. Note 2B.
3.
Parts Required:
1 x Front Panel (#21)
2 x Screw (#D)
1 x Screw (#H)
Installation:
• Secure the Front Panel to the front Support Leg of the unit using two
screws (#D). Ensure the flat side of the Support Plate is facing outwards.
Note 3A.
• Next, open the lid of the Main Barrel. Install one screw (#H), from the
inside of the Main Barrel, into the Front Panel. Note 3B.
2
2
3
3
16
12
23
21
21
15
