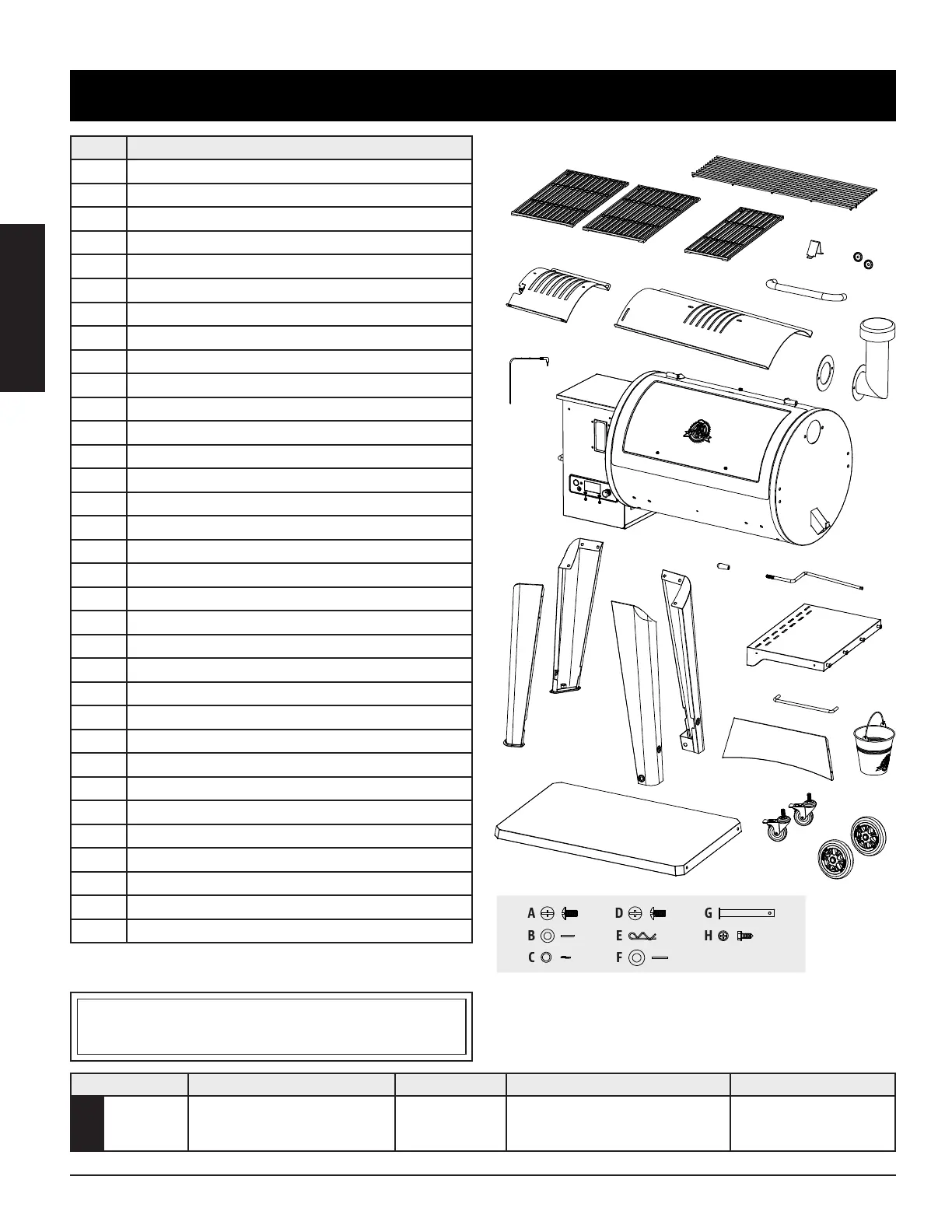

Part# Description
1 Porcelain-Coated Steel Upper Cooking Rack (x1)
2 Porcelain-Coated Steel Cooking Grid A (x2)
3 Porcelain-Coated Steel Cooking Grid B (x1)
4 Lid Stopper (x1)
5 Lid Handle Bezel (x2)
6 Lid Handle (x1)
7 Flame Broiler Slider (x1)
8 Flame Broiler Main Plate (x1)
9 Chimney Gasket (x1)
10 Chimney (x1)
11 Meat Probe (x1)
12 Main Barrel (x1)
13 Support Leg / Front (x1)
14 Support Leg / Back (x1)
15 Support Leg for Wheel / Front (x1)
16 Support Leg for Wheel / Back (x1)
17 Flame Broiler Adjusting Bar Handle (x1)
18 Flame Broiler Adjusting Bar (x1)
19 Side Shelf (x1)
20 Side Shelf Handle (x1)
21 Front Panel (x1)
22 Grease Bucket (x1)
23 Bottom Shelf (x1)
24 Locking Caster (x2)
25 Wheel (x2)
A Screw (x22)
B Washer (x22)
C Locking Washer (x22)
D Screw (x4)
E Wheel Cotter Pin (x2)
F Wheel Washer (x2)
G Wheel Axle Pin (x2)
H Screw (x1)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
PB – ELECTRIC REQUIREMENTS
110-120 V, 60 Hz, 250 W, 3-PRONG GROUNDED PLUG
MODEL ASSEMBLED (WxDxH) WEIGHT COOKING AREA TEMPERATURE RANGE
8201
1,415 680 1,325
/ 55.7 . 26.7 . 52.1 .
68.6
/ 151.2
3,824 / 592.8
2
1,655 / 256.6
2
5,479 / 849.4
2
82260° / 180500°
4
5
1
2
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
