ENGLISH
9

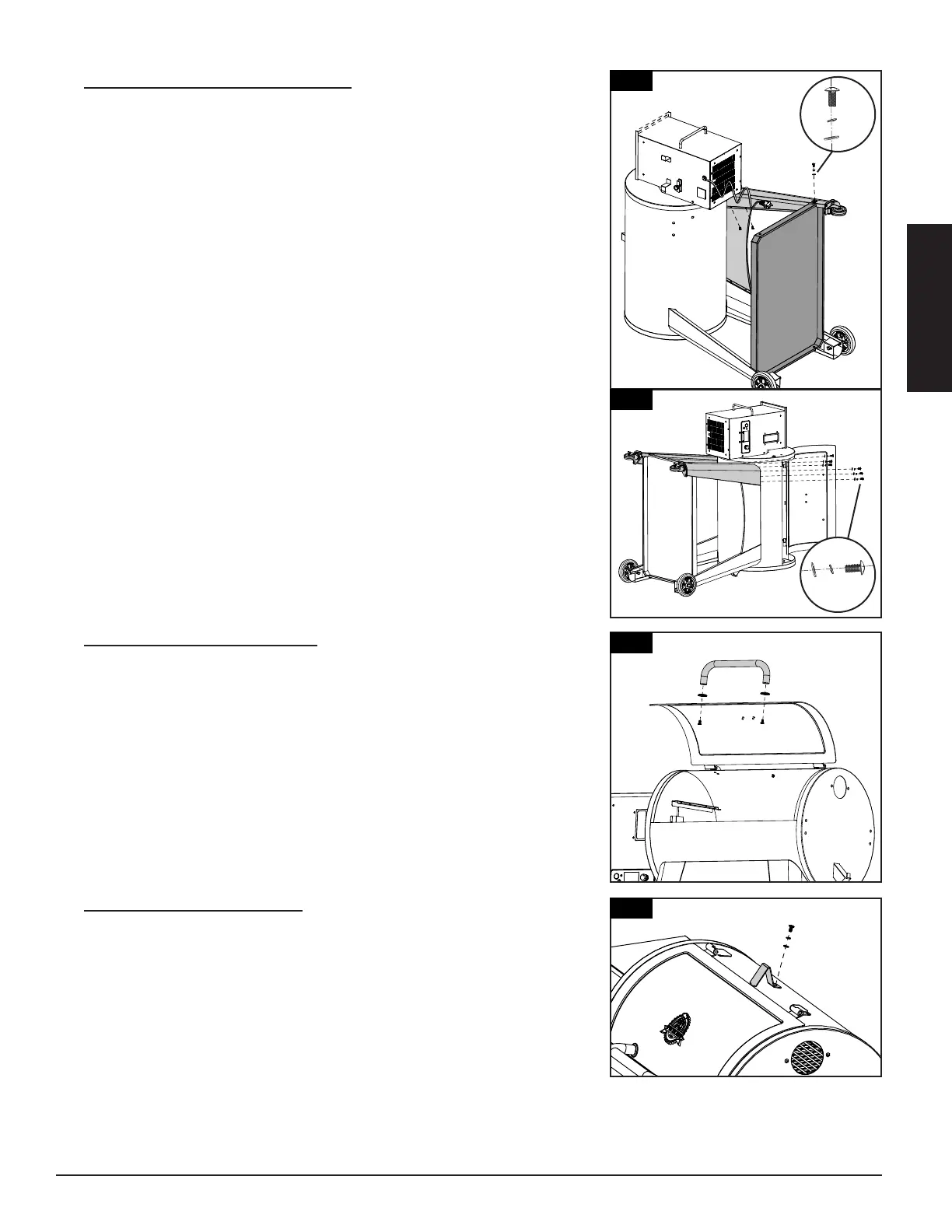

4.
Parts Required:
1 x Support Leg / Front (#13)
1 x Support Leg / Back (#14)
8 x Screw (#A)
8 x Washer (#B)
8 x Locking Washer (#C)
2 x Screw (#D)
Installation:
• Mount the front-left Support Leg to the Bottom Shelf using a screw,
locking washer, and washer. Using two screw (#D), secure the Front
Panel to the same Support Leg. Note 4A.
• Install the back-left Support Leg to the Bottom Shelf using a screw,
locking washer, and washer.
• Mount a Support Leg with Caster to the hopper end of the Main Barrel
using three screws, locking washers, and washers, through the three pre-
drilled holes. Install screws from the inside of the Main Barrel. Repeat
installation for second Support Leg with Caster. Note 4
NOTE: Once all screw for the cart are installed, then tighten secure.
• Carefully, lift the grill into an upright position.
5.
Parts Required:
2 x Lid Handle Bezel (#5)
1 x Lid Handle (#6)
Installation:
• Remove the pre-installed hardware from the Lid Handle. From inside
the Main Barrel lid, insert one screw to protrude to the outside. Add a
Bezel on the screw, then hand-tighten the screw, locking washer, and
washer (from the inside) into the Lid Handle. Repeat same installation
for other end of Lid Handle.
6.
Parts Required:
1 x Lid Stopper (#4)
Installation:
• Secure the Lid Stopper onto the top of the Main Barrel using the
pre-installed hardware on top of the Main Barrel.
5
6
4
4
13
13
14
6
4
55
