Controller CC3000

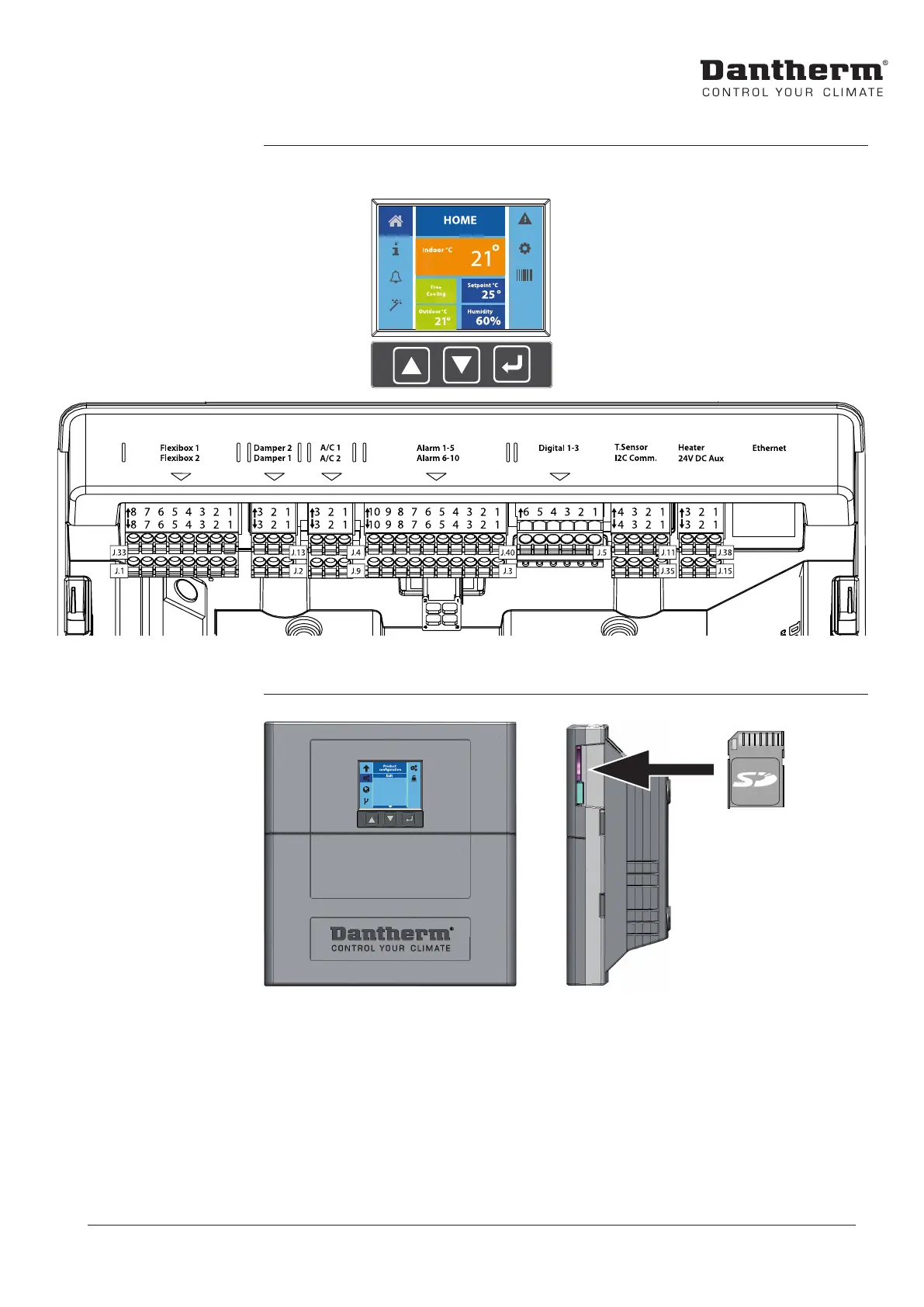

Connect controller CC3000 to Flexibox 900
System Setup
At startup insert SD card in the slot located on the side of the CC3000 controller.
This will allow you to select the cong le for your FB900.
Note: When the SD card is inserted the controller will automatically update rmware.
See instructions in display.
Until the SD card is inserted the controller will remain inactive and the buttons will not function.
For product conguration and advanced use please refer to the user manual for
the CC3000 controller.
Mount all green connectors from
extra equipment such as:
Flexibox Aircon, alarms, Temp, RH
sensors and digital in and output.
